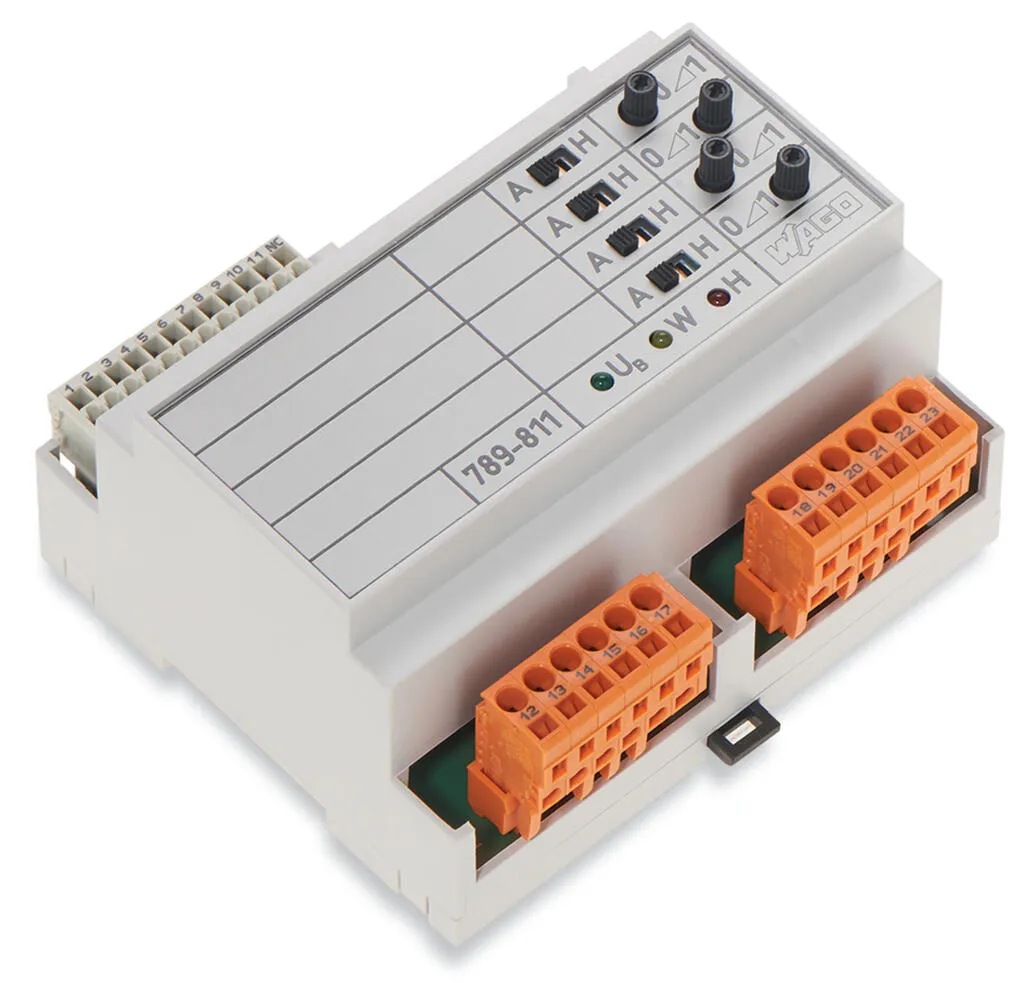

Wago 789-811
Short description:WAGO’s analog manually operated module (789‐811) monitors 0 … 3 analog inputs. Depending on both manual/automatic switch and watchdog input, 0 to 10 V set voltage is transmitted to t…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

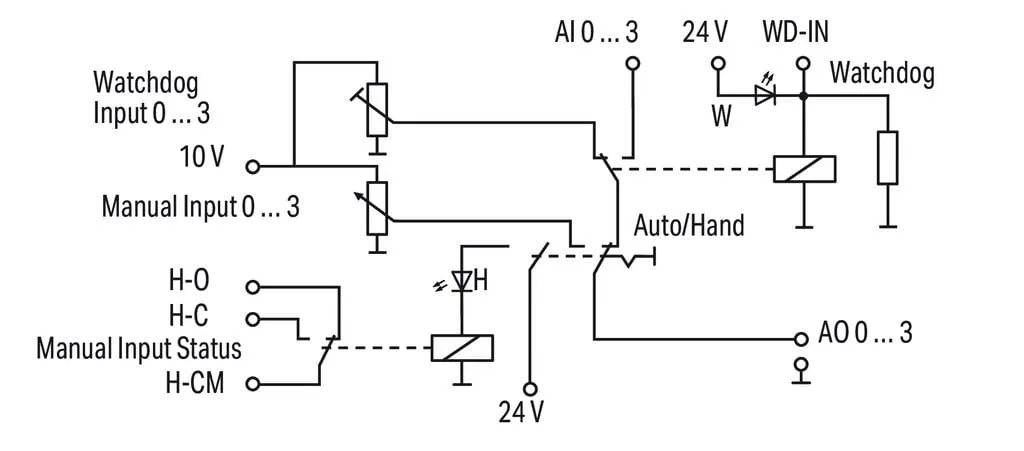

Short description:WAGO’s analog manually operated module (789‐811) monitors 0 … 3 analog inputs. Depending on both manual/automatic switch and watchdog input, 0 to 10 V set voltage is transmitted to the output.
Specification
Electrical data
| Nominal operating voltage | 24 VDC |
|---|---|
| Operating voltage range | ±20 % |
| Inputs | No. 1 / 10: 24 V; Operating voltage supply, No. 2: GND, No. 3 / 4 / 5 / 6: AI-0 … 3; Input 0 … 3; 0 … 10 V / max. 20 mA, No. 11: WD-IN; Watchdog input; 24 V / max. 20 mA |
| Outputs | No. 7: H-C; Manual operation; “closed”, No. 8: H-CM; Manual operation; “common”, No. 9: H-O; Manual operation; “open”, No. 12 / 15 / 18 / 21: DO-0 … 3-NC; Channel 0 … 3; Break contact; 250 VAC / 30 VDC; 8 A, No. 13 / 16 / 19 / 22: DO-0 … 3-CM; Channel 0 … 3; Common, No. 14 / 17 / 20 / 23: DO-0 … 3-NO; Channel 0 … 3; Make contact; 250 VAC / 30 VDC; 8 A |
Connection data - Connection 1
| Connection type | Input |
|---|---|
| Connection technology | CAGE CLAMP® |
| WAGO connector | WAGO 734 Series |
| Solid conductor | 0.08 … 1.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 1.5 mm² / 28 … 14 AWG |
| Strip length | 7 mm / 0.28 inches |
Connection data - Connection 2
| Connection type | Output |
|---|---|
| Connection technology | CAGE CLAMP® |
| WAGO connector | WAGO 231 Series |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 106 mm / 4.173 inches |
|---|---|
| Height | 90 mm / 3.543 inches |
| Depth from upper-edge of DIN-rail | 58 mm / 2.283 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Housing design | DIN-rail-mount enclosure |
Material data
| Fire load | 0.446 MJ |
|---|---|
| Weight | 199.5 g |
Environmental requirements
| Ambient temperature (operation) | 0 … +50 °C |
|---|---|
| Ambient temperature (storage) | -25 … +70 °C |
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4050821233800 |
| Customs tariff number | 85389091890 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| eCl@ss 10.0 | 27-37-12-16 |
| eCl@ss 9.0 | 27-37-12-16 |
| ETIM 9.0 | EC000225 |
| ETIM 10.0 | EC000225 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,No Exemption |
| SCIP notification number (Austria) | d2aa60b9-6f1c-454c-86e0-91c6ee9239ab |
| SCIP notification number (Belgium) | 3eae0100-20da-4ac4-aa4b-54986ee16403 |
| SCIP notification number (Bulgaria) | dafd93c3-098a-4807-b759-e7d545b3c801 |
| SCIP notification number (Czech Republic) | 5d7907ec-0372-40d8-9846-5109f9847eaf |
| SCIP notification number (Denmark) | 624662d8-2166-478f-ba9c-434f17e4a49e |
| SCIP notification number (Finland) | ffc24c65-00e2-40d1-8e4d-2aded777141c |
| SCIP notification number (France) | 5b28d66a-a56b-496b-8983-6de5f9e1c0b3 |
| SCIP notification number (Germany) | 3ea91932-d981-4641-847a-dcb152d62d08 |
| SCIP notification number (Hungary) | a733c833-2b00-4185-be20-3252b8080acd |
| SCIP notification number (Italy) | da7ee25a-d4da-4512-9441-aa3318fb1235 |
| SCIP notification number (Netherlands) | eb7e7290-8410-4cb5-9ad3-951124d201c0 |
| SCIP notification number (Poland) | 9c0079c2-097c-424b-a6b6-4beb79df994f |
| SCIP notification number (Romania) | 7dc52fc8-5119-4840-b829-91ffb611a094 |
| SCIP notification number (Sweden) | a3324302-bb0d-4e40-85b5-48fbcf721a8c |
