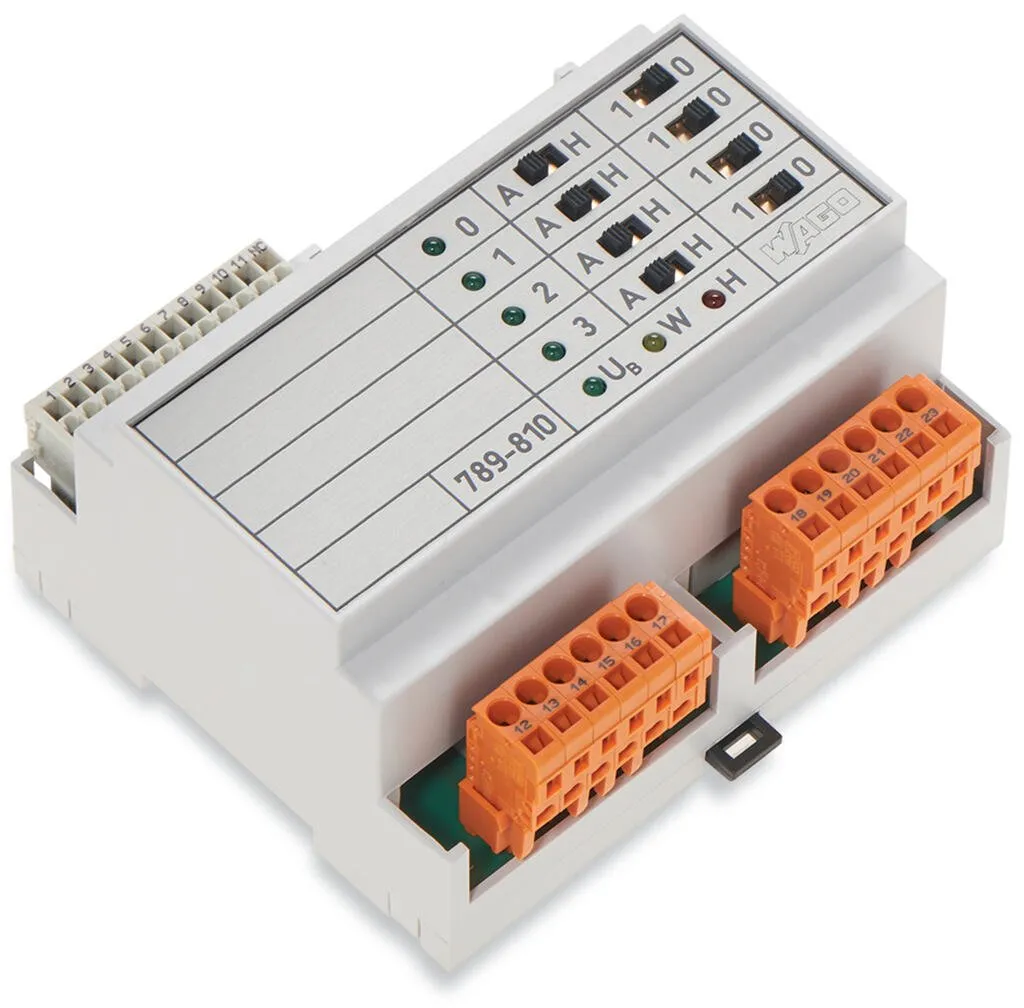

Wago 789-810
Short description:WAGO’s digital manually operated module (789‐810) monitors 0 … 3 inputs and signals their status via green LED and the power relay’s changeover contact. Depending on both the manual/…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

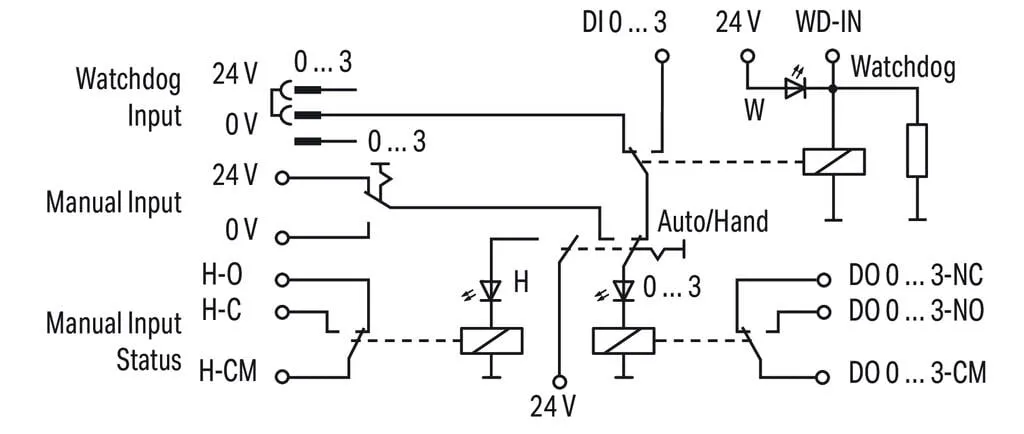

Short description:WAGO’s digital manually operated module (789‐810) monitors 0 … 3 inputs and signals their status via green LED and the power relay’s changeover contact. Depending on both the manual/automatic switch and watchdog input, the states 0 or 1 are transmitted (electrically isolated) via relay to the output.
Specification
Electrical data
| Nominal operating voltage | 24 VDC |
|---|---|
| Operating voltage range | ±20 % |
| Inputs | No. 1 / 10: 24 V; Operating voltage supply, No. 2: GND, No. 3 / 4 / 5 / 6: DI-0 … 3; Input 0 … 3; 24 V / max. 20 mA, No. 11: WD-IN; Watchdog input; 24 V / max. 20 mA |
| Outputs | No. 7: H-C; Manual operation; “closed”, No. 8: H-CM; Manual operation; “common”, No. 9: H-O; Manual operation; “open”, No. 12 / 15 / 18 / 21: GND, No. 13 / 16 / 19 / 22: AO-0 ... 3; Output 0 … 3; 0 … 10 V / max. 20 mA, No. 14 / 17 / 20 / 23: GND |
Safety and protection
| Dielectric strength, input/output (AC, 1 min) | 4 kV<sub>eff</sub> |
|---|
Connection data - Connection 1
| Connection type | Input |
|---|---|
| Connection technology | CAGE CLAMP® |
| WAGO connector | WAGO 734 Series |
| Solid conductor | 0.08 … 1.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 1.5 mm² / 28 … 14 AWG |
| Strip length | 7 mm / 0.28 inches |
Connection data - Connection 2
| Connection type | Output |
|---|---|
| Connection technology | CAGE CLAMP® |
| WAGO connector | WAGO 231 Series |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 106 mm / 4.173 inches |
|---|---|
| Height | 90 mm / 3.543 inches |
| Depth from upper-edge of DIN-rail | 58 mm / 2.283 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Housing design | DIN-rail-mount enclosure |
Material data
| Fire load | 0.446 MJ |
|---|---|
| Weight | 251.6 g |
Environmental requirements
| Ambient temperature (operation) | 0 … +50 °C |
|---|---|
| Ambient temperature (storage) | -25 … +70 °C |
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 3 (1) pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4050821108849 |
| Customs tariff number | 85389091890 |
Product Classification
| UNSPSC | 39121521 |
|---|---|
| eCl@ss 10.0 | 27-37-12-16 |
| eCl@ss 9.0 | 27-37-12-16 |
| ETIM 9.0 | EC000225 |
| ETIM 10.0 | EC000225 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8 |
|---|---|
| REACH Candidate List Substance | Diboron trioxide, Lead monoxide |
| RoHS Compliance Status | Compliant,No Exemption |
| SCIP notification number (Austria) | df219052-56bb-4183-87d8-e2b35e3b23cc |
| SCIP notification number (Belgium) | 21f77c9c-0eb9-4809-bcbb-960673659e64 |
| SCIP notification number (Bulgaria) | 1dfddab9-8630-498d-8088-097fca55ad70 |
| SCIP notification number (Czech Republic) | f2b72772-a011-461d-84ce-311cb7b5f23e |
| SCIP notification number (Denmark) | 65b78244-c6c5-40cb-9973-4b748a21b42f |
| SCIP notification number (Finland) | a4bab338-6841-478d-b105-ff91e016bce8 |
| SCIP notification number (France) | efa5fb3a-30ff-4e51-afd1-d0dd62c22df7 |
| SCIP notification number (Germany) | e4a15ca5-2783-48ed-95ee-ab4b972dd2f7 |
| SCIP notification number (Hungary) | b626e93f-4b16-4ef6-940e-6380029e7469 |
| SCIP notification number (Italy) | 866d9385-12e2-4d18-a4f7-a118965da531 |
| SCIP notification number (Netherlands) | 3265440a-c734-4e9f-a537-9475b8495eb6 |
| SCIP notification number (Poland) | 6815cb0b-f922-4310-96f7-425598800e4d |
| SCIP notification number (Romania) | 1d67fcff-98f8-430e-91a8-105f2de7ee48 |
| SCIP notification number (Sweden) | a420c231-65ec-4bbf-b858-673291b3552e |
