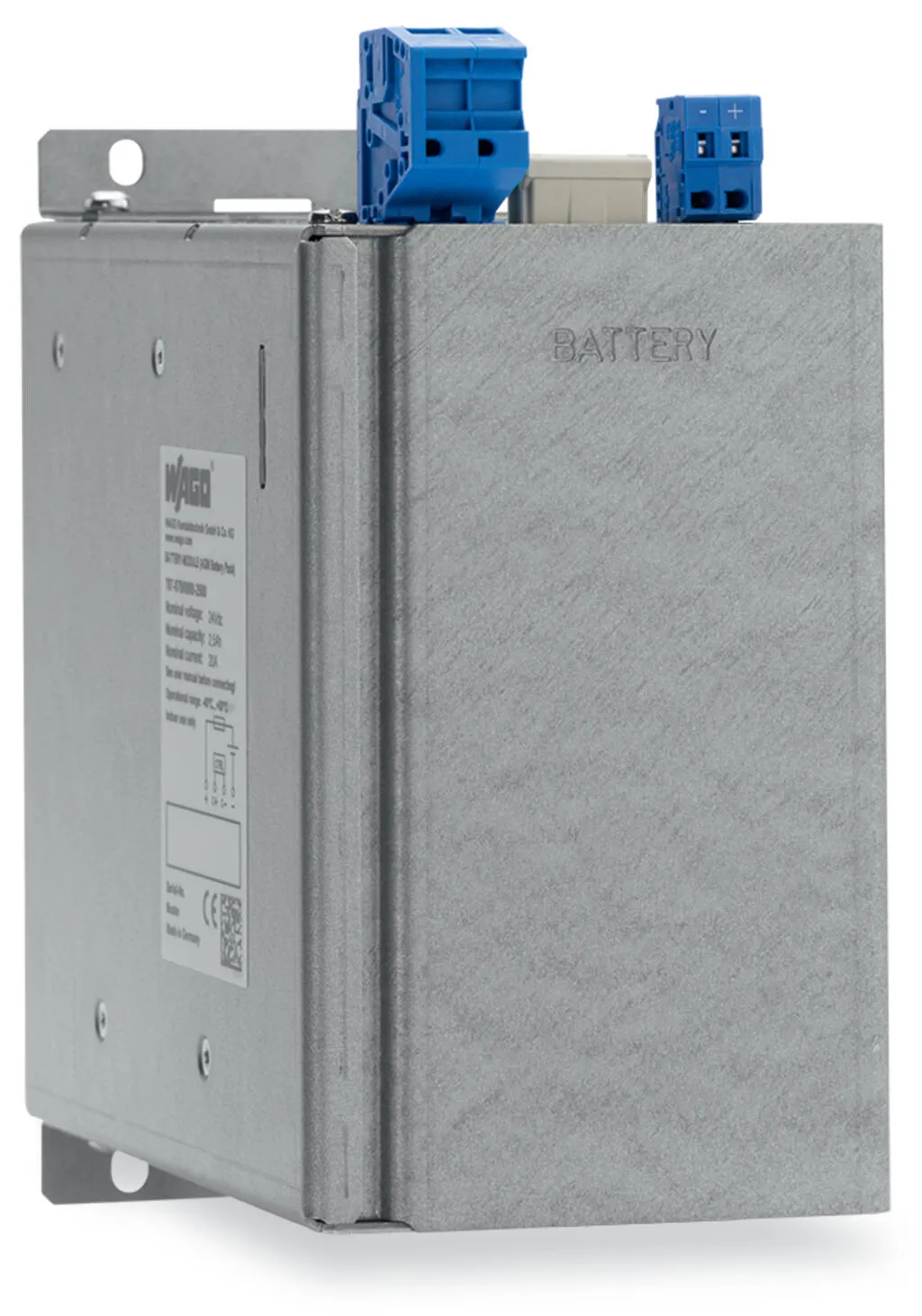

Wago 787-878/000-2500
Features:Pure lead battery module: 12 x CYCLON battery (D cell) per moduleVarious mounting optionsIntelligent battery management (battery control)Optional coated PCBPluggable connection technology (WA…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Features:Pure lead battery module: 12 x CYCLON battery (D cell) per moduleVarious mounting optionsIntelligent battery management (battery control)Optional coated PCBPluggable connection technology (WAGO MULTI CONNECTION SYSTEM)
Specification
Technical data - Input
| Nominal input voltage U<sub>i nom</sub> | 24 VDC |
|---|
Technical data - Output
| Nominal output voltage U<sub>o nom</sub> | 24 VDC |
|---|---|
| Nominal output current I<sub>o nom</sub> | 20 A |
Technical data - Energy storage systems
| Memory type | Pure lead |
|---|---|
| Battery capacity | 2.5 Ah; 60 Wh; 216 kJ |
| Charging current | ≤ 5 A |
| End-of-charge voltage | 27 VDC (25 °C) |
Technical data - Signaling and communication
| Signaling | Battery control (C+; C-) |
|---|
Technical data - Circuit protection
| Internal fuse | T 25 A |
|---|
Safety and protection
| Protection class | III |
|---|---|
| Protection type | IP20; per EN 60529 |
| Overvoltage category | I |
| Pollution degree | 2 |
| Parallel operation | Yes |
| Series operation | No |
| Service life (typ.) | 15 / 8 / 4 a (20 / 30 / 40 °C) |
Connection data
| Cable length (max.) | 3 m |
|---|
Connection data - Connection 1
| Connection type | Input/output |
|---|---|
| Connection technology | CAGE CLAMP® |
| WAGO connector | WAGO 831 Series |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Connection data - Connection 2
| Connection type | Battery control |
|---|---|
| Connection technology | CAGE CLAMP® |
| WAGO connector | WAGO 231 Series |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 86 mm / 3.386 inches |
|---|---|
| Height | 186 mm / 7.323 inches |
| Depth | 160 mm / 6.299 inches |
Mechanical data
| Mounting type | Direct screw connection, Optional DIN-rail mount (EN 60715) |
|---|
Material data
| Weight | 3535 g |
|---|
Environmental requirements
| Ambient temperature (operation) | -40 … +60 °C |
|---|---|
| Ambient temperature (storage) | -40 … +60 °C |
| Relative humidity | 5 … 80 % (no condensation permissible) |
| Self-discharge | 3 % per month at 20 °C |
| Commissioning | 6 months at 30 … 40 °C |
Standards and specifications
| Conformity marking | CE |
|---|
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4055143738101 |
| Customs tariff number | 85044083900 |
Product Classification
| UNSPSC | 26111707 |
|---|---|
| ETIM 9.0 | EC000357 |
| ETIM 10.0 | EC000357 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
