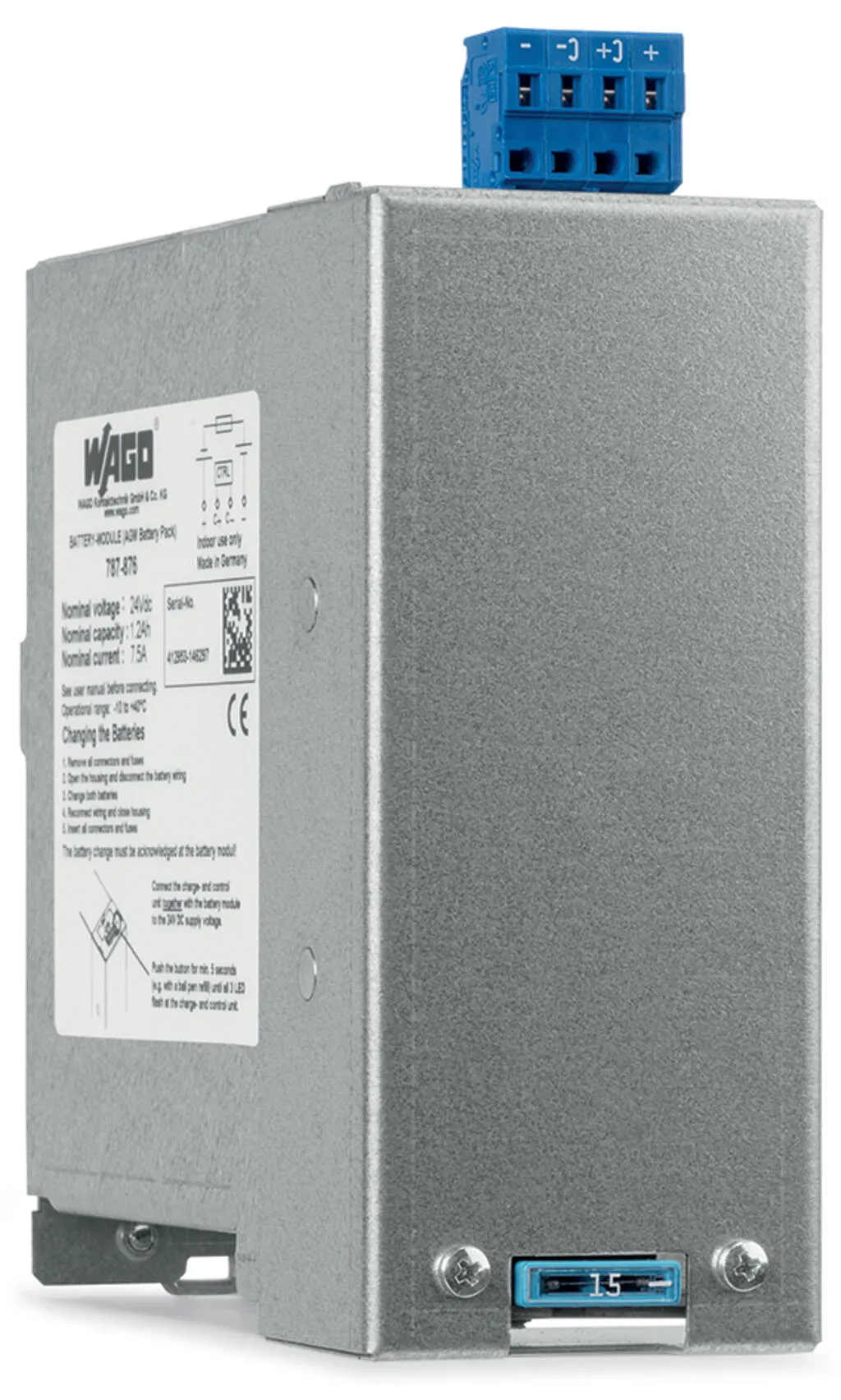

Wago 787-876
Features:Lead-acid, absorbed glass mat (AGM) battery module for uninterruptible power supply (UPS)Can be connected to both 787-870 UPS Charger and Controller and 787-1675 Power Supply with integrated…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Features:Lead-acid, absorbed glass mat (AGM) battery module for uninterruptible power supply (UPS)Can be connected to both 787-870 UPS Charger and Controller and 787-1675 Power Supply with integrated UPS charger and controllerParallel operation provides higher buffer timeBuilt-in temperature sensorDIN-35-rail mountableBattery control (from manufacturing no. 216570) detects both battery life and battery type
Specification
Notes
| Note | For parallel connection, please switch battery capacity setting to “OFF” in the UPS charger and controller. |
|---|
Technical data - Input
| Nominal input voltage U<sub>i nom</sub> | 24 VDC |
|---|
Technical data - Output
| Nominal output voltage U<sub>o nom</sub> | 24 VDC |
|---|---|
| Nominal output current I<sub>o nom</sub> | 7.5 A |
Technical data - Energy storage systems
| Memory type | Lead-acid fleece |
|---|---|
| Battery capacity | 1.2 Ah; 28.8 Wh; 103.68 kJ |
| Charging current | ≤ 0.3 A |
| End-of-charge voltage | 27 VDC (25 °C) |
Technical data - Signaling and communication
| Signaling | Battery control (C+; C-) |
|---|
Technical data - Circuit protection
| Internal fuse | T 15 A |
|---|
Safety and protection
| Protection class | III |
|---|---|
| Protection type | IP20; per EN 60529 |
| Pollution degree | 2 |
| Parallel operation | Yes |
| Series operation | No |
| MTBF | > 500,000 h (per IEC 61709) |
| Service life (typ.) | 5 / 4 / 2 a (20 / 30 / 40 °C) |
Connection data
| Cable length (max.) | 3 m (input, output, battery control) |
|---|
Connection data - Connection 1
| Connection type | Input/output/battery control |
|---|---|
| Connection technology | CAGE CLAMP® |
| WAGO connector | WAGO 231 Series |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 12 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 55 mm / 2.165 inches |
|---|---|
| Height | 153 mm / 6.024 inches |
| Depth from upper-edge of DIN-rail | 126.6 mm / 4.984 inches |
| Note (dimensions) | Height with connector |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Weight | 1980 g |
|---|
Environmental requirements
| Ambient temperature (operation) | -10 … +40 °C |
|---|---|
| Ambient temperature (storage) | -20 … +40 °C |
| Relative humidity | 5 … 80 % (no condensation permissible) |
Standards and specifications
| Conformity marking | CE |
|---|---|
| Standards/specifications | VdS‑tested battery, UL 508 |
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4050821298243 |
| Customs tariff number | 85072080900 |
Product Classification
| UNSPSC | 26111707 |
|---|---|
| eCl@ss 10.0 | 27-05-04-03 |
| eCl@ss 9.0 | 27-05-04-03 |
| ETIM 9.0 | EC000357 |
| ETIM 10.0 | EC000357 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|---|
| SCIP notification number (Austria) | 35ab2e59-bacb-4392-9887-576ff84b6de5 |
| SCIP notification number (Belgium) | e4c5e777-34dc-4ce1-8ff5-b0c8c6a29bca |
| SCIP notification number (Bulgaria) | e7bd2258-d862-47b1-b90f-94af976b385a |
| SCIP notification number (Czech Republic) | 1cadbc50-db83-42ed-9bae-9cafc51d73f8 |
| SCIP notification number (Denmark) | f08b16c7-5e67-4830-bdc2-847555db677b |
| SCIP notification number (Finland) | 4f9f0273-73f8-4987-9908-fab577177f3f |
| SCIP notification number (France) | 120ad21d-5464-4f71-8b04-64430d335c9c |
| SCIP notification number (Germany) | 72bdfcdf-039a-4903-a04f-647d7a66dbd3 |
| SCIP notification number (Hungary) | 3c7304ff-e68d-4940-a26c-031c28a3a9ba |
| SCIP notification number (Italy) | 65f71f76-8ea5-46d5-9032-31844fa05d8f |
| SCIP notification number (Netherlands) | 27b8a7a0-71f4-4953-a258-df1fb592c439 |
| SCIP notification number (Poland) | a39e1dfa-494b-46e3-ab0c-a5f0e54f8fa2 |
| SCIP notification number (Romania) | ebab566d-d028-4149-83d8-c24378ed2007 |
| SCIP notification number (Sweden) | 31dbd2a0-4e36-455c-98b1-4241963e568c |
