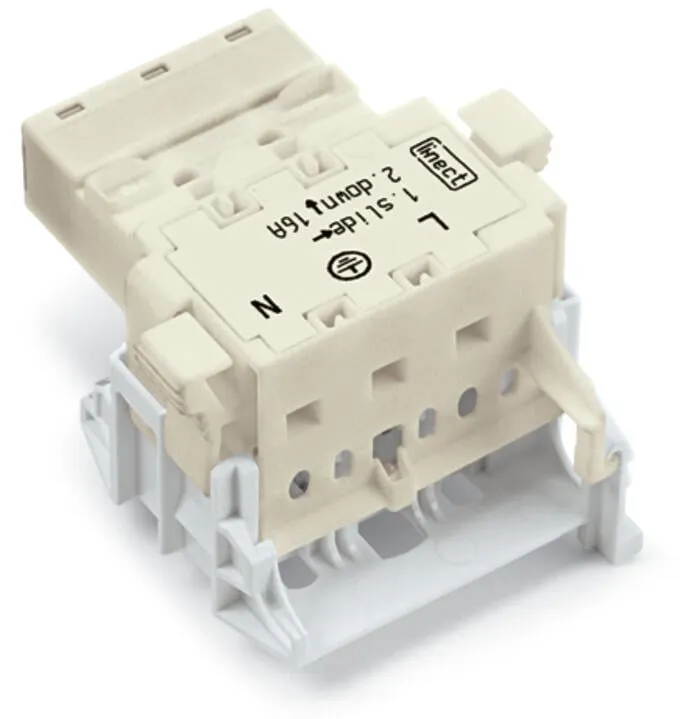

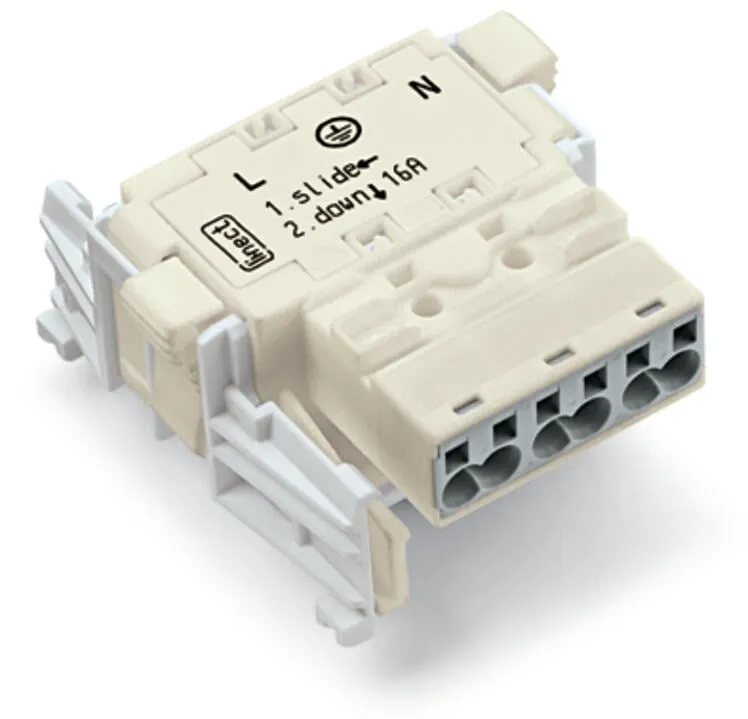

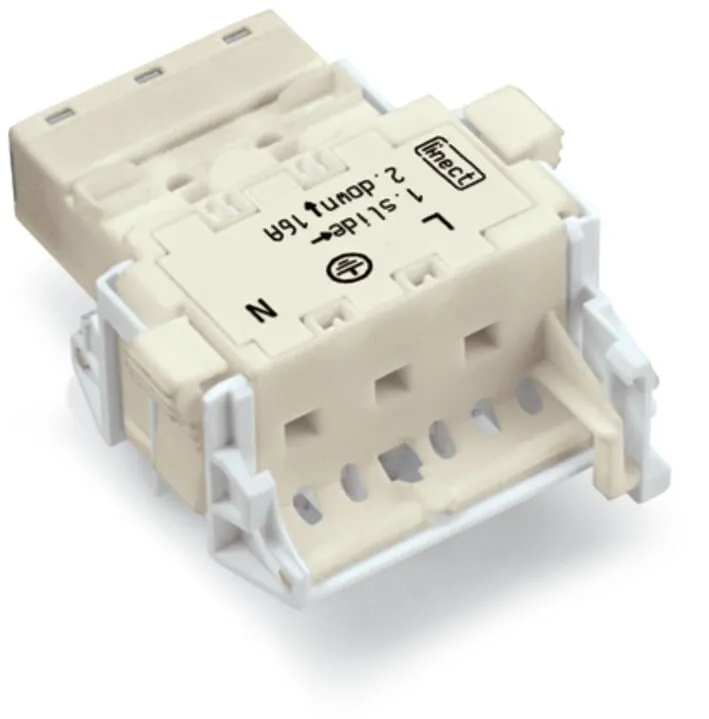

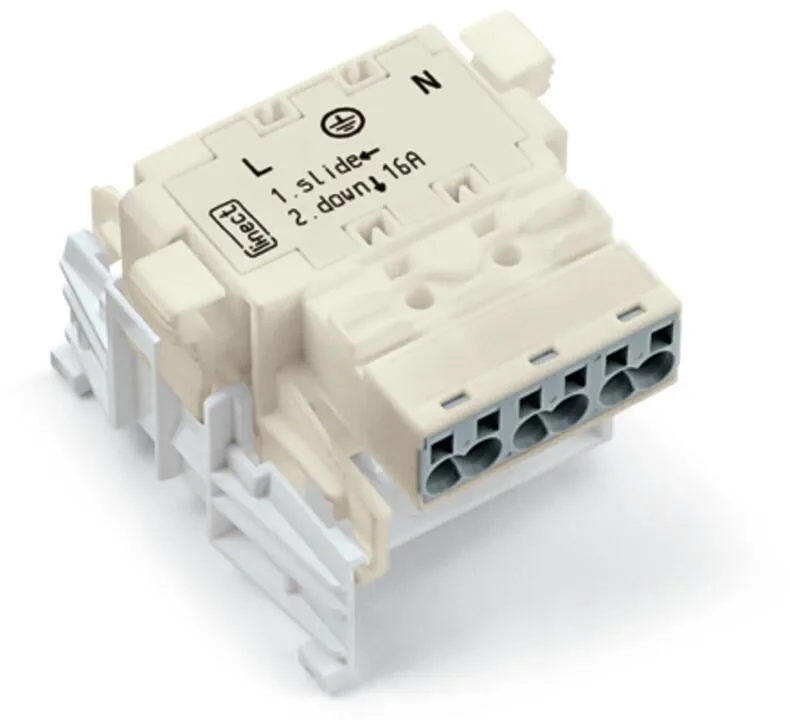

Wago 770-6229
Distribution connector WINSTA® MIDI LinectThe distribution connector from the WINSTA® MIDI product line with protection against mismating is the sophisticated solution for straightforward electrical i…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Distribution connector WINSTA® MIDI LinectThe distribution connector from the WINSTA® MIDI product line with protection against mismating is the sophisticated solution for straightforward electrical installation. WAGO pluggable installation connectors are used when criteria repeat or are planned on a defined grid, for example for installing grid lighting or flush-mount lighting. With WAGO, you benefit from a large selection of expansions for the WINSTA® product line. The color coding and mechanical coding of the field-wiring terminal block with Linect® ensure error-free installation of the individual components – including protection against mismating. The field-wiring terminal block with Linect® offers protection against contact with live components in accordance with protection type IP20 (When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)). The Linect® interface guarantees quick and easy installation of lights with various pluggable connection systems. Important parameters in the selection of a field-wiring terminal block with Linect® are the rated current and voltage: They tell us about the product’s domains of use. This product has a current rating of 25 A – as a result it is also suitable for powerful loads. Our WINSTA® MIDI product line offers maximum flexibility for the installation of applications. With its Push-in CAGE CLAMP® spring pressure connection technology, it achieves time-saving, error-free installation and offers flexibility and customization for meeting an enormous variety of installation requirements.WINSTA® MIDI solutions for your electrical installation – protected against mismating and maintenance-freeThe WINSTA® Pluggable Connection System allows pluggable electrical installation. This saves time, lowers costs, and reduces the need for servicing. Take advantage of the pluggable version of our maintenance-free spring pressure connection technology too! Plan your installation with with marking from WAGO. pre-assembled versionsquick replacement of defective units during ongoing operation
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 250 V |
| Rated impulse withstand voltage (III / 3) | 4 kV |
| Rated current | 25 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Ratings per | IEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 250 V |
| Rated impulse withstand voltage | 4 kV |
| Rated current | 25 A |
Electrical data - Ratings per IEC/EN 2
| Rated current | 16 A |
|---|
Electrical data - Ratings per UL 1977
| Rated voltage (UL 1977) | 600 V |
|---|---|
| Rated current UL 1977 | 23 A |
| Approvals per | UL 1977 |
| Rated voltage | 600 V |
| Rated current | 23 A |
Electrical data - General information
| Note on contact resistance | approx. 1 mΩ of contact resistance approx. 0.25 mΩ contact transition plug/socket |
|---|
Connection data
| Total number of potentials | 3 |
|---|---|
| PE function | Preceding PE contact |
Connection data - Connection 1
| Connection technology | Push-in CAGE CLAMP® |
|---|---|
| Nominal cross-section | 4 mm² / 12 AWG |
| Solid conductor | 0.5 … 4 mm² / 20 … 12 AWG |
| Solid conductor; push-in termination | 1.5 mm² / 16 AWG |
| Stranded conductor | 0.5 … 2.5 mm² / 20 … 14 AWG |
| Fine-stranded conductor | 0.5 … 4 mm² / 20 … 12 AWG |
| Fine-stranded conductor; with insulated ferrule | 0.25 … 1.5 mm² / 20 … 16 AWG |
| Fine-stranded conductor; with uninsulated ferrule | 0.25 … 2.5 mm² / 20 … 14 AWG |
| Fine-stranded conductor; with ferrule; push-in termination | 1.5 mm² / 16 AWG |
| Pole number | 3 |

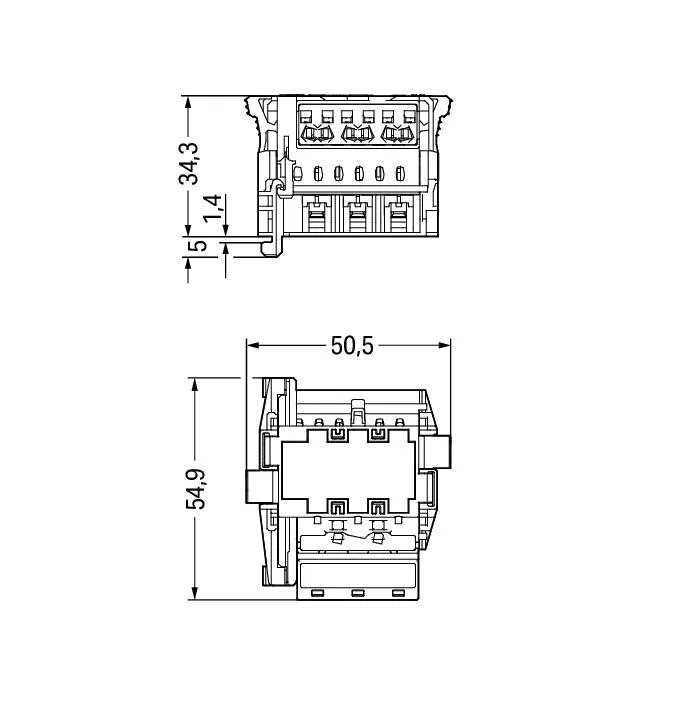

Physical data
| Pin spacing | 10 mm / 0.394 inches |
|---|---|
| Width | 50.5 mm / 1.988 inches |
| Height | 40.8 mm / 1.606 inches |
| Depth | 54.9 mm / 2.161 inches |
Mechanical data
| Technology | Linect |
|---|---|
| Variable coding | No |
| Marking | L ⏚ N |
| Potential marking | L ⏚ N |
| Retention force of a plug-in connection | When locked: > 80 N |
| Type of distribution box | Linect® T-connector |
| Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) |
Plug-in connection
| Contact type (pluggable connector) | Socket/plug |
|---|---|
| Mismating protection | Yes |
| Note on mismating protection | All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | white |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Contact material | Copper or copper alloy; surface-treated |
| Contact plating | Tin |
| Fire load | 0.606 MJ |
| Weight | 24.7 g |
Environmental requirements
| Processing temperature | -5 … +40 °C |
|---|---|
| Continuous operating temperature | -35 … +85 °C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Commercial data
| Product Group | 20 (Winsta) |
|---|---|
| PU (SPU) | 25 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4050821621928 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121421 |
|---|---|
| eCl@ss 10.0 | 27-44-06-02 |
| eCl@ss 9.0 | 27-44-06-02 |
| ETIM 9.0 | EC002566 |
| ETIM 10.0 | EC002566 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 131651-65-5, 144317-44-2, 220133-51-7, 220689-12-3, 25628-08-4, 29420-49-3, 375-73-5, 503155-89-3, 507453-86-3, 68259-10-9 |
|---|---|
| REACH Candidate List Substance | Perfluorobutane sulfonic acid (PFBS) and its salts |
| RoHS Compliance Status | Compliant,No Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | 02afc781-ef37-4d62-8a5c-f7b15495631e |
| SCIP notification number (Belgium) | d042fa8d-c877-4e5a-a196-bbd1a9718513 |
| SCIP notification number (Bulgaria) | aacac945-6357-4fb4-a3b1-f384f97debd5 |
| SCIP notification number (Czech Republic) | d04c5957-0b8a-4a8d-9f41-9165a26d9536 |
| SCIP notification number (Denmark) | 742df261-62e8-45f6-89c7-92ac02d9fccf |
| SCIP notification number (Finland) | b406a6c7-ca9a-460e-aa08-904a5c712051 |
| SCIP notification number (France) | 1d29337f-30ea-4d06-b401-797c5d686671 |
| SCIP notification number (Germany) | f4a2d167-c1fd-4bd2-969c-8572593911c0 |
| SCIP notification number (Hungary) | 5fe139d3-423c-4c54-b496-21901d53ee1a |
| SCIP notification number (Italy) | 3472d882-abbf-4c60-81bb-5a4d8c603088 |
| SCIP notification number (Netherlands) | 23db735e-d383-476f-b263-ac8226172a18 |
| SCIP notification number (Poland) | b70e8e52-2a74-48f8-8243-e5f9ec1379ab |
| SCIP notification number (Romania) | 89185805-a522-4cb7-a317-36cf17bbb719 |
| SCIP notification number (Sweden) | 7f455865-9229-4e4c-b754-2ff67fbd3cb0 |
Other
| Technology | Linect |
|---|
