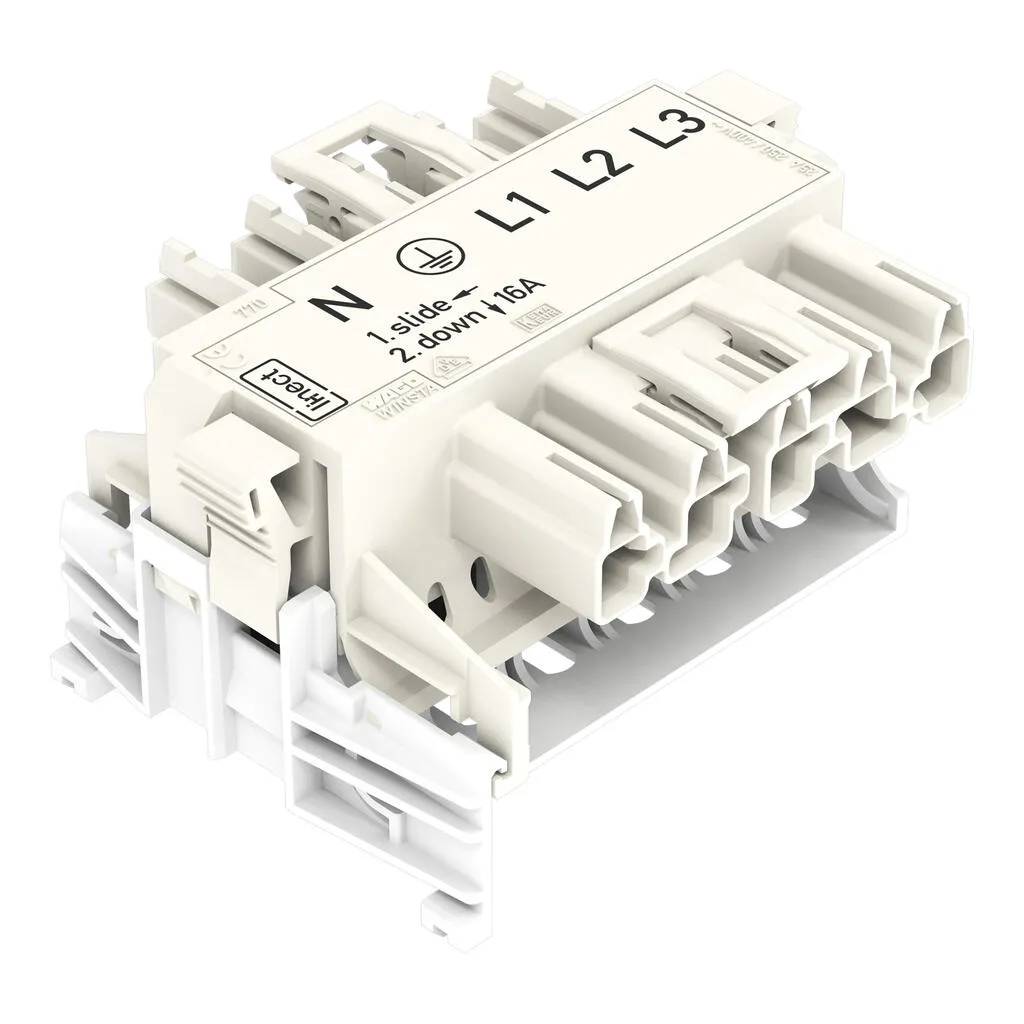

Wago 770-6225
Distribution connector WINSTA® MIDI with protection type IP20The WINSTA® MIDI distribution connector rated current 25 A allows installation of solid and fine-stranded conductors. Whether on PCBs, in c…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Distribution connector WINSTA® MIDI with protection type IP20The WINSTA® MIDI distribution connector rated current 25 A allows installation of solid and fine-stranded conductors. Whether on PCBs, in control cabinets or for connecting lights – pluggable installation connectors from WAGO allow you to make connections according to various requirements in next to no time. The coding options reduce installation errors, allowing fast, maintenance-free wiring of all components. The pluggable installation connector is protected against ingress by solid objects in accordance with protection type IP20 (When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!)). The Linect® interface guarantees straightforward installation of lights with various pluggable connection systems. The WINSTA® MIDI pluggable installation connector with A coding in white or black is normally used for general mains applications in power distribution. The rated current and voltage are important criteria for selecting a pluggable installation connector: They provide information about possible domains of use and applications. This product has a current rating of 25 A – therefore it is suitable for powerful loads. WINSTA® MIDI with Push-in CAGE CLAMP® spring pressure connection technology is used in a broad range of individual products you can use for quick, easy, flexible, and secure electrical installation.Lower costs through fast commissioning and elimination of service expenses – solutions from WINSTA® MIDIWINSTA® is the pluggable connection system that is optimally tailored to the strict requirements of electrical installation. It ensures fast, secure and, above all, error-free installation of components and cables. Take advantage of the pluggable version of our maintenance-free spring pressure connection technology too! Plan your installation with with protection against mismating from WAGO. protection against mismating eliminates errorssimple circuitswith A coding for a large number of usesready to install and use immediatelyrapid, structured electrical installation
Specification
Electrical data - Ratings per IEC/EN
| Ratings per | IEC/EN 60664-1 |
|---|---|
| Nominal voltage (III/3) | 400 V |
| Rated impulse withstand voltage (III / 3) | 6 kV |
| Rated current | 25 A |
| Legend (ratings) | (III / 3) ≙ Overvoltage category III / Pollution degree 3 |
| Ratings per | IEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1 |
| Overvoltage category | III / III / II |
| Pollution degree | 3 / 2 / 2 |
| Nominal voltage | 400 V |
| Rated impulse withstand voltage | 6 kV |
| Rated current | 25 A |

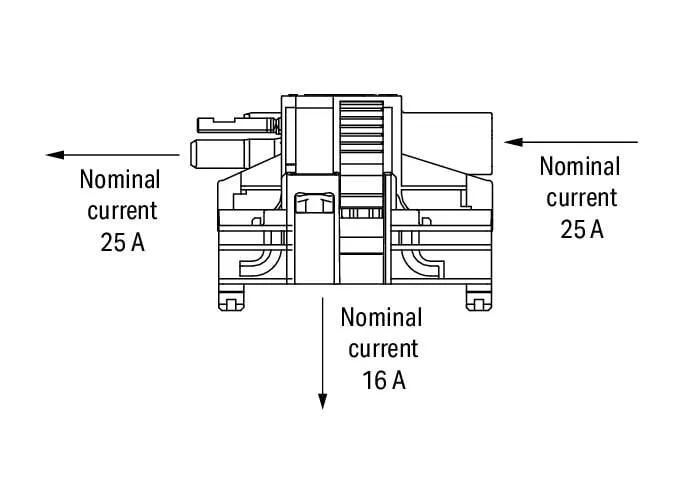

Electrical data - Ratings per IEC/EN 2
| Rated current | 16 A |
|---|
Electrical data - Ratings per UL 1977
| Note for the US market | Some versions may also be used for current interruption in accordance with the UL certificate in select applications with currents below 16 A and voltages up to 600 V. For further information, please contact your local sales office. |
|---|---|
| Rated voltage (UL 1977) | 600 V |
| Rated current UL 1977 | 23 A |
| Approvals per | UL 1977 |
| Rated voltage | 600 V |
| Rated current | 23 A |
Electrical data - General information
| Note on contact resistance | approx. 1 mΩ of contact resistance approx. 0.25 mΩ contact transition plug/socket |
|---|
Connection data
| Total number of potentials | 5 |
|---|---|
| PE function | Preceding PE contact |
Connection data - Connection 1

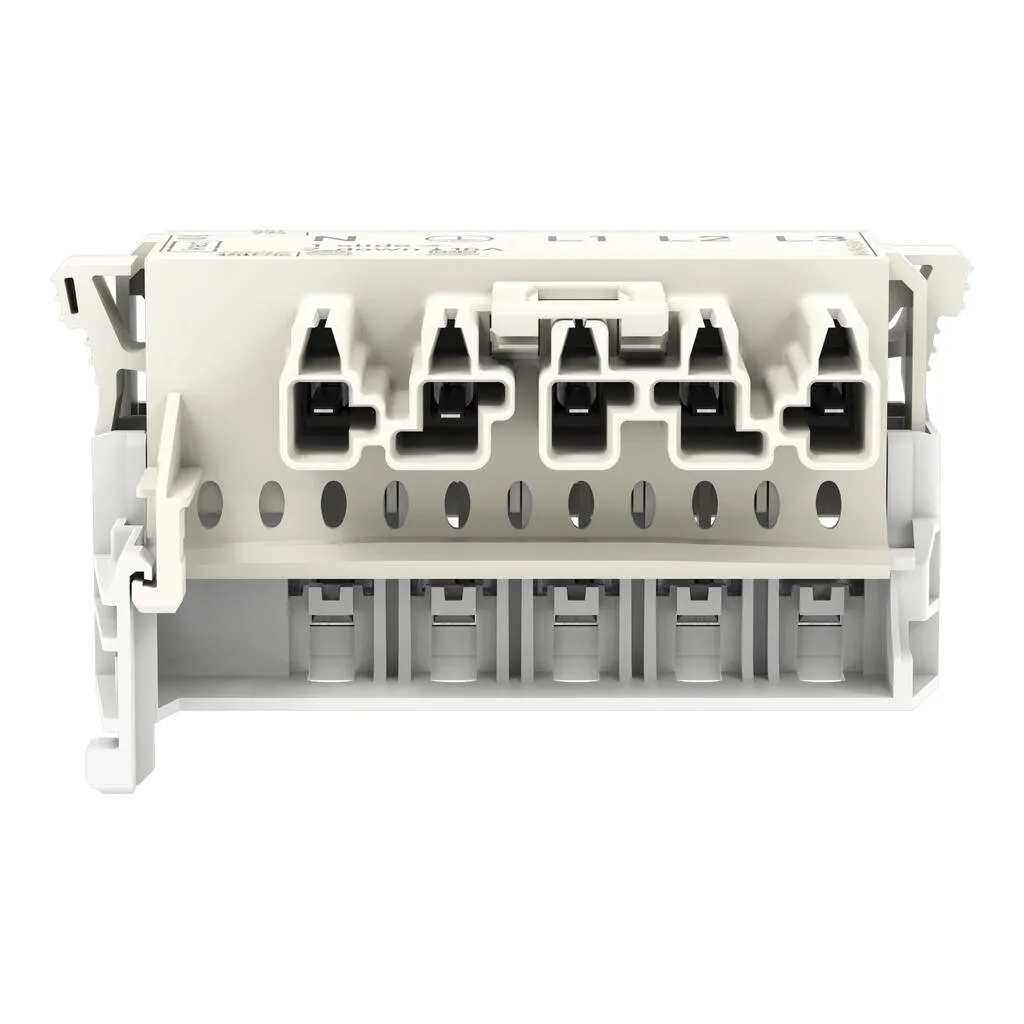

| Pole number | 5 |
|---|

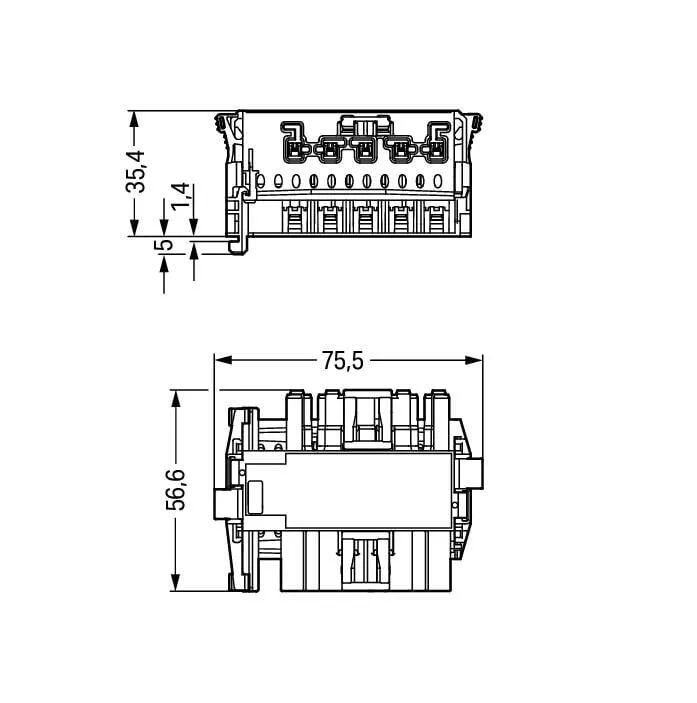

Physical data
| Pin spacing | 10 mm / 0.394 inches |
|---|---|
| Width | 75.5 mm / 2.972 inches |
| Height | 40.5 mm / 1.594 inches |
| Depth | 56.6 mm / 2.228 inches |
Mechanical data
| Technology | Linect |
|---|---|
| Use | General mains applications |
| Coding | A |

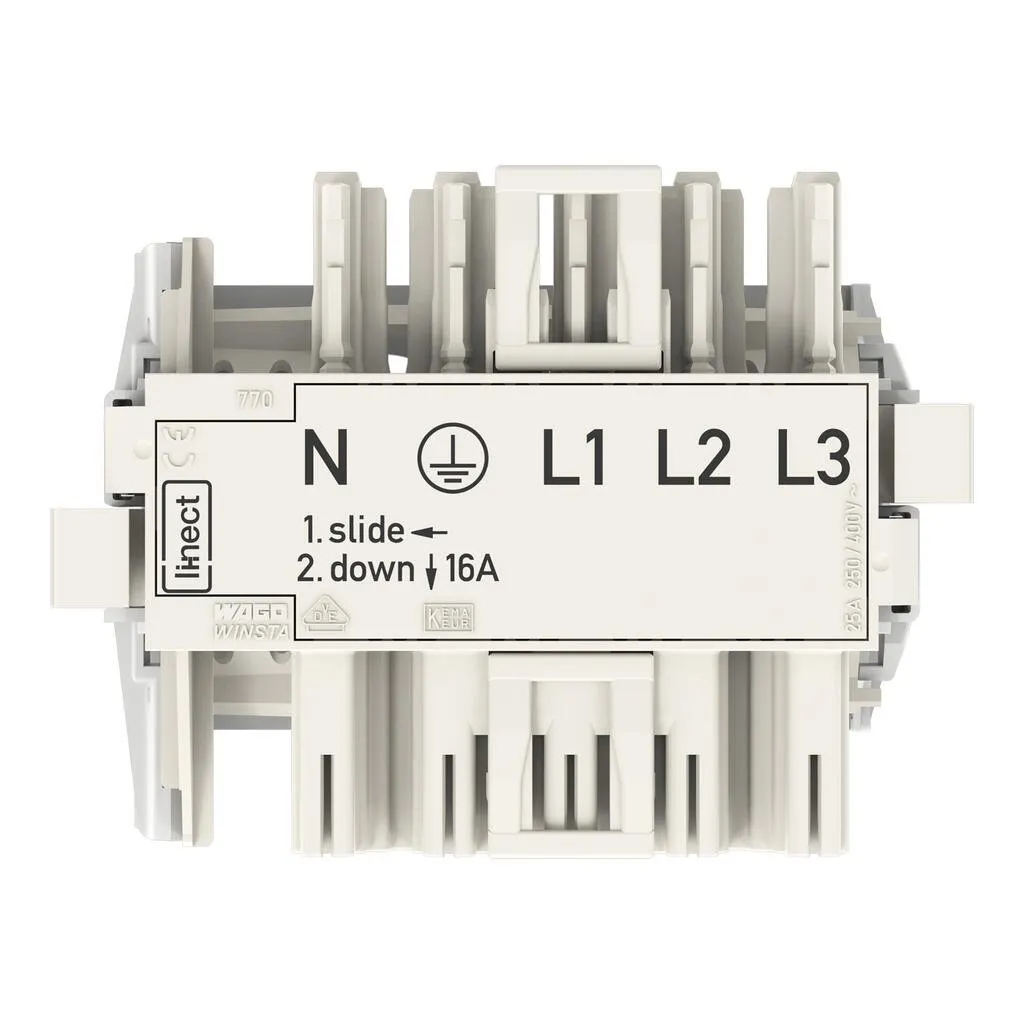

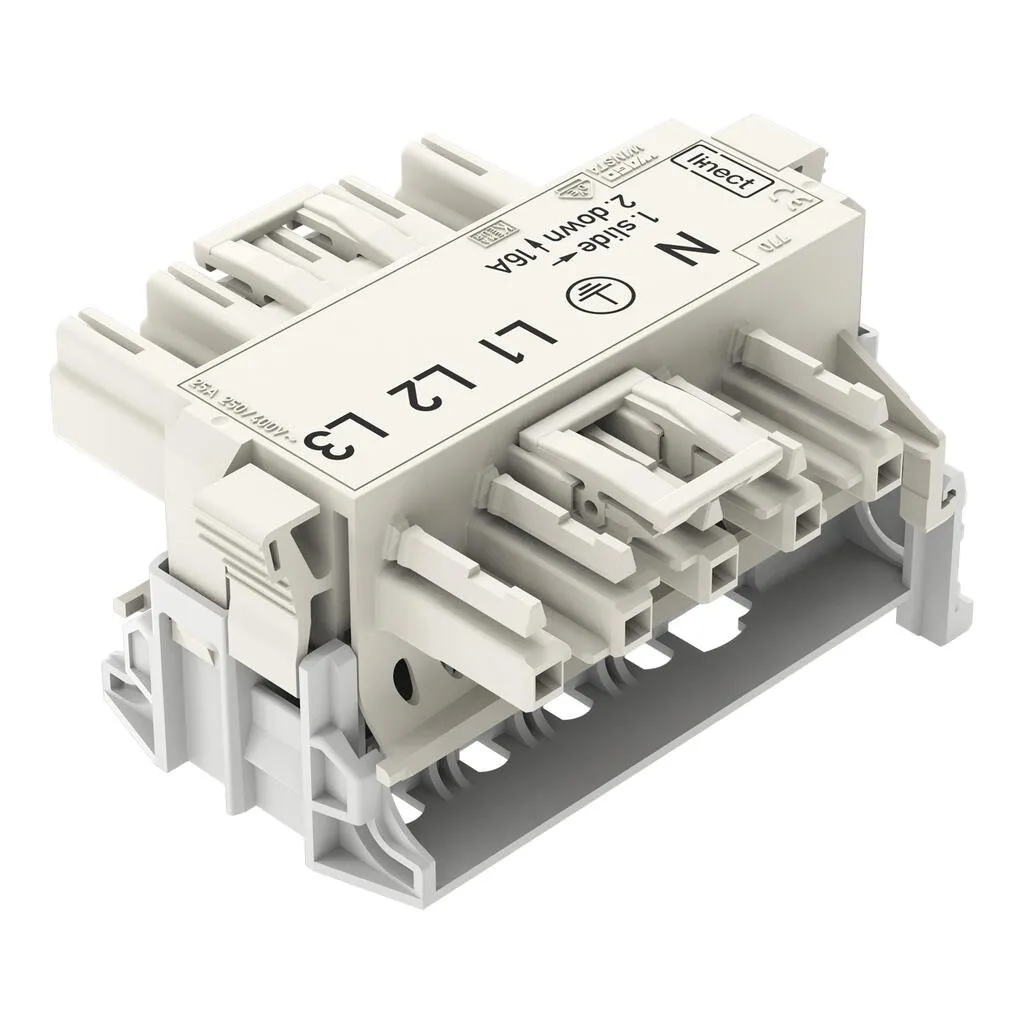

| Marking | N ⏚ L1 L2 L3 |
| Potential marking | N ⏚ L1 L2 L3 |
| Mating force of a plug-in connection | approx. 20 … 70 N (depending on pole number) |
| Retention force of a plug-in connection | When locked: > 80 N |
| Unmating force of a plug-in connection | Unlocked: approx. 20 … 70 N (depending on pole number) |
| Number of mating cycles | 200, without resistive load |
| Type of distribution box | Linect® T-connector |
| Protection type | IP20; When mated: IP2xC (These compact connectors are not designed for use in open, easily accessible areas!) |
Plug-in connection
| Contact type (pluggable connector) | Socket/plug |
|---|---|
| Mismating protection | Yes |
| Note on mismating protection | All WINSTA® components are 100% protected against mismating when:a.) plugging different numbers of polesb.) plugging while rotated 180 c.) plugging while laterally staggeredd.) plugging one pole |
| Locking lever | yes |
| Locking of plug-in connection | locking lever |
| Note on locking system | All connectors for mounted installations (snap-in versions for lighting fixtures or devices, all types of PCB and distribution connectors) are factory-equipped with locking levers to ensure plugs and sockets are securely locked. Additional locking levers are only required for flying leads (plug/socket). |
| Number of locking levers | 2 |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | white |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Contact material | Copper or copper alloy; surface-treated |
| Contact plating | Tin |
| Fire load | 0.955 MJ |
| Weight | 42.2 g |
Environmental requirements
| Processing temperature | -5 … +40 °C |
|---|---|
| Continuous operating temperature | -35 … +85 °C |
| Note on continuous operating temperature | Insulating parts for temperatures ≤ 105 °C |
Commercial data
| Product Group | 20 (Winsta) |
|---|---|
| PU (SPU) | 20 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4050821654278 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121421 |
|---|---|
| eCl@ss 10.0 | 27-44-06-02 |
| eCl@ss 9.0 | 27-44-06-02 |
| ETIM 9.0 | EC002566 |
| ETIM 10.0 | EC002566 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 131651-65-5, 144317-44-2, 220133-51-7, 220689-12-3, 25628-08-4, 29420-49-3, 375-73-5, 503155-89-3, 507453-86-3, 68259-10-9 |
|---|---|
| REACH Candidate List Substance | Perfluorobutane sulfonic acid (PFBS) and its salts |
| RoHS Compliance Status | Compliant,No Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | a5294cac-2d4c-4def-ab31-86b284b6ff3e |
| SCIP notification number (Belgium) | 3a90be1f-8018-4085-83db-cf5ac993ffdb |
| SCIP notification number (Bulgaria) | 0c1e1de2-15d0-4552-ae5c-a1403f3d5d18 |
| SCIP notification number (Czech Republic) | 916e44b2-08b1-4e25-9885-622c7ad81bb8 |
| SCIP notification number (Denmark) | 6eba43dd-bd3f-4c4f-89cd-4f7927c1d98b |
| SCIP notification number (Finland) | 43f5d785-8ce7-4d24-9380-a0ea415e1cb3 |
| SCIP notification number (France) | 2180e245-7ee2-49bf-968d-a4717d63ca5d |
| SCIP notification number (Germany) | 05a3ad0d-597f-4c61-b202-1fc3a639b65b |
| SCIP notification number (Hungary) | 99d6a205-4bbe-47cc-b80f-f04ea1b73fbe |
| SCIP notification number (Italy) | 4755257f-e5da-4398-b459-1daac2952f4a |
| SCIP notification number (Netherlands) | 1f179663-90cf-41dc-9757-c7672e796886 |
| SCIP notification number (Poland) | 1b877ed7-303d-442e-acb2-82c391e16a56 |
| SCIP notification number (Romania) | 2fc37210-edee-48bf-96c2-f8f6f08911ef |
| SCIP notification number (Sweden) | 1a4dde01-65d2-4ece-aaff-b1c619003e30 |
Other
| Technology | Linect |
|---|
