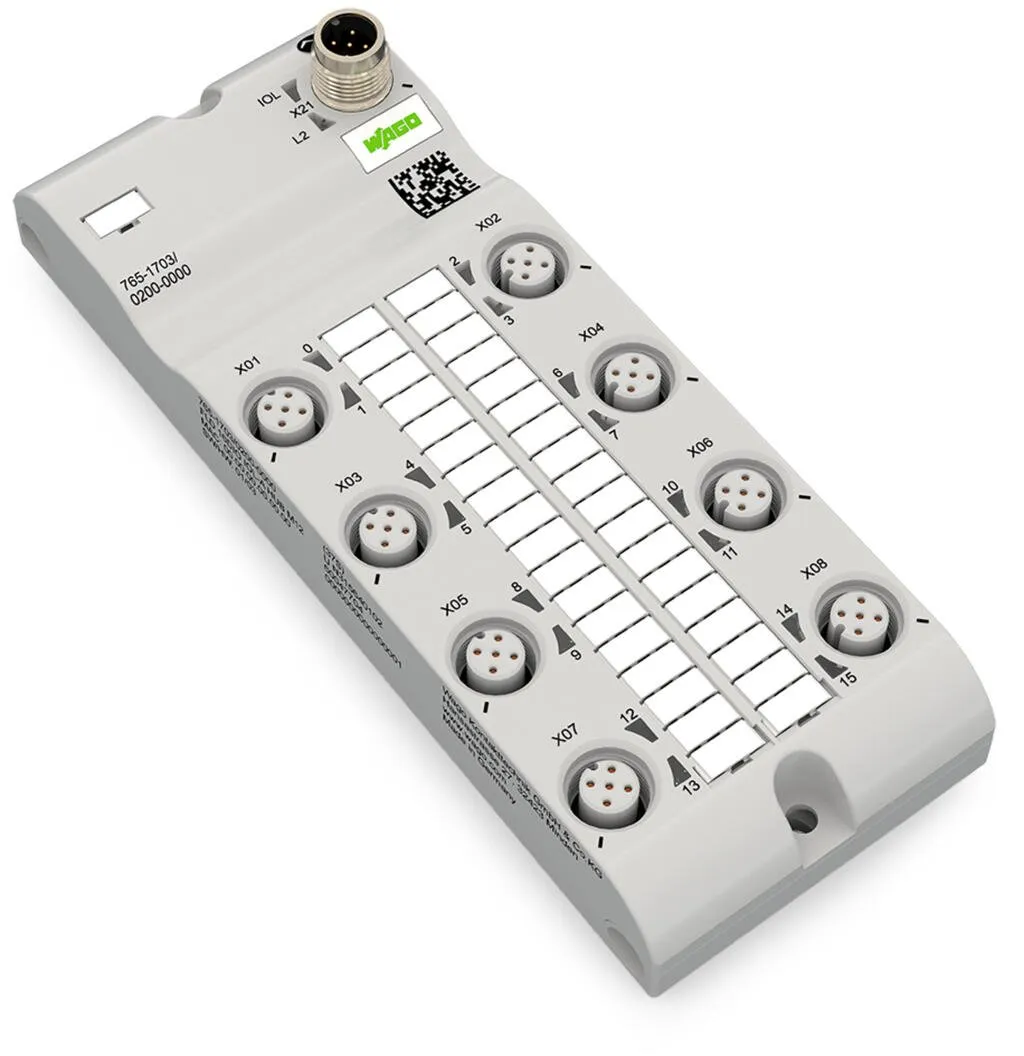

Wago 765-1703/200-000
Application:Decentralized preprocessing and conversion/output of digital signals This device controls digital field devices (e.g., actuators) and records digital signals (e.g., sensors) that are sent…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

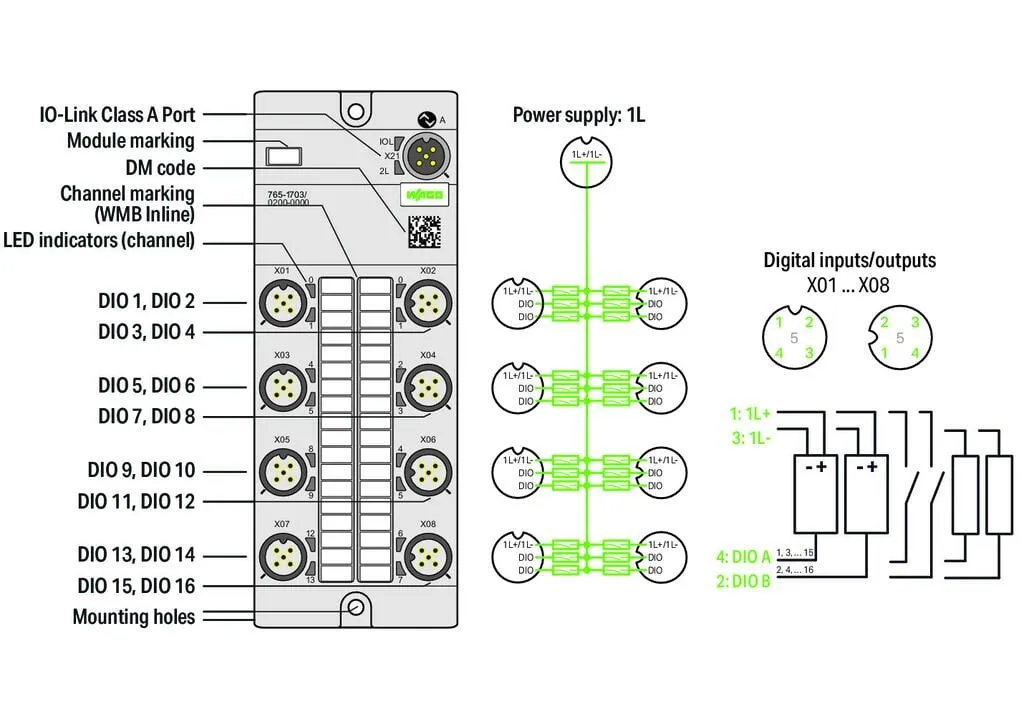

Application:Decentralized preprocessing and conversion/output of digital signals This device controls digital field devices (e.g., actuators) and records digital signals (e.g., sensors) that are sent or received by a higher-level IO-Link master. The device is designed as a Class A hub and has 16 digital inputs/outputs. IO-Link:The device has an IO-Link communication interface that requires an IO-Link master for interoperation.The IO-Link interface allows direct access to the process and diagnostic data and enables setting of the device parameters during operation.The IODD can also be https://ioddfinder.io-link.com downloaded via the IODDfinder.
Specification
Technical data - IO-Link
| Communications | IO-Link slave (class A) |
|---|---|
| Connection technology: communication/fieldbus | 1 x A-coded M12; 5-pole |
Technical data - Device functions
| Parameter | Input filter, Output current, Temperature |
|---|---|
| Diagnostics | Undervoltage; overcurrent; overload; overtemperature |
Technical data - Digital inputs/outputs
| Number of digital inputs | 16 |
|---|---|
| Number of digital outputs | 16 |
| Connection technology: I/O | 8 x A-coded M12; 5-pole |
| Signal type (voltage) | 24 VDC |
| Input characteristic | high-side switching |
| Input filter | 0.2 … 20 ms |
| Input characteristic | Type 3, per IEC 61131-2 |
| Output current (per channel) | 2 A |
Technical data - Power supply
| Connection technology: supply | 1 x A-coded M12; 5-pole; via IO-Link port (1L) |
|---|---|
| Supply voltage | 24 VDC (18 … 31.2 V); 1L |
| Current consumption (max.) | 4000 mA |
| Current consumption (note) | 1L: 0.2 A + load current |
| Reverse voltage protection | Yes |
Physical data
| Width | 60 mm / 2.362 inches |
|---|---|
| Height | 30 mm / 1.181 inches |
| Depth | 158.5 mm / 6.24 inches |
Material data
| Weight | 170 g |
|---|---|
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | -25 … +70 °C |
|---|---|
| Ambient temperature (storage) | -40 … +80 °C |
| Protection type | IP67 |
| Protection class | III per EN 61140, IEC 61140, VDE 0140-1 |
| Pollution degree | 3 (EN 60664-1) |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Vibration resistance | 5g per IEC 60068-2-6 |
| Shock resistance | Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-4 |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4055143949989 |
| Customs tariff number | 85371098990 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| ETIM 9.0 | EC001599 |
| ETIM 10.0 | EC001599 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,No Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I |
| SCIP notification number (Austria) | 751f4ea3-f9d4-4d9d-a8f9-ae249b078e8b |
| SCIP notification number (Belgium) | 980ab4ca-1025-4821-8584-8b06c37f34ae |
| SCIP notification number (Bulgaria) | a9d935ad-3d8f-4636-aff6-734ffd8c2e29 |
| SCIP notification number (Czech Republic) | c61f9664-e21b-495b-a263-9ef0da3625cb |
| SCIP notification number (Denmark) | f70a939b-697f-417a-b6b1-e2b66410dc23 |
| SCIP notification number (Finland) | 758e8f4e-0304-4ebc-ab7b-10a079bc6743 |
| SCIP notification number (France) | 1475125a-a785-4483-8cf2-998df0b924fc |
| SCIP notification number (Germany) | 39315bbd-8fc2-4304-88b3-d1ad24ae4721 |
| SCIP notification number (Hungary) | d15acdb9-88b8-4a77-aa3c-60fb00f1ebae |
| SCIP notification number (Italy) | 10810b13-b776-4000-9904-3ef3a72ad3b3 |
| SCIP notification number (Netherlands) | d3f47be1-8eea-4db6-bf9d-b1419f081622 |
| SCIP notification number (Poland) | 11943c7f-4240-4b6b-83f8-1fec45661b58 |
| SCIP notification number (Romania) | 82142c4f-4997-4a78-93b9-5140e0772bd1 |
| SCIP notification number (Sweden) | 5698e619-1290-411e-b140-cf57d61846ae |
