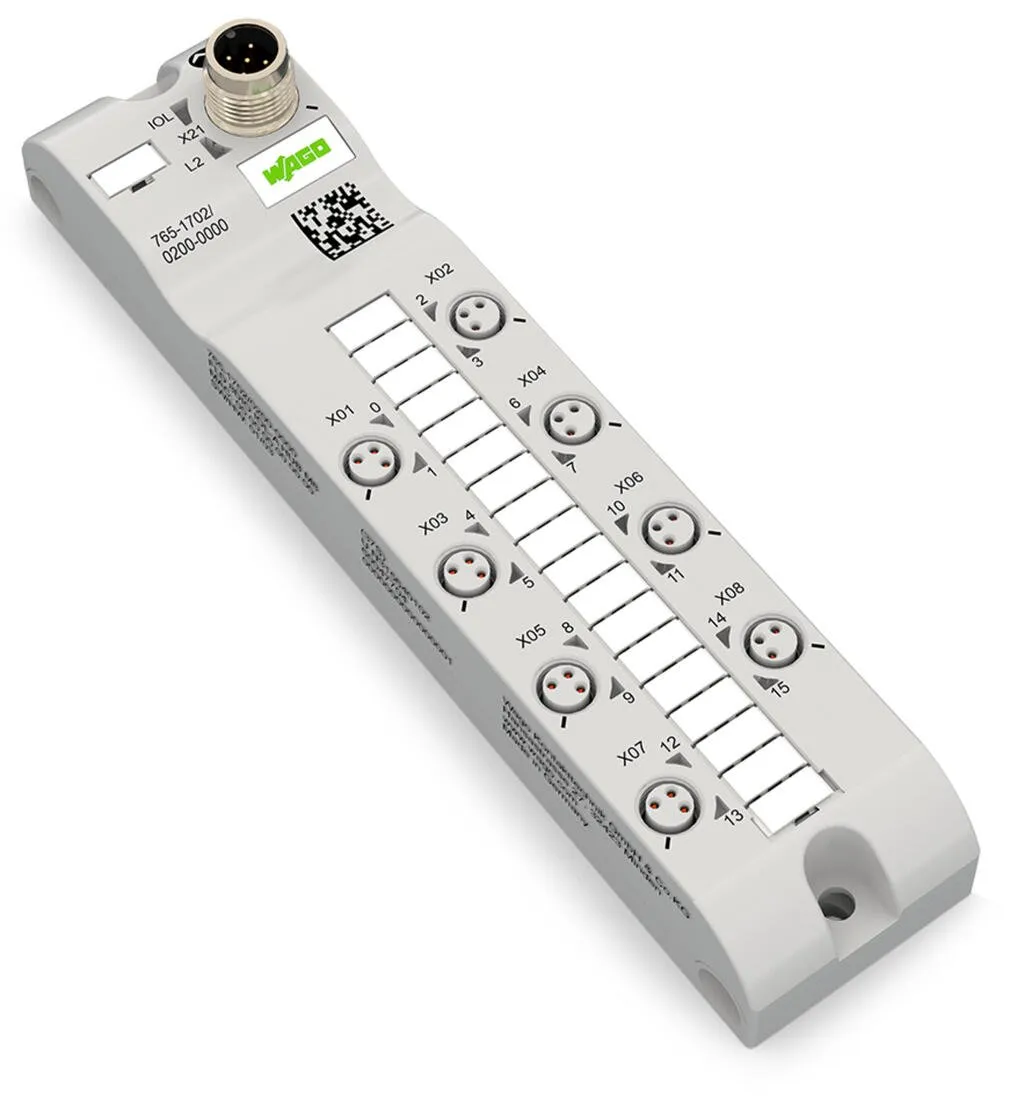

Wago 765-1702/200-000
Application:Decentralized preprocessing and conversion/output of digital signals This device controls digital field devices (e.g., actuators) and records digital signals (e.g., sensors) that are sent…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Application:Decentralized preprocessing and conversion/output of digital signals This device controls digital field devices (e.g., actuators) and records digital signals (e.g., sensors) that are sent or received by a higher-level IO-Link master. The device is designed as a Class A hub and has eight digital inputs/outputs. IO-Link:The device has an IO-Link communication interface that requires an IO-Link master for interoperation.The IO-Link interface allows direct access to the process and diagnostic data and enables setting of the device parameters during operation.The IODD can also be https://ioddfinder.io-link.com downloaded via the IODDfinder.
Specification
Technical data - IO-Link
| Communications | IO-Link slave (class A) |
|---|---|
| Connection technology: communication/fieldbus | 1 x A-coded M12; 5-pole |
Technical data - Device functions
| Parameter | Input filter, Output current, Temperature |
|---|---|
| Diagnostics | Undervoltage; overcurrent; overload; overtemperature |

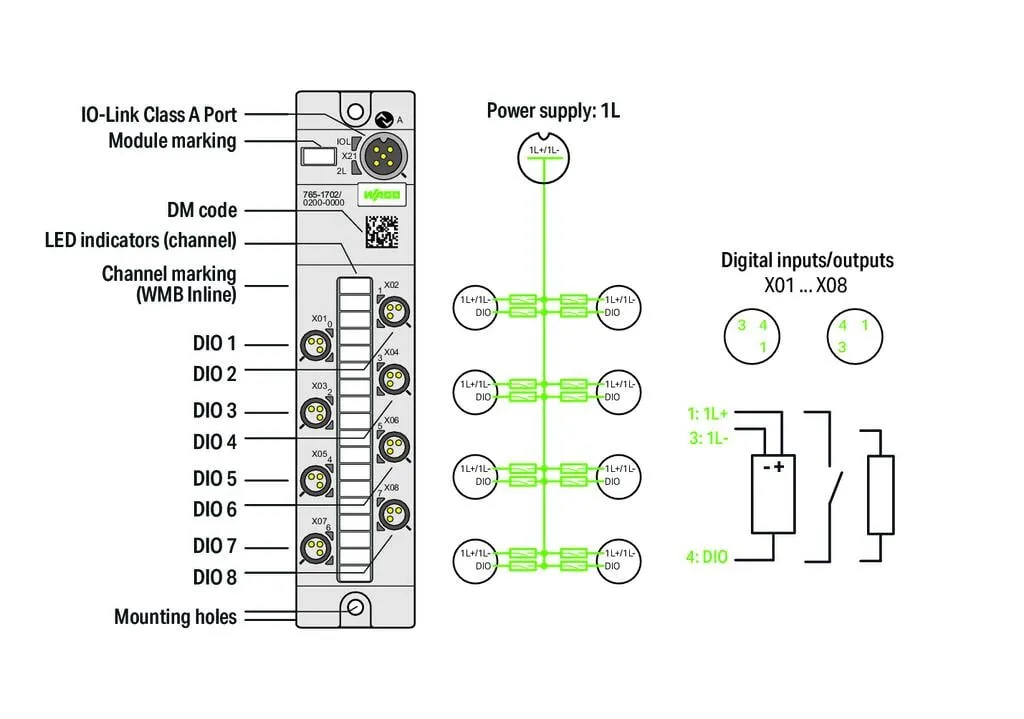

Technical data - Digital inputs/outputs
| Number of digital inputs | 8 |
|---|---|
| Number of digital outputs | 8 |
| Connection technology: I/O | 8 x M8; 3-pole |
| Signal type (voltage) | 24 VDC |
| Input characteristic | high-side switching |
| Input filter | 0.2 … 20 ms |
| Input characteristic | Type 3, per IEC 61131-2 |
| Output current (per channel) | 2 A |
Technical data - Power supply
| Connection technology: supply | 1 x A-coded M12; 5-pole; via IO-Link port (1L) |
|---|---|
| Supply voltage | 24 VDC (18 … 31.2 V); 1L |
| Current consumption (max.) | 4000 mA |
| Current consumption (note) | 1L: 0.2 A + load current |
| Reverse voltage protection | Yes |
Physical data
| Width | 35 mm / 1.378 inches |
|---|---|
| Height | 30 mm / 1.181 inches |
| Depth | 158.5 mm / 6.24 inches |
Material data
| Weight | 120 g |
|---|---|
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | -25 … +70 °C |
|---|---|
| Ambient temperature (storage) | -40 … +80 °C |
| Protection type | IP67 |
| Protection class | III per EN 61140, IEC 61140, VDE 0140-1 |
| Pollution degree | 3 (EN 60664-1) |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Vibration resistance | 5g per IEC 60068-2-6 |
| Shock resistance | Short-term: 50g/11 ms/half-sine per IEC 60068-2-27; Long-term: 30g/6 ms/half-sine per IEC 60068-2-29 |
| EMC immunity to interference | per EN 61000-6-2 |
| EMC emission of interference | per EN 61000-6-4 |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4055143950039 |
| Customs tariff number | 85371098990 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| ETIM 9.0 | EC001599 |
| ETIM 10.0 | EC001599 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,No Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I |
| SCIP notification number (Austria) | e8af65b7-d793-4bd2-9153-6b40e2a0d56c |
| SCIP notification number (Belgium) | 9927fd1d-4496-40e6-b786-6b38c7a491e6 |
| SCIP notification number (Bulgaria) | 765335f0-f63d-42af-b1fd-60a83ce890e1 |
| SCIP notification number (Czech Republic) | 9a1ac26e-aea7-45cc-8e10-c8c1341cf8e5 |
| SCIP notification number (Denmark) | cef5e82d-a723-4e29-8981-7d5daf134129 |
| SCIP notification number (Finland) | 99716129-e74d-4c0e-8839-dcfd54d2253e |
| SCIP notification number (France) | ca295d14-eb71-4e95-8c7f-677622d1ae92 |
| SCIP notification number (Germany) | 6b5f9313-ae6b-4446-9601-1ba2022ff3c6 |
| SCIP notification number (Hungary) | 2c420d3e-5475-493a-96ad-3efd31c509b7 |
| SCIP notification number (Italy) | 5162beff-6fb0-493a-a808-834629dfe9be |
| SCIP notification number (Netherlands) | 90f0eb27-2dbc-4d75-a8a4-574b7e6af59f |
| SCIP notification number (Poland) | 864308a4-45e0-45cd-843a-45a4ab40c013 |
| SCIP notification number (Romania) | d3942520-e29a-4bf4-a311-705ae55bf093 |
| SCIP notification number (Sweden) | ff8718df-c895-46c6-b655-bfd2847575bb |
