Wago 758-975

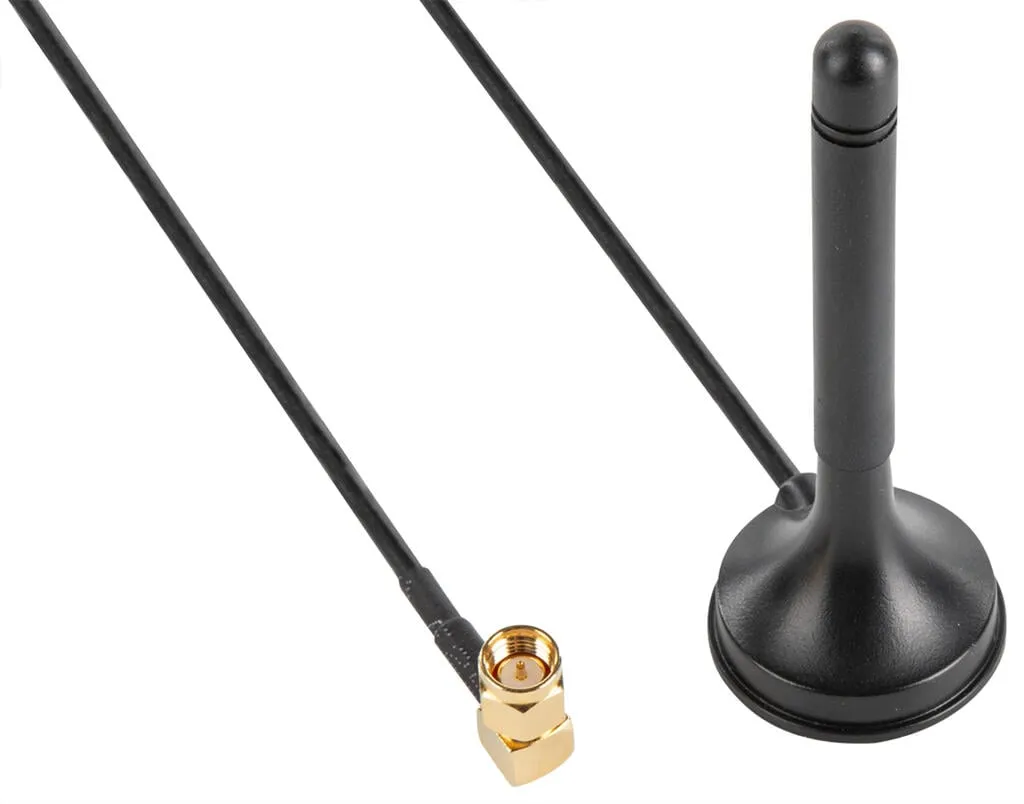

Magnetic foot antenna; with 2.5m cable and SMA plug; GSM/ UMTS/ LTE/ Bluetooth®/ WLAN; 698-960, 1710-6000 MHz 758-975
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Magnetic foot antenna; with 2.5m cable and SMA plug; GSM/ UMTS/ LTE/ Bluetooth®/ WLAN; 698-960, 1710-6000 MHz 758-975
Specification
Technical data
| Radio technology | GSM, UMTS, LTE, Bluetooth®, WLAN |
|---|---|
| Frequency band | B1 … B23; B25 … B30; B32 … B42; B48; B66; B74 … 76; B78; Frequency range: 698 … 960 MHz; 1400 … 1518 MHz; 1710 … 2700 MHz |

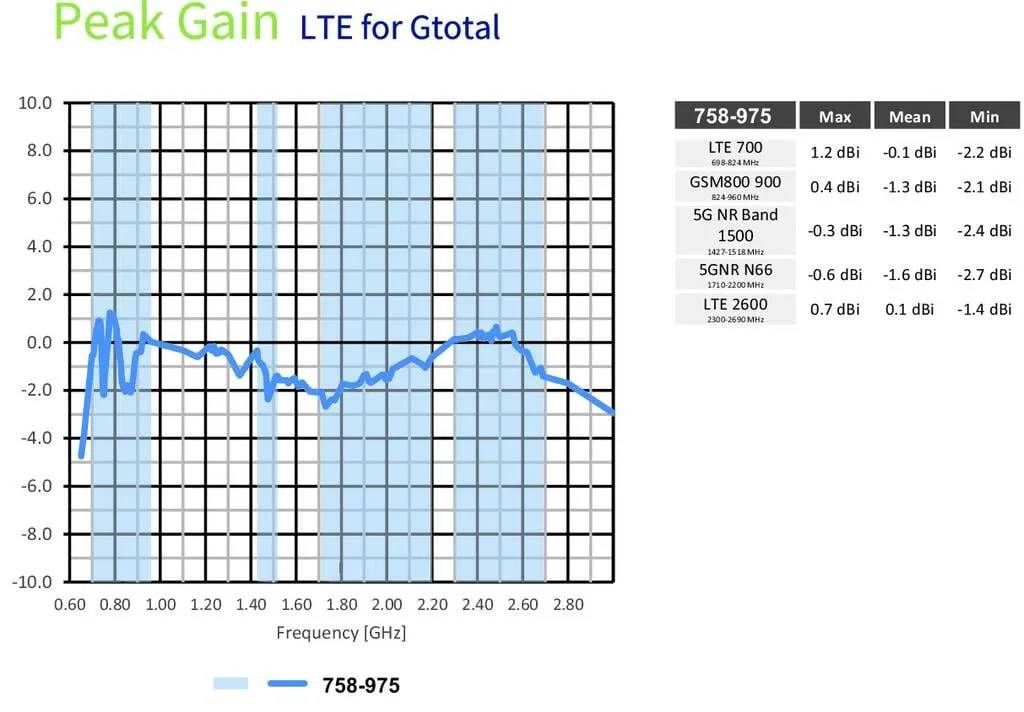

| Gain | 3 dBi |
Mechanical data
| Mounting type | Magnetic stand |
|---|---|
| Cable type | RG-174 |
| Connector | SMA angled plug |
| Length of connection cable | 2.5 m |
Material data
| Weight | 44 g |
|---|
Environmental requirements
| Ambient temperature (operation) | -40 … +85 °C |
|---|
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | bag |
| Country of origin | TW |
| GTIN | 4055143996945 |
| Customs tariff number | 85177100000 |
Product Classification
| UNSPSC | 43221730 |
|---|---|
| ETIM 9.0 | EC001698 |
| ETIM 10.0 | EC001698 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
