Fast delivery within 72 Hours
Wago 757-164
M12 sensor/actuator box, 6-way4-pole (1 signal per contact)M23 connector (12‑pole)Green LED operating indicatorYellow LED status indicatorincl. markers (10 pcs)incl. M12 protective caps (2 pcs)
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
M12 sensor/actuator box, 6-way4-pole (1 signal per contact)M23 connector (12‑pole)Green LED operating indicatorYellow LED status indicatorincl. markers (10 pcs)incl. M12 protective caps (2 pcs)
Specification
Technical data
| Contact resistance (max.) | 0.01 Ω |
|---|---|
| Supply voltage | 10 … 30 VDC; Rated voltage: 32 V ~ rms |
| Current carrying capacity (signal connections) | 2 A |
| Current carrying capacity (supply connections) | 9 A |
| Rated value of electrical isolation | 500 V |
| Functionally separated potential groups | Kontakt/Kontakt |
| Insulation resistance | >109 Ω |
| Signal characteristics | PNP |
| Indicators | LED (A) yellow: Signal status (1 x per contact); LED (U) green: Sensor/actuator box status |

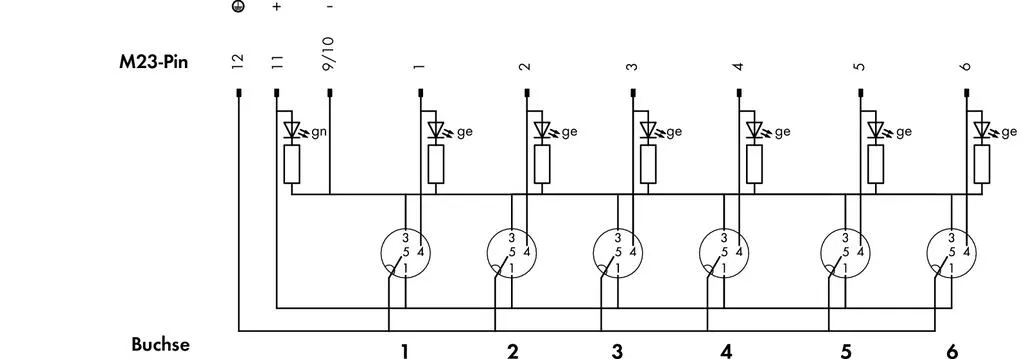

Connection data
| Connection technology: I/O | 6 x M12 socket; 4-pole; incl. ground |
|---|---|
| Connection technology: trunk cable | 1 x M23 plug; 12-pole |
Physical data

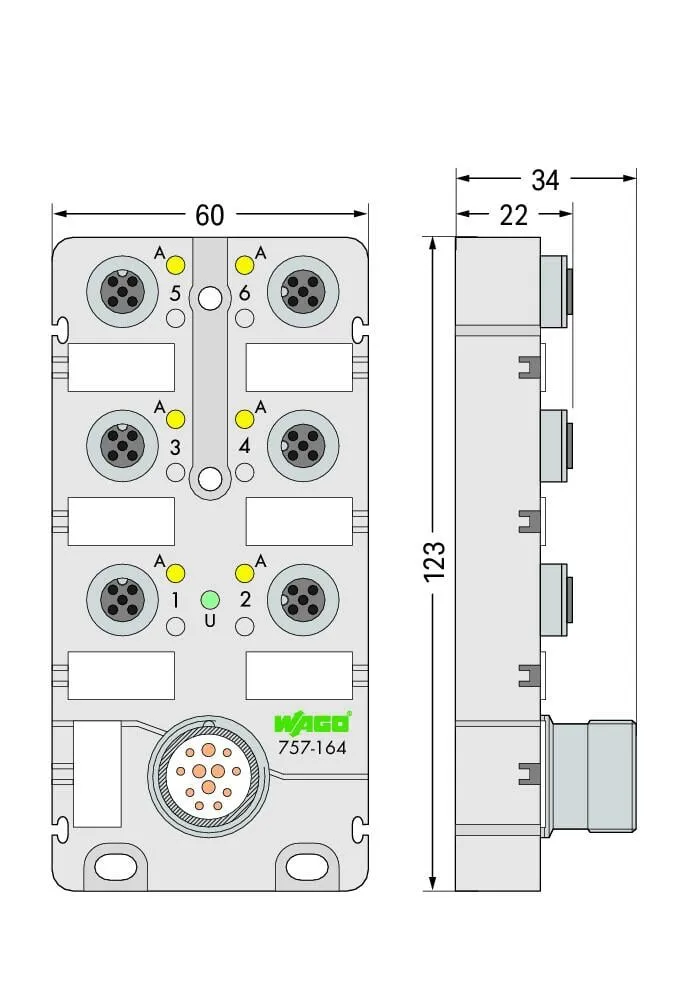

| Width | 60 mm / 2.362 inches |
|---|---|
| Height | 34 mm / 1.339 inches |
| Depth | 123 mm / 4.843 inches |
Mechanical data
| Mounting type | Screw mounting |
|---|---|
| Weight | 195 g |
Material data
| Housing material | PA 66 (UL 94 V0); RAL 7035; silicon and halogen free |
|---|---|
| Material properties of the connections | Contact: CuSn, nickel base-coat plating and 0.8 μm gold-plated; Threaded bush: die-cast Zn, nickel-plated; Seal: Viton; 50 mating cycles |
| Encapsulation | Fully encapsulated with conformal coating (UL 94 V0) |
Environmental requirements
| Ambient temperature (operation) | -25 … +80 °C |
|---|---|
| Protection type | IP67 |
| Note on protection type | Per EN 60529 (NEMA 6 & 6P) in the fully locked position with its plugs or protective caps |
| Pollution degree | 3 per VDE 0110 |
| Vibration resistance | Per IEC 60068-2-6 |
| Shock resistance | per IEC 60068-2-27 |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4050821054290 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121421 |
|---|---|
| eCl@ss 10.0 | 27-44-01-11 |
| eCl@ss 9.0 | 27-44-01-08 |
| ETIM 9.0 | EC003558 |
| ETIM 10.0 | EC003558 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 0eba7b55-0c35-4b32-9335-d0114961970e |
| SCIP notification number (Belgium) | 1b37e433-1351-4f0c-8bbf-27350d26dd3e |
| SCIP notification number (Bulgaria) | 8421cbb3-be38-47b8-9582-e1c2a06a90d6 |
| SCIP notification number (Czech Republic) | 7bd637ce-8944-428e-a4f8-ec23460634ee |
| SCIP notification number (Denmark) | e5b2ec1e-be55-4926-912c-9321a337b772 |
| SCIP notification number (Finland) | be43c6dc-e867-4103-b7f0-3597cba464e5 |
| SCIP notification number (France) | ef08c6cf-518c-42f3-b60b-e3babb3e4e35 |
| SCIP notification number (Germany) | 825a7886-9dd4-4dc6-911c-e943a2110070 |
| SCIP notification number (Hungary) | b3d2cd58-562b-4943-b2c1-5ab7be0c631b |
| SCIP notification number (Italy) | 851bd862-c1a1-4232-bfd3-ad2dc036f93d |
| SCIP notification number (Netherlands) | 1a2573cc-b74f-4538-8dad-ea1d93b48a2a |
| SCIP notification number (Poland) | 0a171249-3c04-40d0-8ff7-8124285f7d1a |
| SCIP notification number (Romania) | d8d6cfab-adc8-4a4e-b4c8-3a2eb8e34609 |
| SCIP notification number (Sweden) | 2e3b824f-88f3-4da6-a312-b94249da3c7e |
Reviews
Clear filtersThere are no reviews yet.
