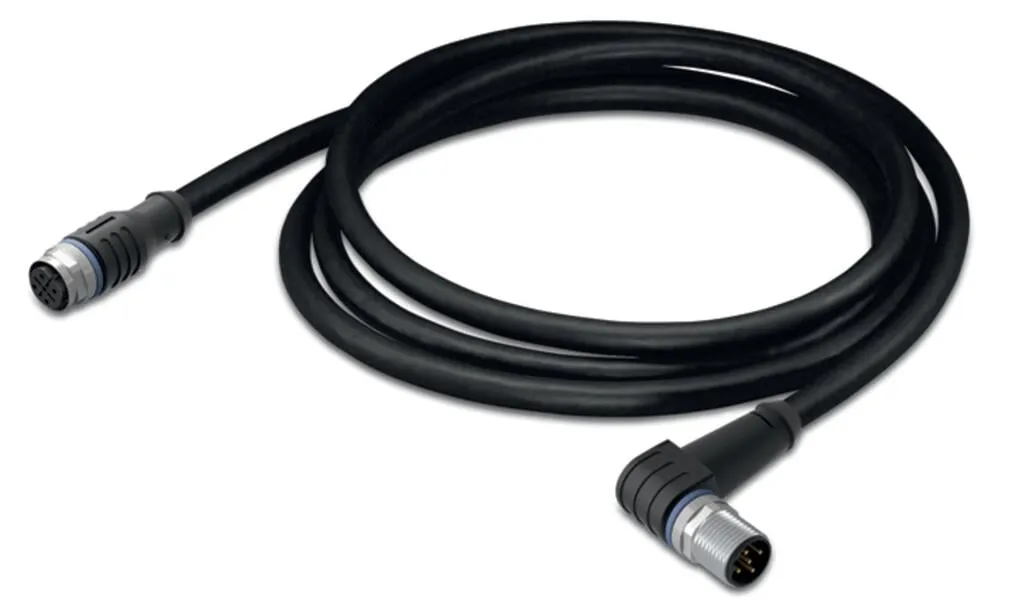

Wago 756-5402/050-010
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Specification
Technical data - General information
| Operating voltage | 250 VAC/DC |
|---|---|
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
|---|---|
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 1 m |
|---|---|
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |

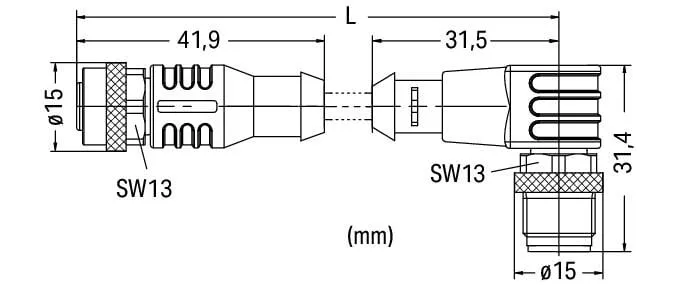

Technical data - Connector
| Connection type | M12 Socket - M12 plug |
|---|---|
| Pole number | 5 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 90 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
|---|---|
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4044918975636 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 32a37fa1-141b-4e68-a747-704fd4c41c46 |
| SCIP notification number (Belgium) | b86b5de1-f26d-46fb-8ccf-97178ef7f2dc |
| SCIP notification number (Bulgaria) | 2ca91003-ad70-4356-9e98-35599fd57b3a |
| SCIP notification number (Czech Republic) | 44491a90-1bf8-4fb6-a081-ee214ff96761 |
| SCIP notification number (Denmark) | 132c2a01-449b-4634-9509-df0b3a677a55 |
| SCIP notification number (Finland) | b15ab077-4535-4014-b5eb-019d2bd6eecd |
| SCIP notification number (France) | a6949b6b-52ee-4d65-8352-603d50d0afa6 |
| SCIP notification number (Germany) | b7704215-6d3c-4560-aaf8-ee26596dbfc7 |
| SCIP notification number (Hungary) | 4f707614-5abc-4d66-ae67-f3b309c2214e |
| SCIP notification number (Italy) | 35e73b0e-4a94-4803-965f-2c4107a2323a |
| SCIP notification number (Netherlands) | f0d74fff-119e-4cc9-a92a-cfe907151884 |
| SCIP notification number (Poland) | 08f785b1-90df-4097-9a54-a40b83c3bcbc |
| SCIP notification number (Romania) | 8d304240-281a-4174-843f-a417f54455fa |
| SCIP notification number (Sweden) | c81771a3-bc90-4172-8b5b-2ff93006cb70 |
