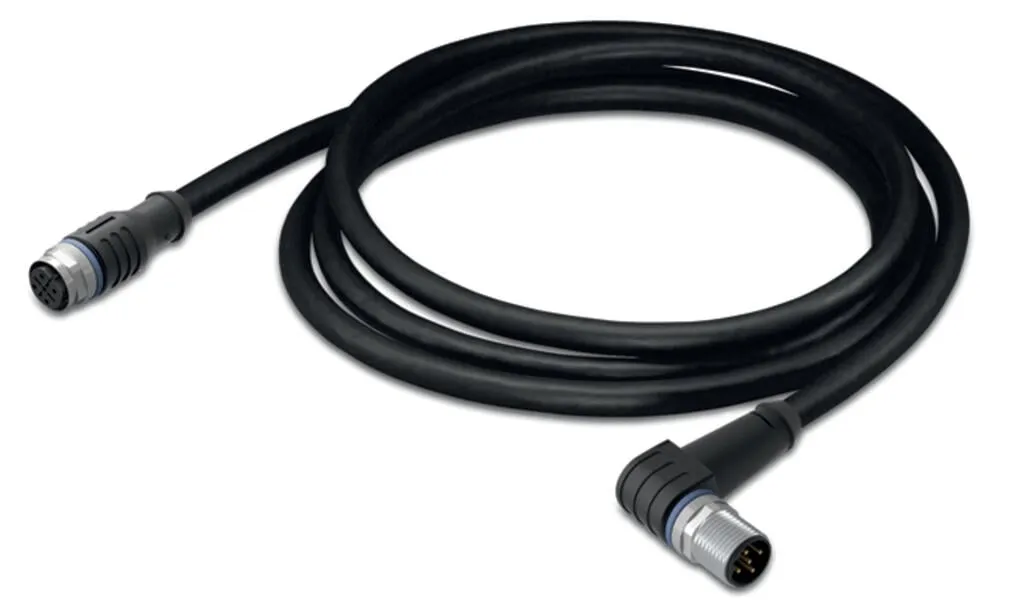

Wago 756-5402/040-020
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Specification
Technical data - General information
| Operating voltage | 250 VAC/DC |
|---|---|
| Operating current | 4 A |
| Rated impulse withstand voltage | 2.5 kV |
| Insulation resistance | >109 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
|---|---|
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 2 m |
|---|---|
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (42 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |
Technical data - Connector
| Connection type | M12 Socket - M12 plug |
|---|---|
| Pole number | 4 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 90 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 10 (1) pcs |
|---|---|
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4044918975544 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121629 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 76c3b6b7-3405-4f24-8834-125061c13ac7 |
| SCIP notification number (Belgium) | c8568fdf-3354-4b0c-84e5-0d214b8ffd00 |
| SCIP notification number (Bulgaria) | 2d42e4a2-de9b-4b94-8872-daf662d16200 |
| SCIP notification number (Czech Republic) | 0bd3da15-6734-4852-8f68-43f9be31a1fb |
| SCIP notification number (Denmark) | b7795d96-86a8-41c0-ae1e-d31677dae982 |
| SCIP notification number (Finland) | 60e96429-49ba-4577-85b5-60b8e0c71e43 |
| SCIP notification number (France) | 55bec252-87c6-4d59-928c-9cd031871d0e |
| SCIP notification number (Germany) | 30541d39-a4c2-4db0-976c-bd576281e542 |
| SCIP notification number (Hungary) | 691d9d56-d1c0-4b81-9034-fa4993570042 |
| SCIP notification number (Italy) | c4eb2038-b1e6-48de-a0ec-24fb580bb49a |
| SCIP notification number (Netherlands) | 642d5be5-32f2-4839-85b1-b85cc0487ed1 |
| SCIP notification number (Poland) | 14298209-9ccd-4f2a-941b-0925cabc68c4 |
| SCIP notification number (Romania) | 5d5440fb-2384-4046-9277-76d76e3d12b8 |
| SCIP notification number (Sweden) | 3fa09399-723f-41c3-8f11-884a3ab63c6b |
