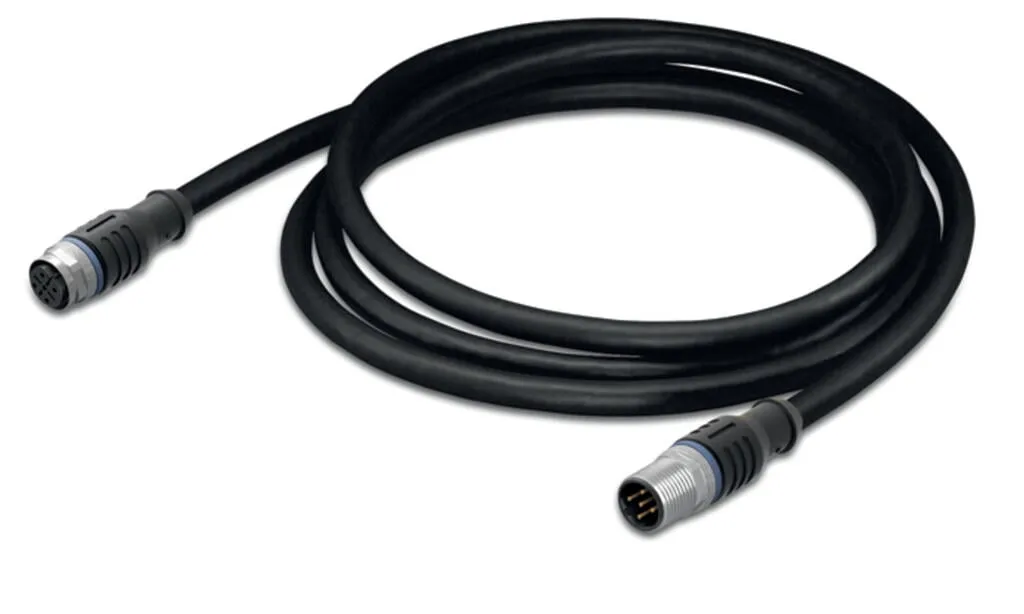

Wago 756-5401/060-020
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Specification
Technical data - General information
| Operating voltage | 250 VAC/DC |
|---|---|
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | ≥1.6 x 1010 Ω/km |
| Contact resistance | 10 mΩ |
| Conductor resistance | < 57 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | Fixed: >4xØ; Flexible: >7.5xØ |
|---|---|
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 10 |
| Travel speed (max.) | 4 |
| Travel path (horizontal) max. | 15 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 2 m |
|---|---|
| Type code | Li9YC11Y-HF 5x0.34 mm² |
| Overall shield | Tinned copper braid, optical coverage approx. 80 % |
| Conductor configuration | Bare copper wire (7 x 0.25 mm) |
| Conductor insulation | Halogen-free PE |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |

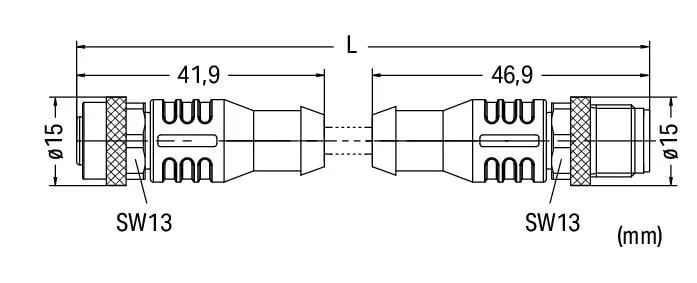

Technical data - Connector

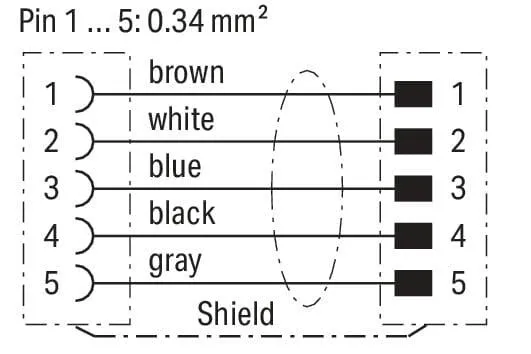

| Connection type | M12 Socket - M12 plug |
|---|---|
| Pole number | 5 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4045454724634 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121609 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 0dde6068-638a-415a-a9a2-c3bc237fb2cb |
| SCIP notification number (Belgium) | 09084ea3-ce1b-410c-98d2-c317609a86d3 |
| SCIP notification number (Bulgaria) | a93ab0e2-5c98-42c0-829e-1eea1dc69e6a |
| SCIP notification number (Czech Republic) | 53955a45-d181-48a7-be35-2697e118c10b |
| SCIP notification number (Denmark) | 852ab930-5675-4a03-85e0-cc3a4f975134 |
| SCIP notification number (Finland) | f5f36da0-16b7-4254-8214-505ef18752bc |
| SCIP notification number (France) | 053ab41f-c843-49b8-85bf-937bea1d9ef4 |
| SCIP notification number (Germany) | c74d58b7-f92d-4d0a-b2a3-598779906215 |
| SCIP notification number (Hungary) | 0fc7338e-ee35-40e2-9ea0-2db0db8db3e9 |
| SCIP notification number (Italy) | 53fdb16f-57f3-4811-9b58-228f4e2d881c |
| SCIP notification number (Netherlands) | b72bc60c-e1ac-4bf6-b597-52c33de06dcd |
| SCIP notification number (Poland) | 3c271bc5-0bca-4c9b-aec3-57b2e659b9f6 |
| SCIP notification number (Romania) | bd354ab8-f324-4550-a0e9-048d45272fa3 |
| SCIP notification number (Sweden) | cb7d5286-a099-4f30-83e2-d548d618020f |
