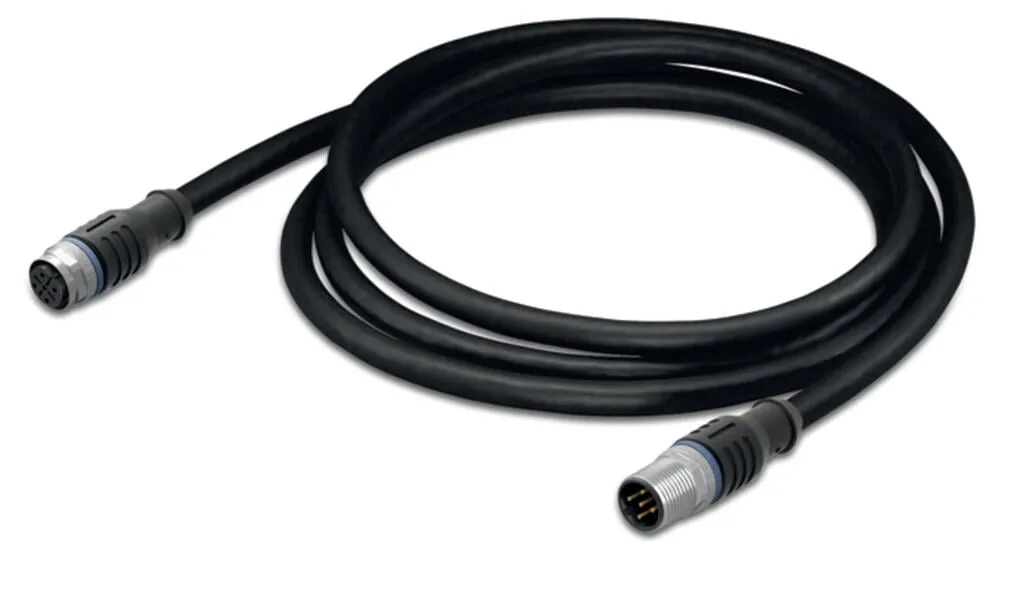

Wago 756-5401/060-010
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Specification
Technical data - General information
| Operating voltage | 250 VAC/DC |
|---|---|
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | ≥1.6 x 1010 Ω/km |
| Contact resistance | 10 mΩ |
| Conductor resistance | < 57 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | Fixed: >4xØ; Flexible: >7.5xØ |
|---|---|
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 10 |
| Travel speed (max.) | 4 |
| Travel path (horizontal) max. | 15 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 1 m |
|---|---|
| Type code | Li9YC11Y-HF 5x0.34 mm² |
| Overall shield | Tinned copper braid, optical coverage approx. 80 % |
| Conductor configuration | Bare copper wire (7 x 0.25 mm) |
| Conductor insulation | Halogen-free PE |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |

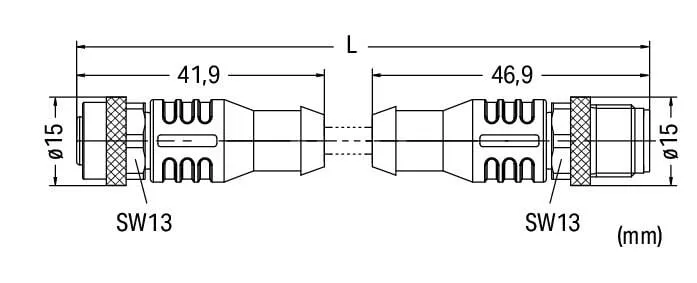

Technical data - Connector

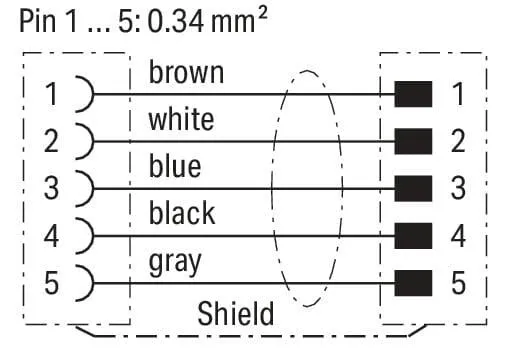

| Connection type | M12 Socket - M12 plug |
|---|---|
| Pole number | 5 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4045454724641 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 7525a098-d443-4844-8821-c89909654733 |
| SCIP notification number (Belgium) | bb0f964a-fb75-4b42-a6d4-be48c1bf79b1 |
| SCIP notification number (Bulgaria) | 4249a950-ad8e-42b1-812b-0d4e5b72ef55 |
| SCIP notification number (Czech Republic) | 40153405-d79e-4e29-ab73-cb2315033f8f |
| SCIP notification number (Denmark) | 32c4332c-ec33-4d7b-b8a4-32284e7c75dc |
| SCIP notification number (Finland) | f2712c32-7efb-4cd0-a6cf-4a8cbb3ca7c9 |
| SCIP notification number (France) | d4c33e19-22ce-40cb-9c9e-658c4e647b63 |
| SCIP notification number (Germany) | b568deb6-67cb-463c-9f0c-94fcea397947 |
| SCIP notification number (Hungary) | 4829567d-ee0b-4abd-bb0e-7d5c5dcb8360 |
| SCIP notification number (Italy) | 42ea2a5a-c5da-403a-bf69-84d7f5716c54 |
| SCIP notification number (Netherlands) | f866918c-0988-4c09-a124-38b906e971ee |
| SCIP notification number (Poland) | a682d25c-818b-47c2-9869-2ed6670fd011 |
| SCIP notification number (Romania) | 19c8674b-08bb-4ce6-ae0d-3e93f8f0a594 |
| SCIP notification number (Sweden) | 9b7b89a5-f925-48e6-9774-d611b264f840 |
