Wago 756-5311/090-100
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Specification
Technical data - General information
| Operating voltage | 250 VAC/DC |
|---|---|
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >108 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
|---|---|
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 10 m |
|---|---|
| Type code | LiF9YH-11YH or LiF9YC11YFHF |
| Conductor configuration | Bare copper wire, fine-stranded (32 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |

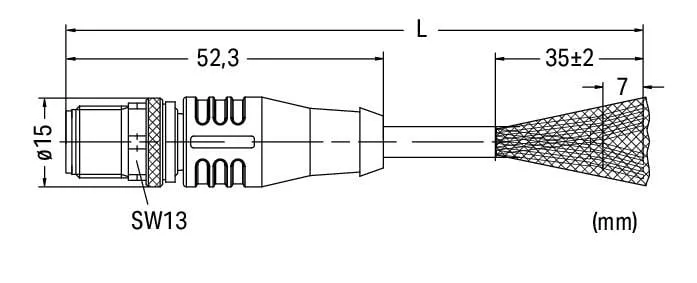

Technical data - Connector

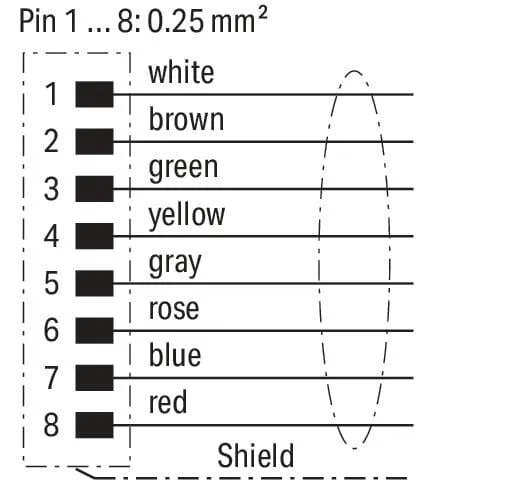

| Connection type | M12 plug - free end |
|---|---|
| Pole number | 8 |
| Cable connection direction to mating direction | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4050821346364 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121634 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 5b2b4c14-82d4-4cf2-8803-35765465a36a |
| SCIP notification number (Belgium) | 74b5105c-e8a7-4ba4-85f9-200face2c229 |
| SCIP notification number (Bulgaria) | fac9f6e7-516d-45d3-9259-dcfdcf783b94 |
| SCIP notification number (Czech Republic) | 086fa796-df48-4988-9adf-0896d65a6d47 |
| SCIP notification number (Denmark) | bebb05b6-6f37-4292-82af-b6c1c71ddc02 |
| SCIP notification number (Finland) | 52e19d7e-57a8-4a65-aac3-0b89b27839b3 |
| SCIP notification number (France) | fba505f2-7134-4d8c-902b-fc8992b90ee9 |
| SCIP notification number (Germany) | 1af74fc7-ec13-4c4b-99c8-3a60721d7c9e |
| SCIP notification number (Hungary) | 309340e0-10fb-45f3-b883-ad5f15d44c41 |
| SCIP notification number (Italy) | 0b6b9754-9fa1-4d87-9a8f-805a3d66a4ad |
| SCIP notification number (Netherlands) | b6719ed5-48f1-42ac-946f-c8bf075e8199 |
| SCIP notification number (Poland) | 020046cc-94db-41c2-9c82-a6a56e4b9dd1 |
| SCIP notification number (Romania) | 6a20ac3a-0f0e-4c0d-8768-c3fb1e4281db |
| SCIP notification number (Sweden) | d0a4281b-2b37-469b-9774-6b20464b91da |
