Wago 756-5311/090-015
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeSuitable for drag chainsHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiation High chemical resistanceCable used: UL listed
Specification
Technical data - General information
| Operating voltage | 250 VAC/DC |
|---|---|
| Operating current | 4 A |
| Rated impulse withstand voltage | 1.5 kV |
| Insulation resistance | >108 Ω |
| Contact resistance | 10 mΩ |
| Conductor resistance | ≤ 60 Ω/km |
| Pollution degree | 3 per VDE 0110 |
| Protection type | IP67 |
| Ambient (operating) temperature (static) | -50 … +90 °C |
| Ambient (operating) temperature (dynamic) | -25 … +90 °C |
Technical data - Drag chain compatible
| Bending radius | 10 x cable diameter (min.) |
|---|---|
| Bending cycles | 2 Mio. |
| Acceleration (min.) | 5 |
| Travel speed (max.) | 3.33 |
| Travel path (horizontal) max. | 5 |
| Travel path (vertical) max. | 2 |
| Torsional capacity | 180 |
Technical data - Cable
| Cable length | 1.5 m |
|---|---|
| Type code | LiF9YH-11YH or LiF9YC11YFHF |

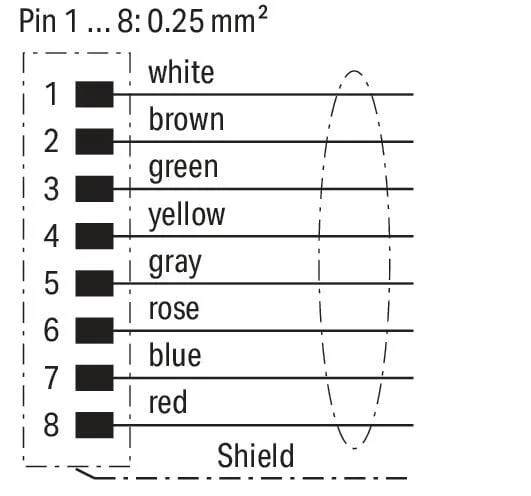

| Conductor configuration | Bare copper wire, fine-stranded (32 x 0.1 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Sheath material | Polyurethane (PUR), halogen-free per DIN VDE 0472 Part 815, flame resistant per IEC 332-2, self-extinguishing |
| Sheathed cable color | black |

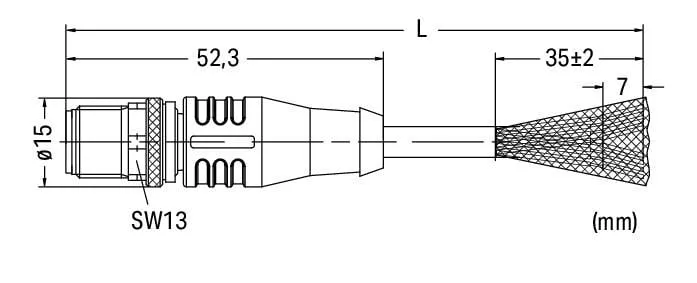

Technical data - Connector
| Connection type | M12 plug - free end |
|---|---|
| Pole number | 8 |
| Cable connection direction to mating direction | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Housing material | Polyurethane (PUR) |
| Contact material | CuSn |
| Tightening torque | 1 Nm |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | Box |
| Country of origin | HU |
| GTIN | 4050821346388 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121604 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC001855 |
| ETIM 10.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,With Exemption |
|---|---|
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | e752d5dd-4285-47fb-a1c4-3f64fdaf6081 |
| SCIP notification number (Belgium) | 8857393c-8195-4712-b8f0-11914bc5d78c |
| SCIP notification number (Bulgaria) | d8f61672-8fcd-4cdb-8bc9-8a1a84e0e0d3 |
| SCIP notification number (Czech Republic) | bd76b5cb-3ddc-49f9-b1af-1702ef5dce49 |
| SCIP notification number (Denmark) | 1ed53cdf-d071-4f6e-abc3-c2371b67a902 |
| SCIP notification number (Finland) | 9c00ac69-5302-40d0-a80b-4278156826e5 |
| SCIP notification number (France) | 9603f21f-a2d0-4a36-9fff-3a35f024e14b |
| SCIP notification number (Germany) | 7e091f14-f7d4-4e83-8d0b-08970461e4c1 |
| SCIP notification number (Hungary) | 1a4e010d-2705-4078-a139-77fd36bf7daf |
| SCIP notification number (Italy) | a654f382-6a36-4905-b263-ecf2327697db |
| SCIP notification number (Netherlands) | e295d943-e874-40fc-9570-46e6af907cc2 |
| SCIP notification number (Poland) | 7b8b7391-64e0-44fd-a8da-a61b48314404 |
| SCIP notification number (Romania) | 254cc5d6-1722-4757-b3a0-0a7720713f9e |
| SCIP notification number (Sweden) | ffd190f3-c235-4c2f-a519-e67dbe2b4887 |
