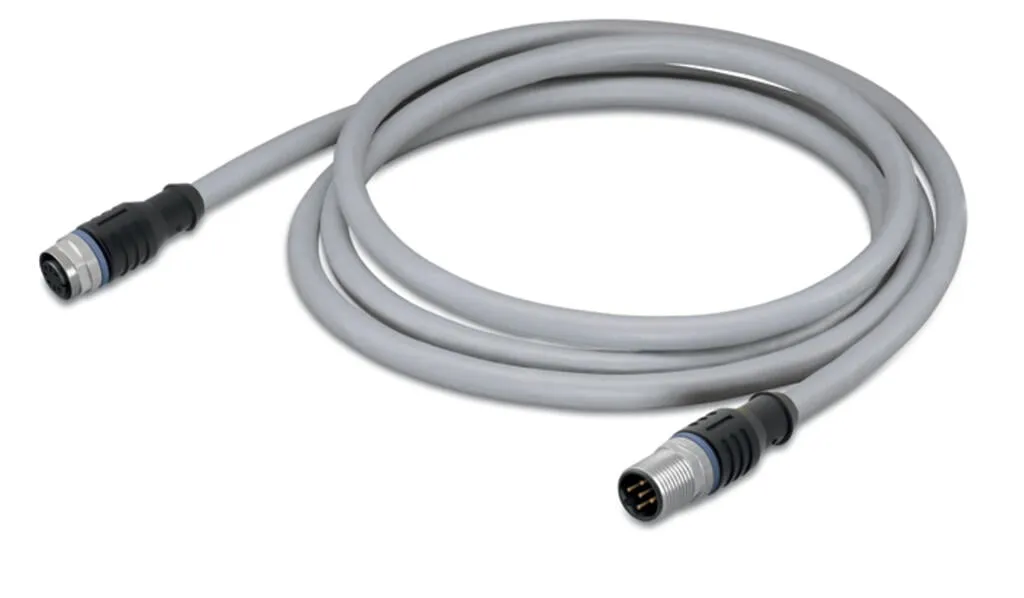

Wago 756-3105/040-005
Short description:PUR, halogen-freeUL / CSASuitable for drag chainsSilicon- and CFC-freeHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiationHigh chemical resistanceCable used: UL l…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Short description:PUR, halogen-freeUL / CSASuitable for drag chainsSilicon- and CFC-freeHigh resistance to microbes, hydrolysis, oil, chemicals and UV radiationHigh chemical resistanceCable used: UL listed
Specification
Technical data

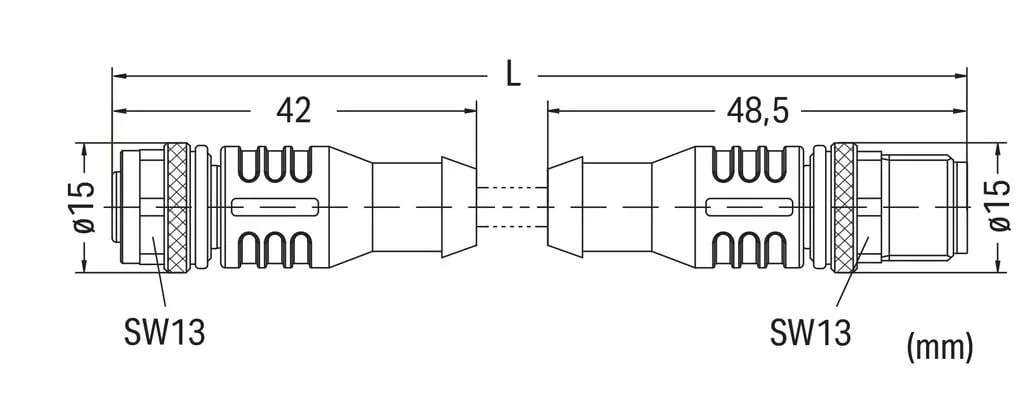

| Connection type | M12 socket - M12 plug |
|---|---|
| Pole number | 4 |
| Cable connection direction to mating direction | 0 ° |
| Cable connection direction to mating direction (2) | 0 ° |
| Connector interface coding (cable/adapter) 1 1 | A-coded |
| Connector interface coding (cable/adapter) 2 1 | A-coded |
| Cable length | 0.5 m |
| PLC manufacturer | WAGO |
| Operating voltage | 250 VAC/DC |
| Operating current | 4 A |
| Rated impulse withstand voltage | 2.5 kV |
| Contact resistance | 10 mΩ |
| Insulation resistance | >109 Ω |
| Conductor resistance | ≤ 26 Ω/km |
Mechanical data
| Bending radius | 10 x cable diameter (min.) for flexible application |
|---|---|
| Bending cycles | 4 Mio. |
| Drag chain capability | yes |
| Type code | Lif9YH-11YH 4x0.75 mm2 |
| Conductor configuration | Bare copper wire (40 x 0.15 mm) |
| Conductor insulation | PP9Y (halogen-free) |
| Housing material | TPU/TPU, black (~ RAL 9005) |
| Tightening torque | 1 Nm |
| Weight | 51 g |
Environmental requirements
| Ambient (operating) temperature (dynamic) | -30 … +80 °C |
|---|---|
| Ambient (operating) temperature (static) | -30 … +80 °C |
| Protection type | IP67 |
| Pollution degree | 3/2 per IEC 60664-1 |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454126964 |
| Customs tariff number | 85444290900 |
| End of Sale | 2024-05-01 |
| End of Production | 2024-05-15 |
| End of Delivery | 2024-06-01 |
| End of Service and Repair | 2025-06-01 |
| Support period for security updates | 2029-07-01 |
Product Classification
| UNSPSC | 26121604 |
|---|---|
| eCl@ss 10.0 | 27-06-18-01 |
| eCl@ss 9.0 | 27-06-18-01 |
| ETIM 9.0 | EC001855 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|---|
| SCIP notification number (Austria) | 89ffbd2d-0955-4997-89a4-164e22f9a1ad |
| SCIP notification number (Belgium) | 21576389-59b9-492e-928c-ceeae97e4811 |
| SCIP notification number (Bulgaria) | dfc604f8-b002-4dd7-8697-3205456af447 |
| SCIP notification number (Czech Republic) | 2a954bf7-ab57-4f60-a1d9-1f1a4172bc95 |
| SCIP notification number (Denmark) | 3f62ee0d-699d-4e8e-a3b4-97d30ddde340 |
| SCIP notification number (Finland) | 98d9a578-474d-4d32-ae01-9d1dc31f3dc3 |
| SCIP notification number (France) | 2052e441-1085-4b9a-8309-8fed7b09e4d0 |
| SCIP notification number (Germany) | 79ae68e8-a764-498e-ba38-dc05b239e7a9 |
| SCIP notification number (Hungary) | 95509148-50e0-4d36-a9bc-a1f7b228badf |
| SCIP notification number (Italy) | 21fd6b9a-9a12-4631-95a3-b4b2b60df2e0 |
| SCIP notification number (Netherlands) | 717ff4cd-160e-4f6b-8e6a-92f148545ab3 |
| SCIP notification number (Poland) | d7001600-edfe-43fe-bf01-a7badfbe2608 |
| SCIP notification number (Romania) | f6a39db2-a7f3-4124-8219-bddbef0553cf |
| SCIP notification number (Sweden) | 98e045ee-c098-45b8-9514-6eaff5b3aa23 |
