Wago 753-555
This analog output module generates standard 4–20 mA signals.The output signal is electrically isolated and transmitted with a resolution of 12 bits.Power is derived from the field side.The module’s o…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

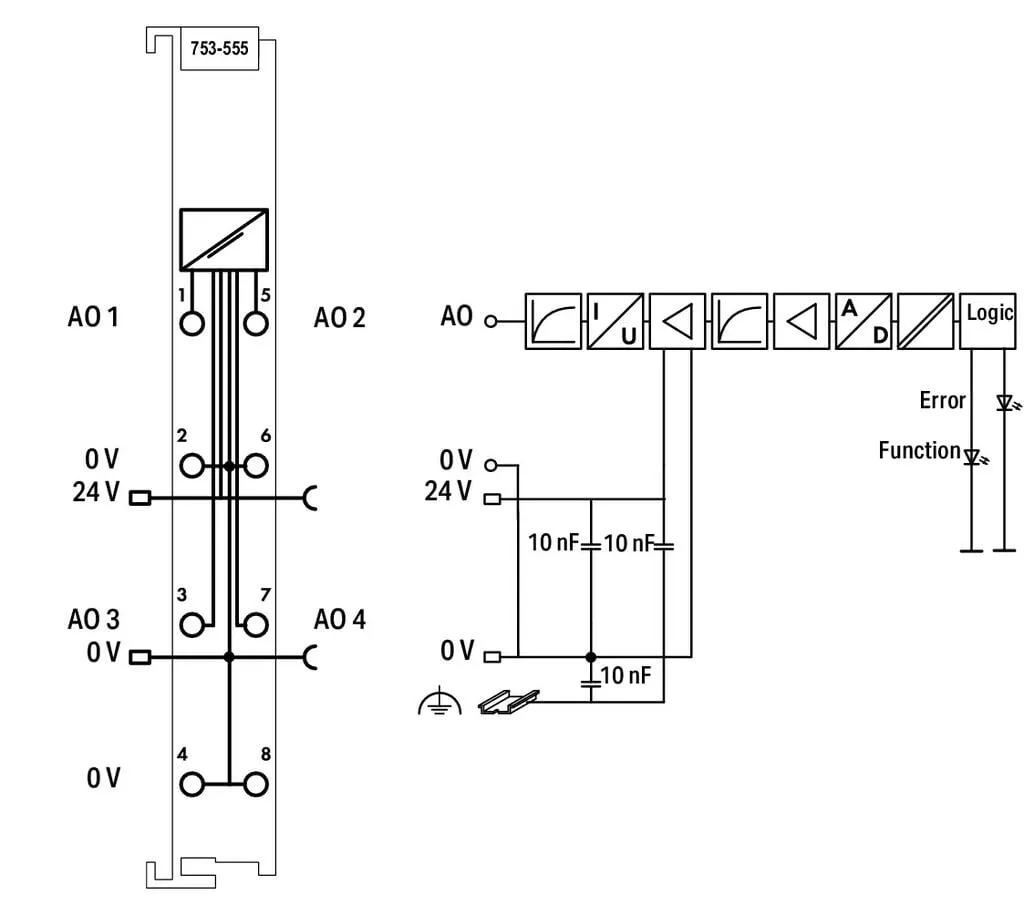

This analog output module generates standard 4–20 mA signals.The output signal is electrically isolated and transmitted with a resolution of 12 bits.Power is derived from the field side.The module’s output channels have a common ground potential.
Specification
Notes
| Note | Pluggable connectors and coding fingers (753 Series) are not included. |
|---|
Technical data
| Number of analog outputs | 4 |
|---|---|
| Total number of channels (module) | 4 |
| Signal type | Current |
| Signal type (current) | 4 … 20 mADC |

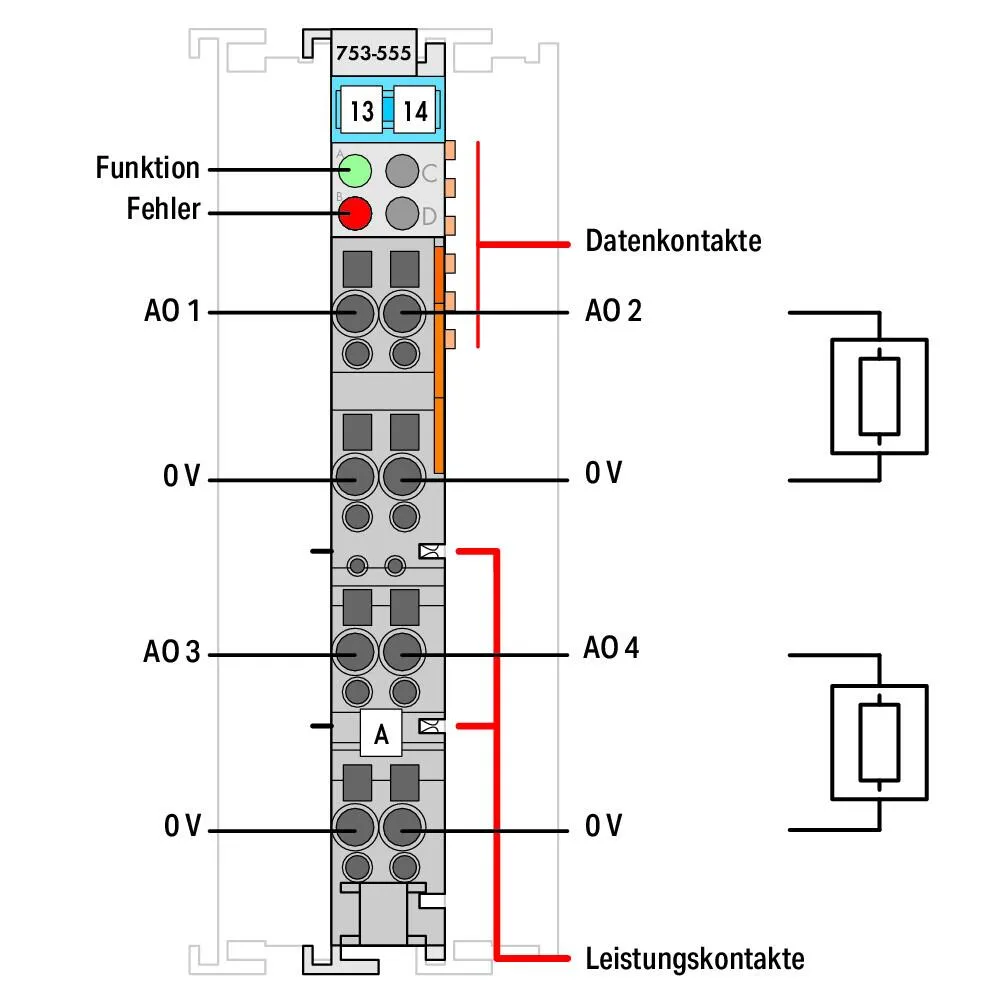

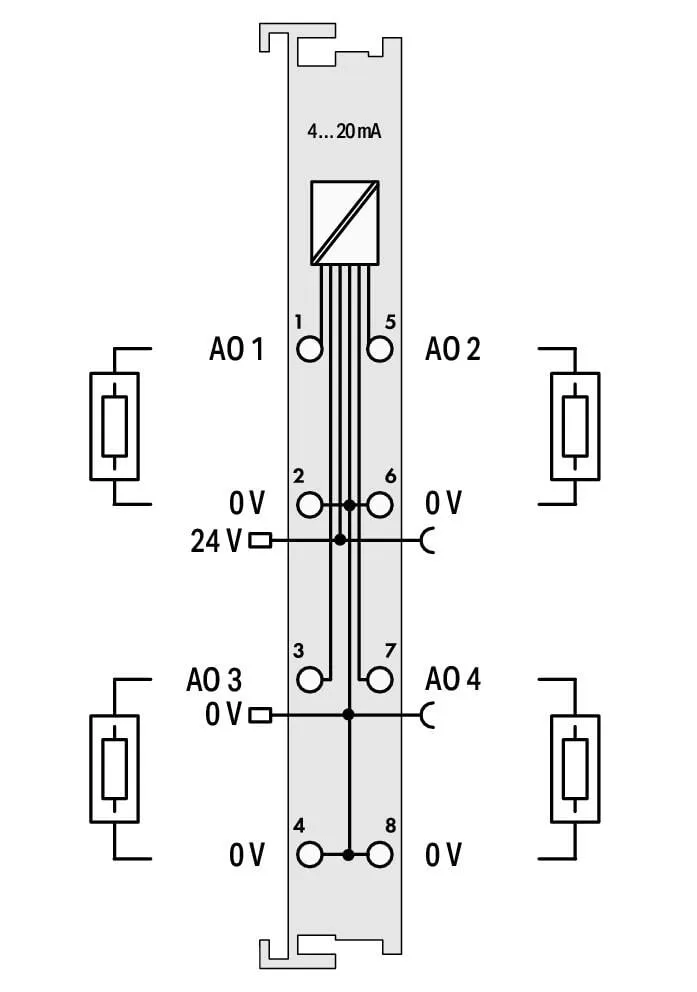

| Actuator connection | 4 x (2-wire) |
| Resolution [bit] | 12 Bit |
| Data width | 4 x 16-bit data; 4 x 8-bit control/status (optional) |
| Load impedance | Either 0 … 300 Ω or 300 … 600 Ω (same resistance for all load impedances) |
| Conversion time (typ.) | 10 ms |
| Measurement error (reference temperature) | 25 °C |
| Measurement error, deviation (max.) from the upper-range value | 0.1 % |
| Temperature error (max.) of the upper-range value | 0.01 %/K |
| Output error, deviation (max.) of the upper-range value | 0.1 % |
| Temperature error (max.) of the output range value | 0.01 %/K |
| Recovery time (typ.) | 100 ms |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 60 mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Isolation | 500 V system/field |
| Indicators | LED (A) green: function; LED (B) red: Error |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
Connection data
| Connection technology: I/O | 8 x CAGE CLAMP® |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Inputs/Outputs |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69.8 mm / 2.748 inches |
| Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | Pluggable |
Material data
| Housing material | Polycarbonate; polyamide 6.6 |
|---|---|
| Fire load | 0.645 MJ |
| Weight | 44 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-4, marine applications |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454643096 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32101505 |
|---|---|
| eCl@ss 10.0 | 27-24-26-01 |
| eCl@ss 9.0 | 27-24-26-01 |
| ETIM 9.0 | EC001596 |
| ETIM 10.0 | EC001596 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 25550-51-0, 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, 4-Methyl-1,2-cyclohexanedicarboxylic anhydride, Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | e1e2c494-5f43-4210-9ff4-698804090b48 |
| SCIP notification number (Belgium) | 3071a0a8-44e2-474a-98f7-427641ba2baa |
| SCIP notification number (Bulgaria) | cd5ceee1-76d1-46c9-86dc-104645ee90cd |
| SCIP notification number (Czech Republic) | f853943f-6b5c-4774-b113-1604d927e918 |
| SCIP notification number (Denmark) | 2bc8168d-edb6-4096-a48d-ec9716f52470 |
| SCIP notification number (Finland) | 08586788-f249-420f-8ac7-93b88c603383 |
| SCIP notification number (France) | ee5f8ce5-730a-4c30-bdd0-023c7daada6c |
| SCIP notification number (Germany) | 9dea10dd-d6d1-4948-a9a6-903851017f76 |
| SCIP notification number (Hungary) | 65d0ffa4-e21e-4e77-bcfb-0eb890409f48 |
| SCIP notification number (Italy) | d4e9deac-7d04-4fe9-820d-e94c7c36fc8e |
| SCIP notification number (Netherlands) | 8fdca87a-b5fb-4745-934e-2f95d3858561 |
| SCIP notification number (Poland) | 605bc645-e6b5-40fc-90e0-d7c068c77aaf |
| SCIP notification number (Romania) | 86b2d548-6644-47b5-a22b-9dd8b5f0d484 |
| SCIP notification number (Sweden) | 8bbd7e3b-633e-4695-b85d-26065123f0ef |
