Wago 753-411
This digital input module receives control signals from field devices (e.g., sensors).Each input module has a noise-rejection filter.Field and system levels are electrically isolated.A 2-wire proximit…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

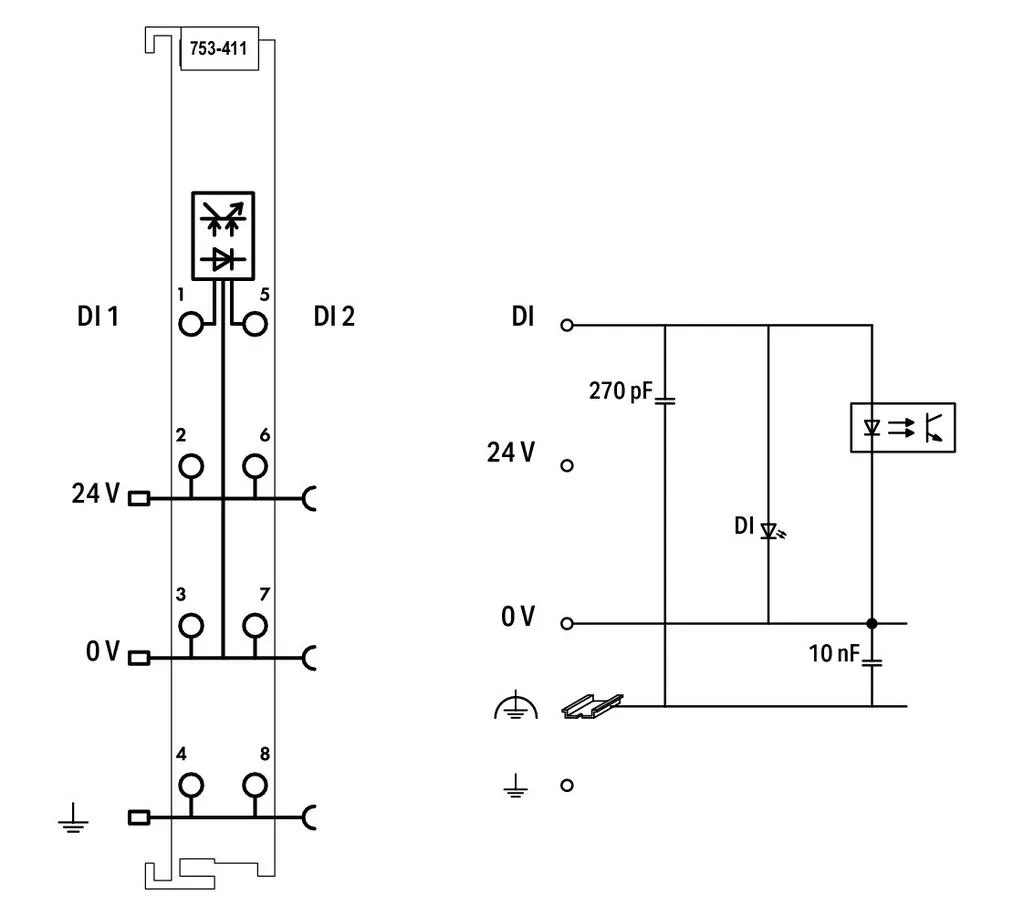

This digital input module receives control signals from field devices (e.g., sensors).Each input module has a noise-rejection filter.Field and system levels are electrically isolated.A 2-wire proximity sensor can be connected to this module.
Specification
Notes
| Note | Pluggable connectors and coding fingers (753 Series) are not included. |
|---|
Technical data
| Number of digital inputs | 2 |
|---|---|
| Total number of channels (module) | 2 |
| Signal type | Digital |
| Signal type (voltage) | 24 VDC |

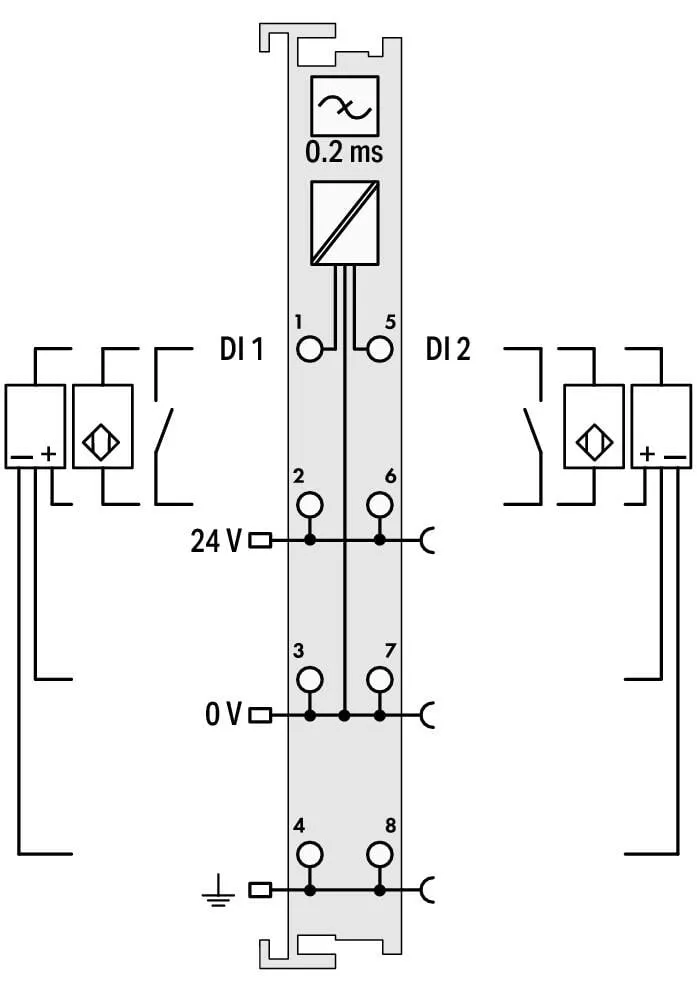

| Sensor connection | 2 x (2-wire, 3-wire, 4-wire); 2-wire proximity sensor |
| Input characteristic | high-side switching |
| Input filter | 0.2 ms |
| Input current per channel for signal (1) typ. | 8 mA |
| Voltage range for signal (0) | −3 … +5 VDC |
| Voltage range for signal (1) | 15 … 30 VDC |
| Sensor supply | 24 VDC |
| Input data width (internal) max. | 2 Bit |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 2.5 mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Isolation | 500 V system/field |

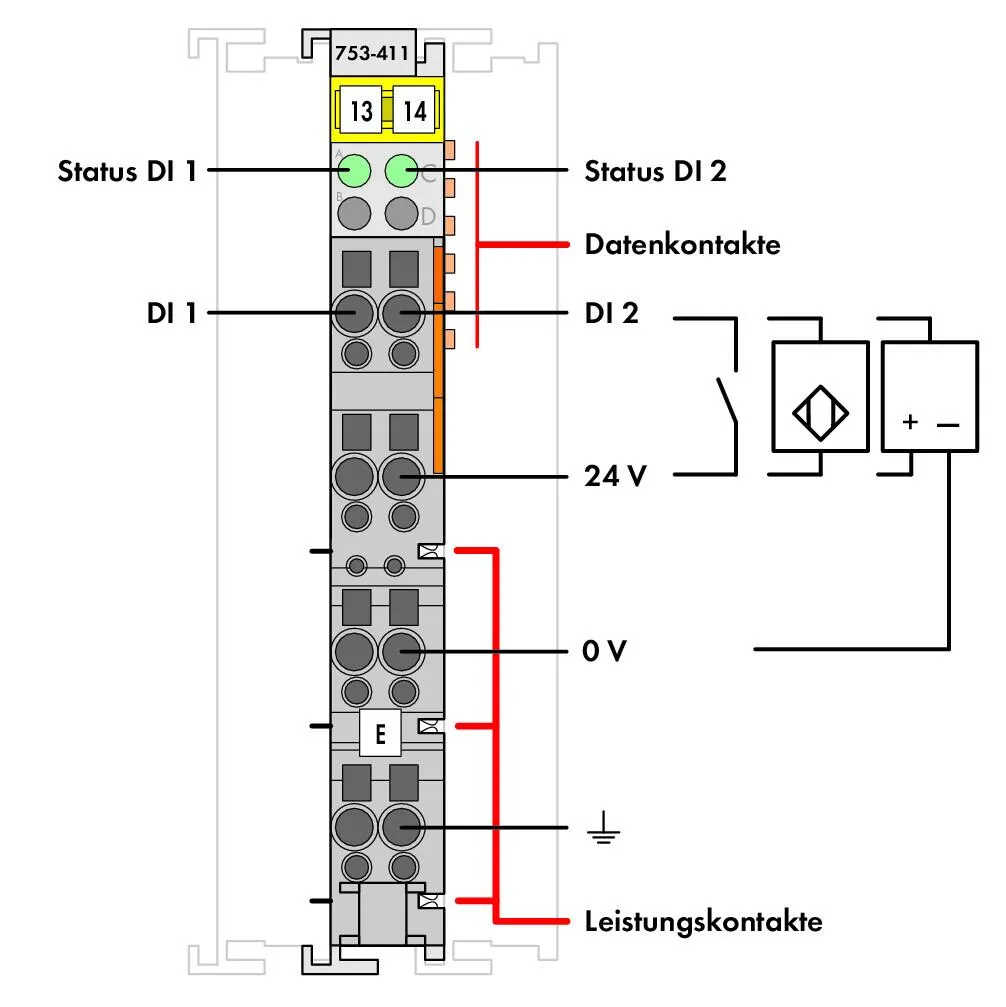

| Indicators | LED (A, C) green: Status DI 1, DI 2 |
| Number of incoming power jumper contacts | 3 |
| Number of outgoing power jumper contacts | 3 |
| Current carrying capacity (power jumper contacts) | 10 A |
Connection data
| Connection technology: I/O | 8 x CAGE CLAMP® (inputs) |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Input |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69.8 mm / 2.748 inches |
| Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | pluggable |
Material data
| Color | light gray |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 1.21 MJ |
| Weight | 41.6 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-4, marine applications |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4045454394417 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| eCl@ss 10.0 | 27-24-26-04 |
| eCl@ss 9.0 | 27-24-26-04 |
| ETIM 9.0 | EC001599 |
| ETIM 10.0 | EC001599 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 25550-51-0 |
|---|---|
| REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride |
| RoHS Compliance Status | Compliant,No Exemption |
| SCIP notification number (Austria) | e741c47c-35a8-4c64-93bc-ee773d537a01 |
| SCIP notification number (Belgium) | 81ad4324-a796-45ae-b89e-ca2ea90d0a86 |
| SCIP notification number (Bulgaria) | caede879-71fc-4009-b047-866dda136dc6 |
| SCIP notification number (Czech Republic) | 6f0e08b1-2e1d-44fa-b4f6-e7c5cb78b20d |
| SCIP notification number (Denmark) | e24d96ed-430f-4410-876f-5cadf1288b36 |
| SCIP notification number (Finland) | 6c191630-fe93-4ee8-88d5-018cb696cf47 |
| SCIP notification number (France) | c9a8abd1-81d0-4636-9688-f3f65f47fd6c |
| SCIP notification number (Germany) | 8852a4a4-ba61-4b75-85ba-1d9cda69734b |
| SCIP notification number (Hungary) | 9576bbf4-842b-4b3d-a50d-fcd82615d758 |
| SCIP notification number (Italy) | 4b74e0a0-9557-49ac-aa36-dfe9a5309639 |
| SCIP notification number (Netherlands) | 8ce0aadf-a060-4bdb-90cb-fa3531cb5b3b |
| SCIP notification number (Poland) | f8364bc8-73ec-4bb9-bc9b-b541fda27351 |
| SCIP notification number (Romania) | 3153f892-218f-44c2-8ae1-fe8f1cb6f8b4 |
| SCIP notification number (Sweden) | 9fb3615c-c019-4dbd-9290-67dc6bc97206 |
