Wago 753-410
This digital input module receives control signals from field devices (e.g., sensors).Each input module has a noise-rejection filter.Field and system levels are electrically isolated.A 2-wire proximit…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

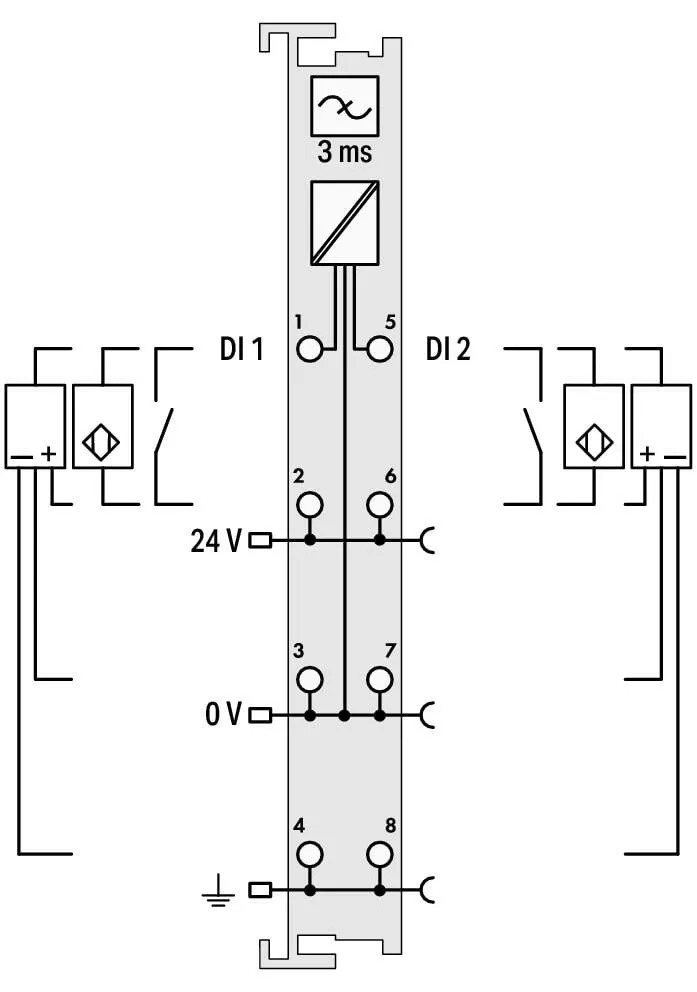

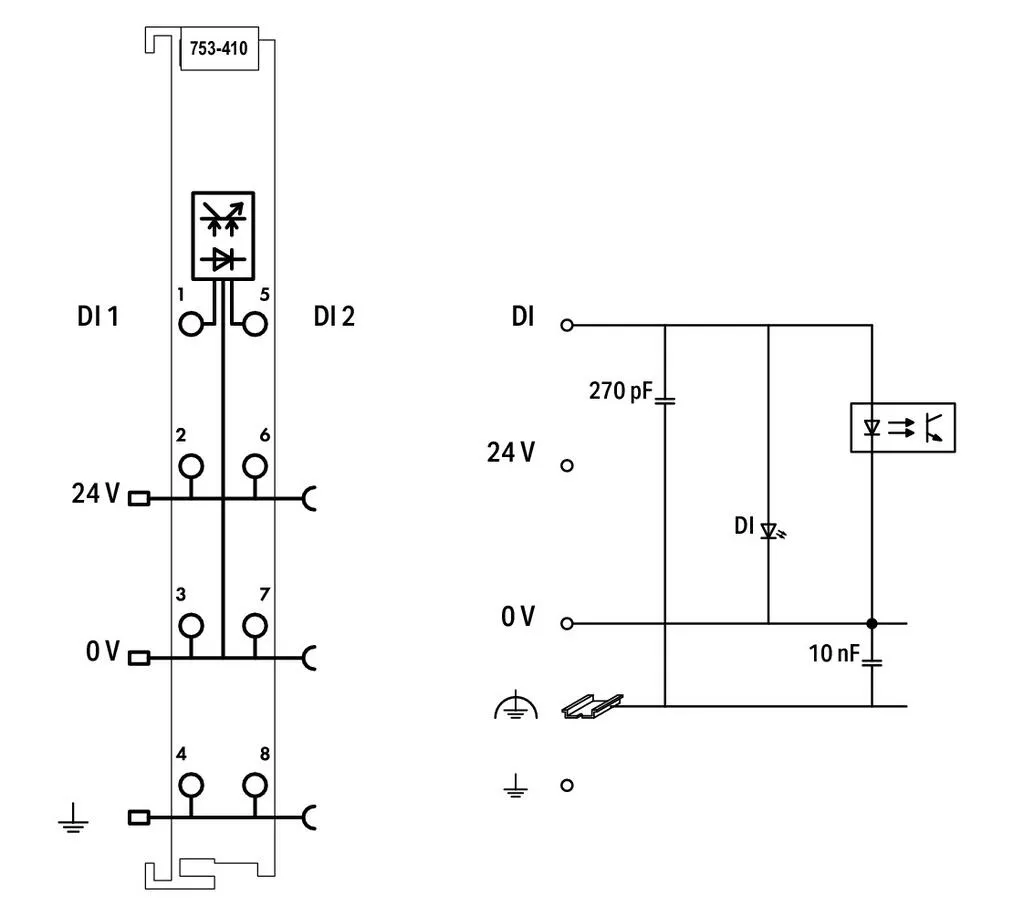

This digital input module receives control signals from field devices (e.g., sensors).Each input module has a noise-rejection filter.Field and system levels are electrically isolated.A 2-wire proximity sensor can be connected to this module.
Specification
Notes
| Note | Pluggable connectors and coding fingers (753 Series) are not included. |
|---|
Technical data
| Number of digital inputs | 2 |
|---|---|
| Total number of channels (module) | 2 |
| Signal type | Digital |
| Signal type (voltage) | 24 VDC |
| Sensor connection | 2 x (2-wire, 3-wire, 4-wire); 2-wire proximity sensor |
| Input characteristic | high-side switching |
| Input filter | 3 ms |
| Input current per channel for signal (1) typ. | 8 mA |
| Voltage range for signal (0) | −3 … +5 VDC |
| Voltage range for signal (1) | 15 … 30 VDC |
| Sensor supply | 24 VDC |
| Input data width (internal) max. | 2 Bit |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 2.5 mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Isolation | 500 V system/field |

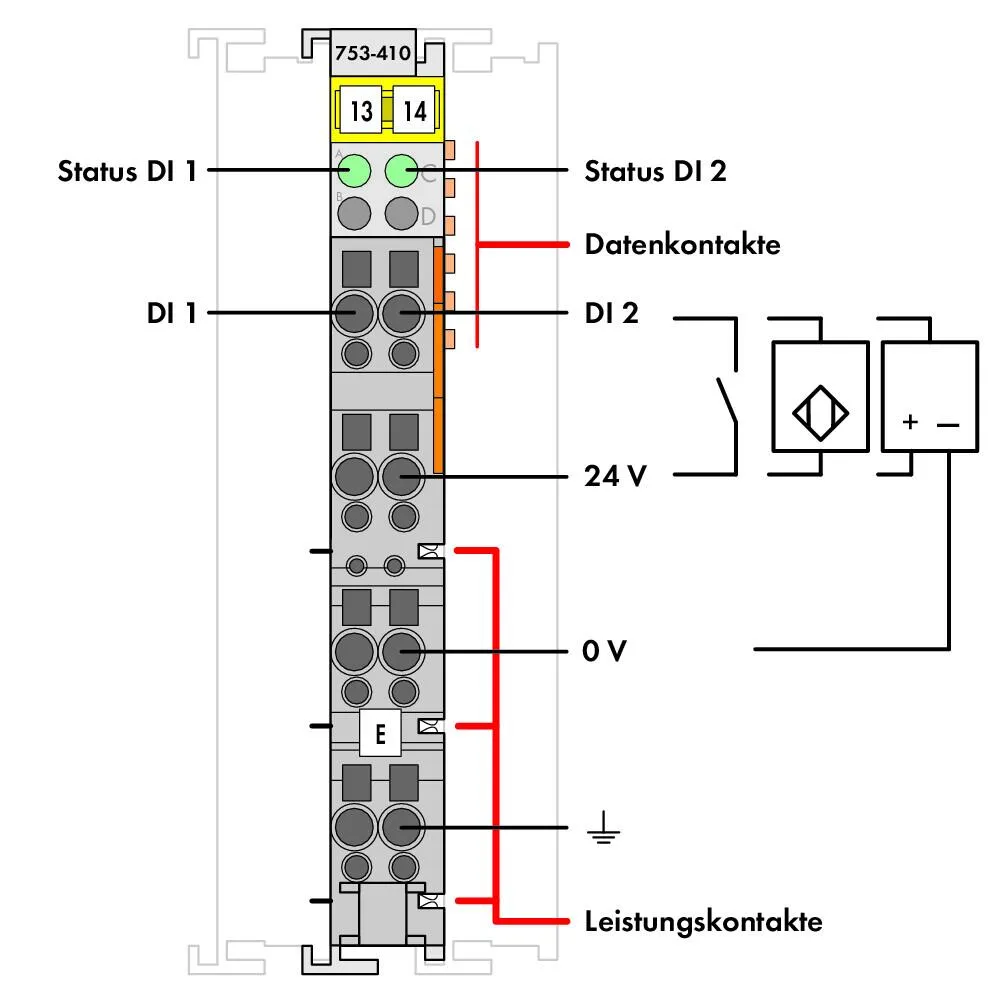

| Indicators | LED (A, C) green: Status DI 1, DI 2 |
| Number of incoming power jumper contacts | 3 |
| Number of outgoing power jumper contacts | 3 |
| Current carrying capacity (power jumper contacts) | 10 A |
Connection data
| Connection technology: I/O | 8 x CAGE CLAMP® (inputs) |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Input |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 9 … 10 mm / 0.35 … 0.39 inches |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69.8 mm / 2.748 inches |
| Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | pluggable |
Material data
| Color | light gray |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 0.837 MJ |
| Weight | 38.5 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-4, marine applications |
| Exposure to pollutants | per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | Box |
| Country of origin | DE |
| GTIN | 4045454497118 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32151705 |
|---|---|
| eCl@ss 10.0 | 27-24-26-04 |
| eCl@ss 9.0 | 27-24-26-04 |
| ETIM 9.0 | EC001599 |
| ETIM 10.0 | EC001599 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 25550-51-0, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | 4-Methyl-1,2-cyclohexanedicarboxylic anhydride, Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | 343252a9-7406-4f3f-8cbc-0027f1bf7325 |
| SCIP notification number (Belgium) | 0a4323af-7255-4283-bd0f-14afc914ff53 |
| SCIP notification number (Bulgaria) | a9f22742-10a1-45d8-b0e2-756a83b06ec9 |
| SCIP notification number (Czech Republic) | 8e3bd5ec-d5f7-416a-bf74-fa6a76944516 |
| SCIP notification number (Denmark) | 2898a712-a1b2-4e37-841b-3e1d80430b37 |
| SCIP notification number (Finland) | 208dee81-952a-4326-ab8f-204f5f2ce364 |
| SCIP notification number (France) | 1f395e57-f97c-485e-a54f-f476b93432d0 |
| SCIP notification number (Germany) | 31c4d7cc-a92f-4929-82fb-47ba640b4d95 |
| SCIP notification number (Hungary) | bd7f9592-2679-4b65-aea6-bdd975da75e0 |
| SCIP notification number (Italy) | ec94f603-95fe-48a7-ab69-569f744b7a81 |
| SCIP notification number (Netherlands) | f8893016-14b4-4b8f-a259-35bdfde150b5 |
| SCIP notification number (Poland) | 56309d52-0542-4609-8f1c-d123eba97f2d |
| SCIP notification number (Romania) | 52969ad8-f5a8-48d0-8b2d-f75ebf80e148 |
| SCIP notification number (Sweden) | 89f81ec9-fe64-4bae-a49c-8ec9f09df88a |
