Wago 750-554
This analog output module generates standard 4–20 mA signals.The output signal is electrically isolated and transmitted with a resolution of 12 bits.Power is derived from the field side.
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
This analog output module generates standard 4–20 mA signals.The output signal is electrically isolated and transmitted with a resolution of 12 bits.Power is derived from the field side.
Specification
Technical data
| Number of analog outputs | 2 |
|---|---|
| Total number of channels (module) | 2 |
| Signal type | Current |
| Signal type (current) | 4 … 20 mADC |

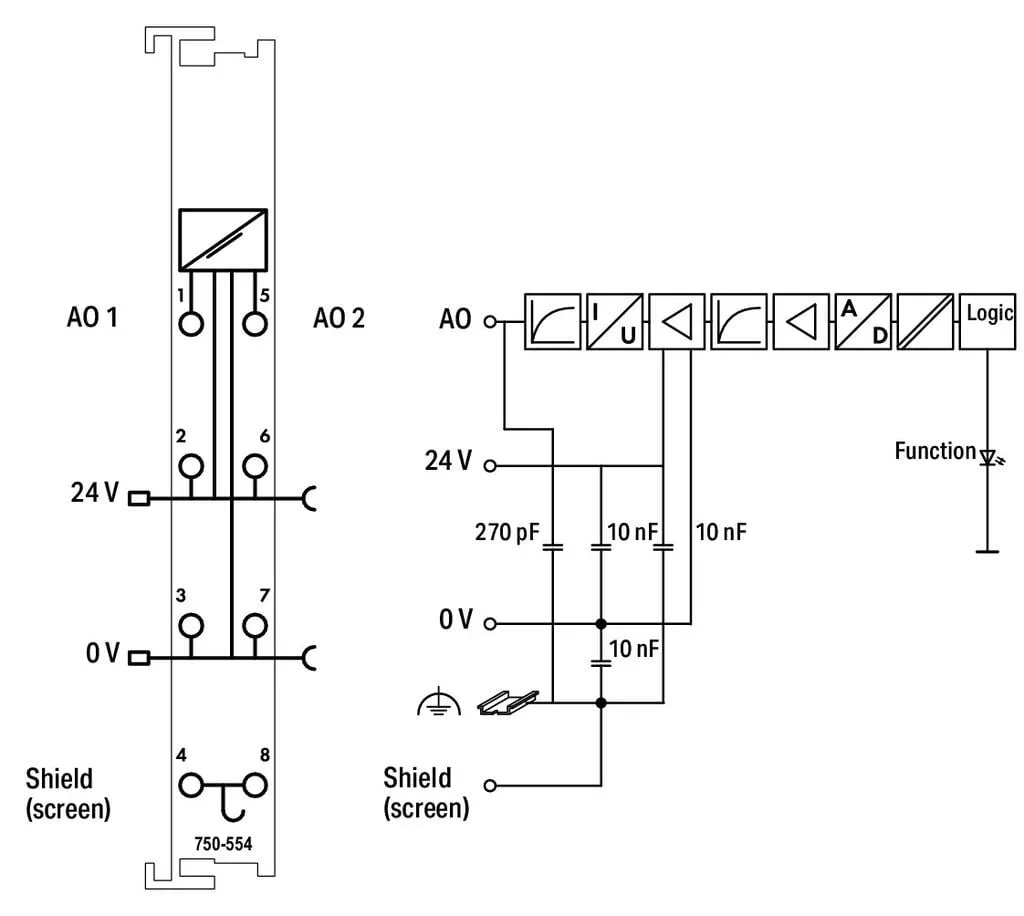

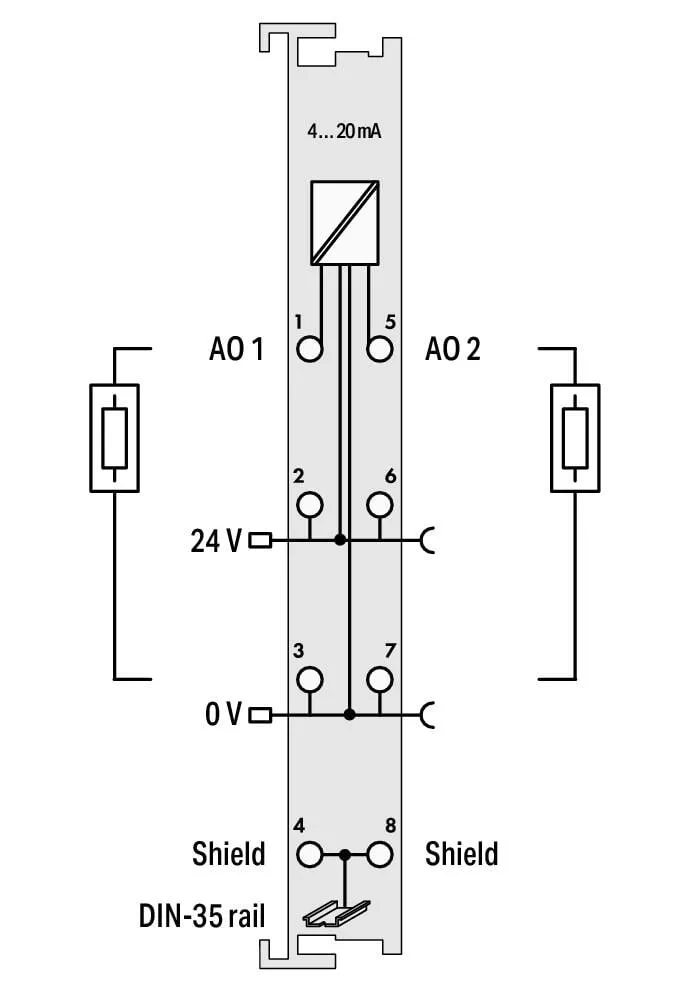

| Actuator connection | 2 x (2-wire) |
| Resolution [bit] | 12 Bit |
| Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) |
| Load impedance (current output) | ≤ 600 Ω |
| Conversion time (typ.) | 2 ms |
| Measurement error (reference temperature) | 25 °C |
| Measurement error, deviation (max.) from the upper-range value | 0.1 % |
| Temperature error (max.) of the upper-range value | 0.015 %/K |
| Output error, deviation (max.) of the upper-range value | 0.1 % |
| Temperature error (max.) of the output range value | 0.015 %/K |
| Linearity | ±10 µA |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 70 mA |
| Supply voltage (field) | 24 VDC (-25 … +30 %); via power jumper contacts (power supply via blade contact; transmission (field side supply voltage only) via spring contact) |
| Isolation | 500 V system/field |
| Indicators | LED (A, C) green: Function AO 1, AO 2 |
| Number of incoming power jumper contacts | 2 |
| Number of outgoing power jumper contacts | 2 |
Connection data

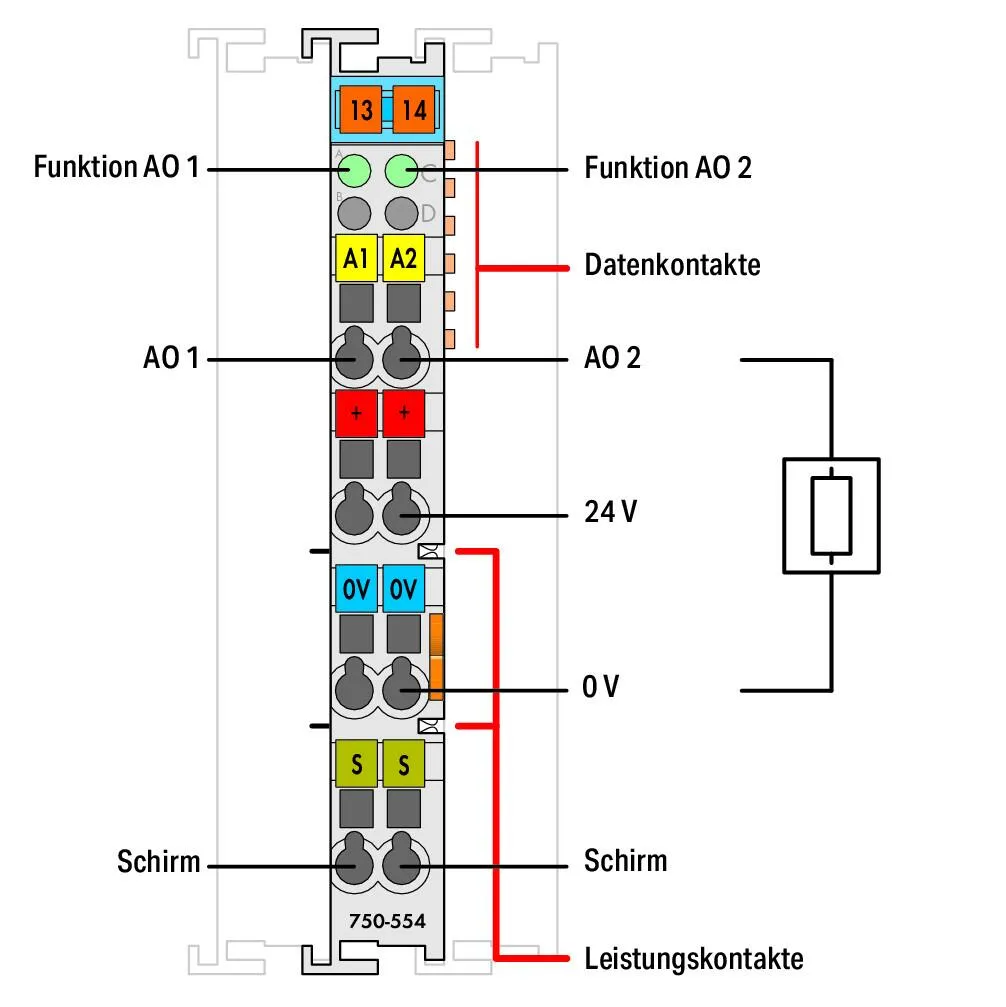

| Connection technology: I/O | 8 x CAGE CLAMP® |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Inputs/Outputs |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69.8 mm / 2.748 inches |
| Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | fixed |
Material data
| Color | light gray |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 0.766 MJ |
| Weight | 50 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-4, marine applications |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454393663 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32101506 |
|---|---|
| eCl@ss 10.0 | 27-24-26-01 |
| eCl@ss 9.0 | 27-24-26-01 |
| ETIM 9.0 | EC001596 |
| ETIM 10.0 | EC001596 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | 35f566e8-d312-42ff-b4a6-1f8c2b60751e |
| SCIP notification number (Belgium) | a404b2ad-7af1-40f9-b56a-8718cc931dbf |
| SCIP notification number (Bulgaria) | cecdce1f-f941-4c5a-9bc0-cfb02191a273 |
| SCIP notification number (Czech Republic) | 85d34d70-6be0-4fa3-96a3-3e33f73aed8d |
| SCIP notification number (Denmark) | 37d773df-f136-4b2f-b0ce-1767ce3b1d51 |
| SCIP notification number (Finland) | 13cf3d49-621f-4999-a455-f0d2089b0c35 |
| SCIP notification number (France) | 568a51b4-c456-4a1f-89d6-505b002b39ec |
| SCIP notification number (Germany) | 7d041857-376b-439f-bb98-9198fedcd5e4 |
| SCIP notification number (Hungary) | d9b0ce0c-3638-4ec6-8755-3ac5976027eb |
| SCIP notification number (Italy) | a374cd64-575d-40d9-9489-21872f8a9141 |
| SCIP notification number (Netherlands) | 4bc0c674-9882-41a6-b2a6-36059cdd07ed |
| SCIP notification number (Poland) | c5d33d70-50a4-4c03-8a60-f63738426648 |
| SCIP notification number (Romania) | 4502bac5-72d4-477b-b3cd-dc95431aefcc |
| SCIP notification number (Sweden) | c4d07446-a92f-44ee-9391-1702f52b6c79 |
