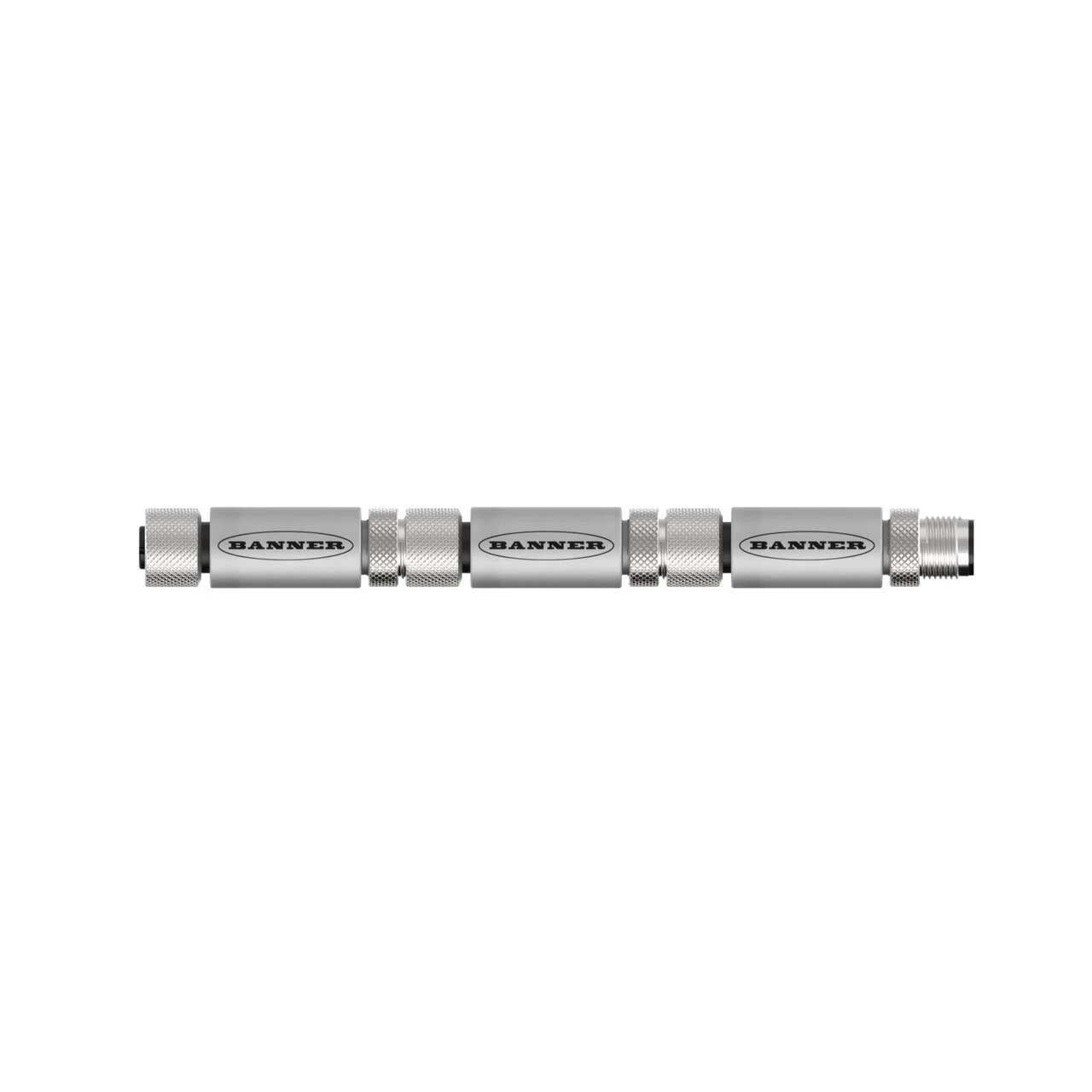

Banner Engineering TL15GYRQ

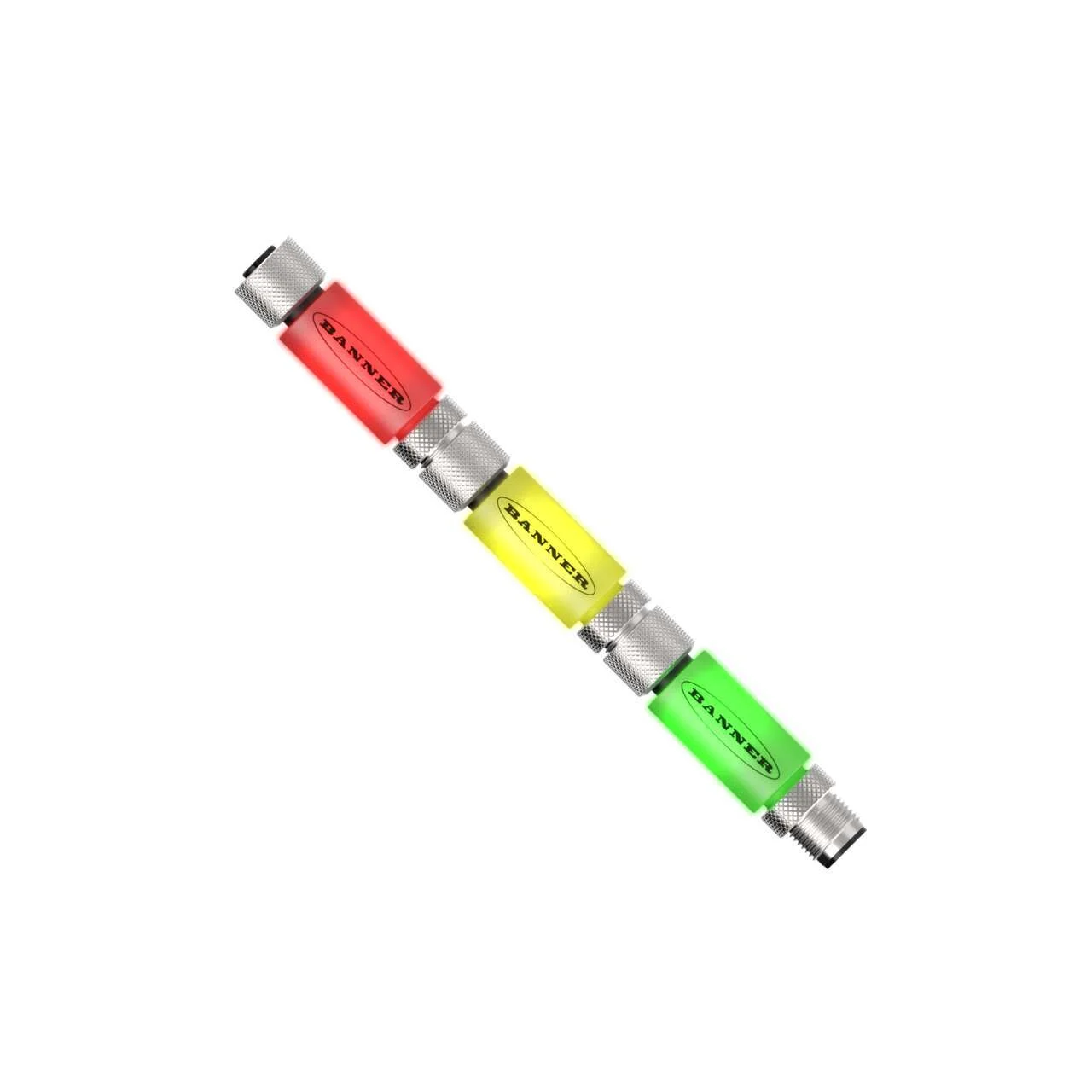

TL15 Series Kit: 3-Color In-Line Status Indicator
Voltage: 12 or 24 V dc; Housing: PVC; IP67
Input: PNP; Colors: Green, Yellow, Red
Male-Female 5-pin M12 Integr…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
TL15 Series Kit: 3-Color In-Line Status Indicator
Voltage: 12 or 24 V dc; Housing: PVC; IP67
Input: PNP; Colors: Green, Yellow, Red
Male-Female 5-pin M12 Integral QD
Specification
| Power | DC |
|---|---|
| Pfm Input | No |
| Non Illuminated | No |
| Ip Rating | IP66, IP67, IP68 |
| Display | No |
| Supply Voltage | 12/24 V dc |
| Item Status | RELEASED |
| Housing Style | Barrel – Straight |
| Primary Housing Material | PVC |
| Indication | Yes |
| Illumination | No |
| Mounting Thread | No Thread |
| Color Input Control | Individual (One wire/color, same number of colors as input wires) |
| Number Of Colors | 3 |
| Product Size (Mm) | 15 |
| Color Technology | Standard LED |
| Number Of Tower Light Segments | 3 |
| Color Option 1 | Green |
| Animation Option 1 | Solid On |
| Connection | Integral QD |
| Lumens Color 1 | 18 |
| Quick Disconnect Type | M12 |
| Color 1 Wavelength/Color Temp/Coordinates | 535 nm |
| Color Option 2 | Yellow |
| Animation Option 2 | Solid On |
| Lumens Color 2 | 10 |
| Color 2 Wavelength/Color Temp/Coordinates | 620 nm |
| Color Option 3 | Red |
| Animation Option 3 | Solid On |
| Lumens Color 3 | 22 |
| Color 3 Wavelength/Color Temp/Coordinates | 590 nm |
| Max Current Color (Ma) | 80 |
| Number Of Input Pins/Conductors | 5 |
| Input Type | Bimodal (PNP/NPN) |
| I/O Block Compatible | No |
| Physical Dimensions (Lxwxh Or Dxh Mm) | 15.0 X 58.0 |
| Environmental Rating | IP66; IP67; IP68 |
| Eye Shield | No |
| Max Op. Relative Humidity Non Condensing (%) | 95% @ 50°C |
| High Temperature (Up To 100 C) | 50 |
| Min Op. Temperature (C) | -40 |
| Storage Temp (C) | -40 to 70 |
| Feature: Washdown Rated | No |
| Feature: Audible | No |
| Feature: Cascade | Yes |
| Feature: Chemical Resistant | No |
| Multi Color Device | Simultaneous Colors On |
| Application: Traffic Light | No |
| Feature: Quick Disconnect | Yes |
| Wireless | No |
| U S B | No |
| Eplan Status | Published |
| Eplan Original Sent Date | 10/27/2022 |
