Wago 750-550/000-200
This analog output module generates standard 0–10 V signals.The output signal is electrically isolated and transmitted with a resolution of 12 bits.The outputs are short-circuit-protected.The internal…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

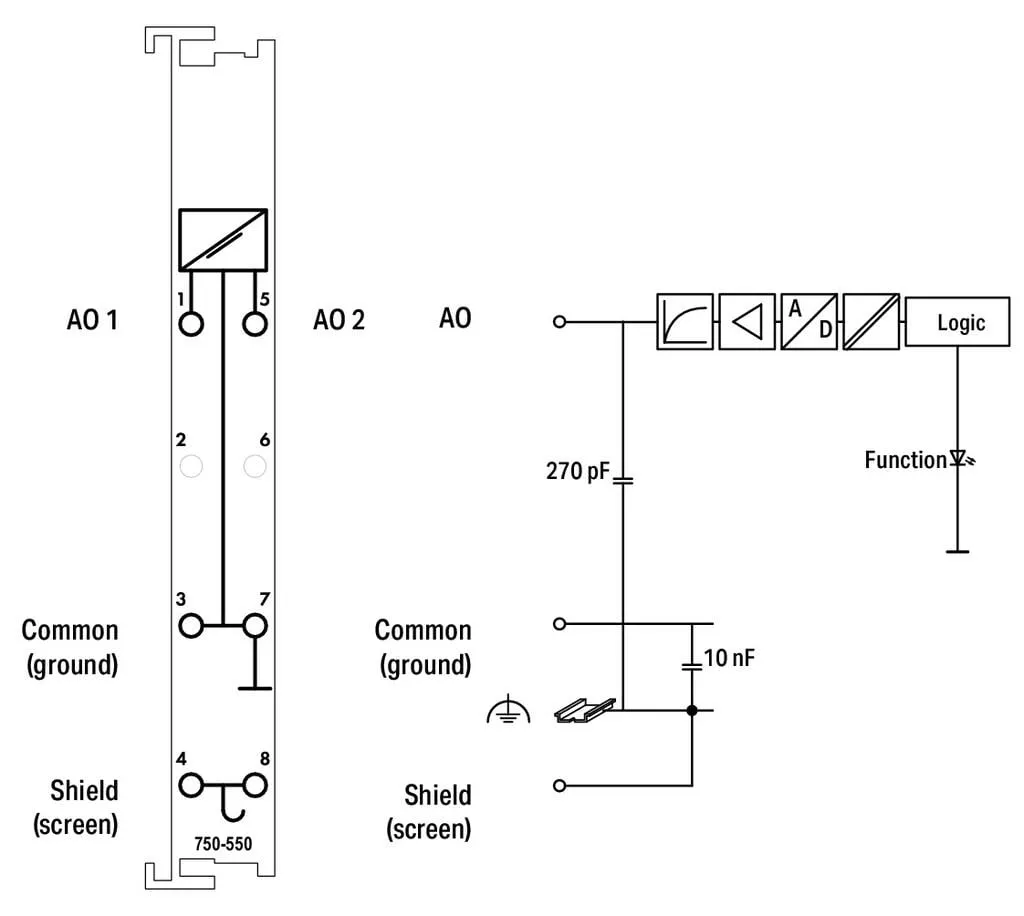

This analog output module generates standard 0–10 V signals.The output signal is electrically isolated and transmitted with a resolution of 12 bits.The outputs are short-circuit-protected.The internal system supply powers the module.The output channels have one common ground potential.
Specification
Technical data
| Number of analog outputs | 2 |
|---|---|
| Total number of channels (module) | 2 |
| Signal type | Voltage |
| Signal type (voltage) | 0 … 10 VDC |

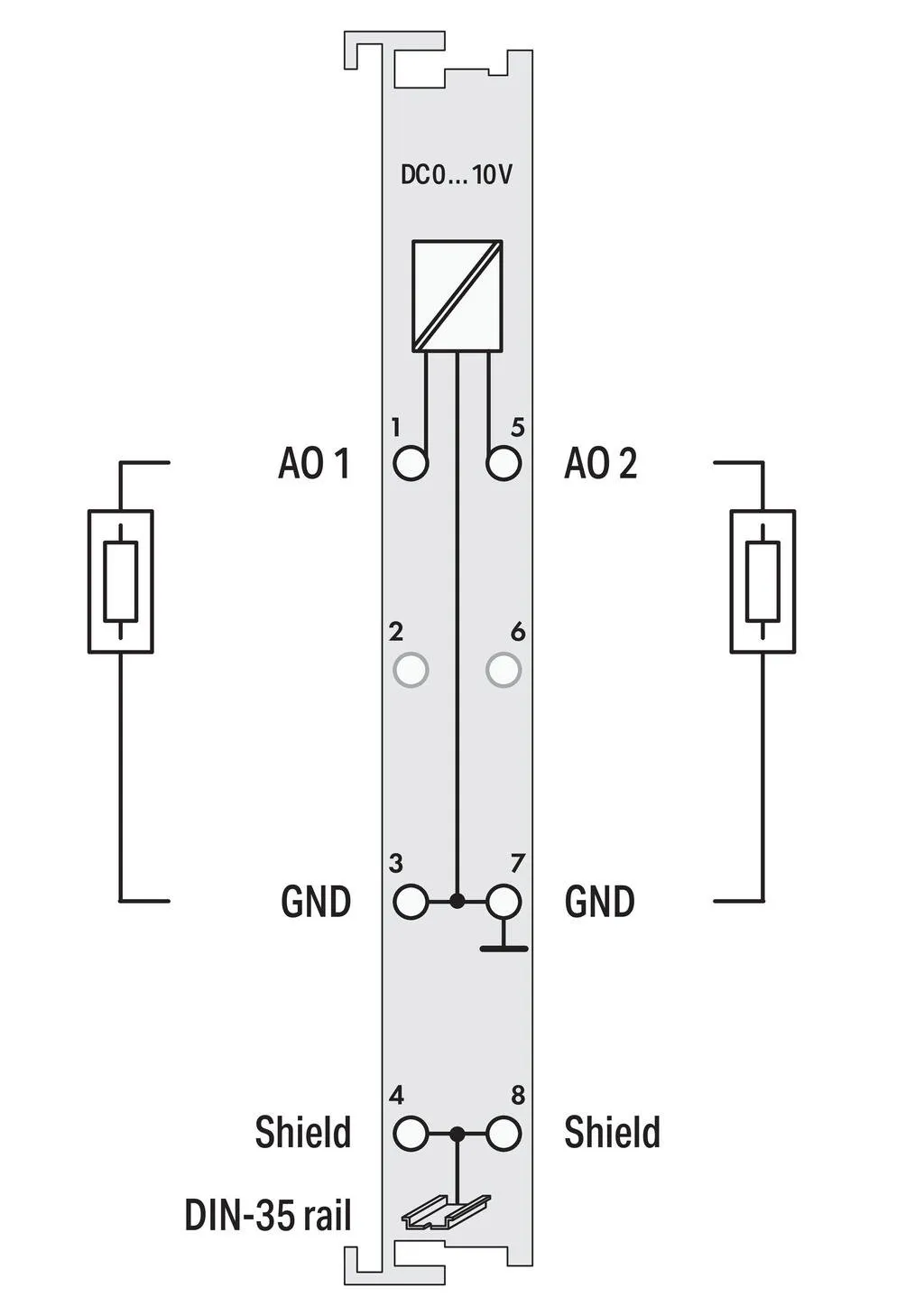

| Actuator connection | 2 x (2-wire) |
| Resolution [bit] | 12 Bit |
| Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) |
| Load impedance (voltage output) | ≥ 5 kΩ |
| Conversion time (typ.) | 2 ms |
| Measurement error (reference temperature) | 25 °C |
| Measurement error, deviation (max.) from the upper-range value | 0.1 % |
| Temperature error (max.) of the upper-range value | 0.01 %/K |
| Output error, deviation (max.) of the upper-range value | 0.1 % |
| Temperature error (max.) of the output range value | 0.01 %/K |
| Recovery time (typ.) | 0.3 ms |
| Linearity | ±10 mV |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 65 mA |
| Isolation | 500 V system/field |

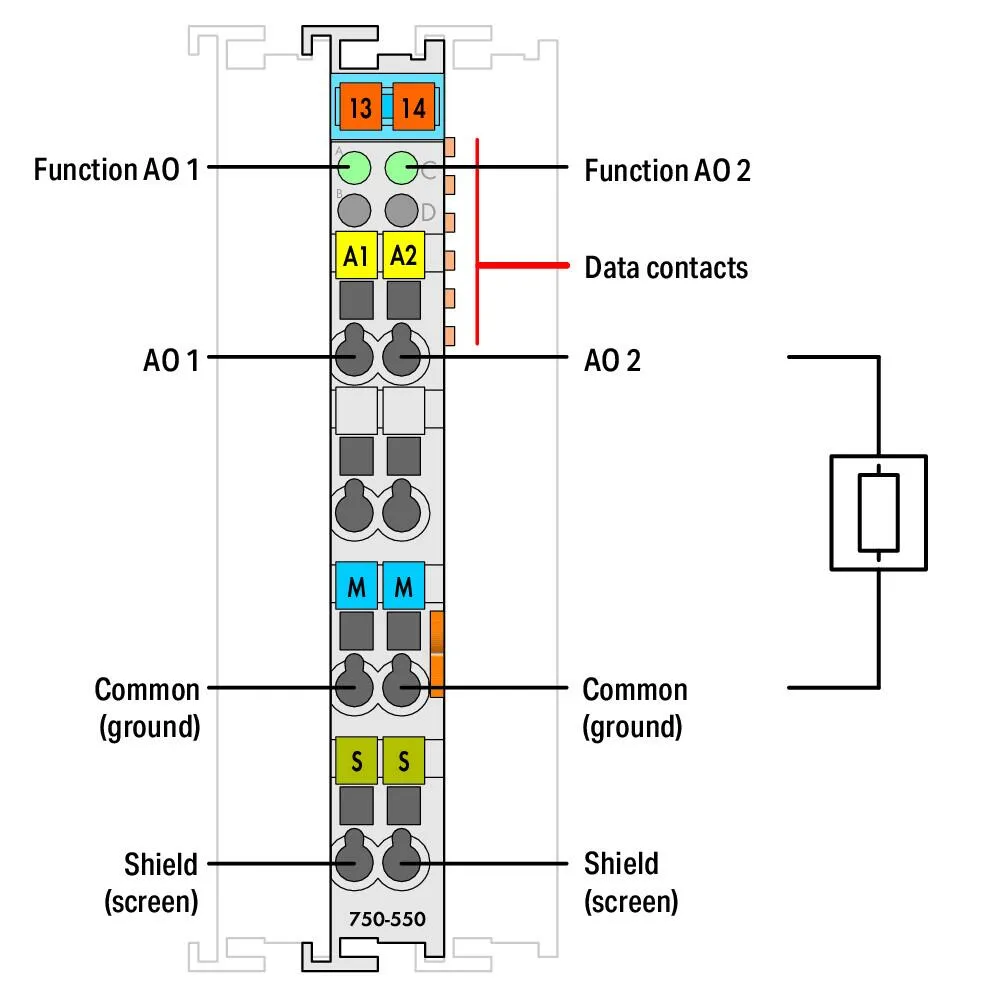

| Indicators | LED (A, C) green: Function AO 1, AO 2 |
Connection data
| Connection technology: I/O | 6 x CAGE CLAMP® |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Inputs/Outputs |
| Solid conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Fine-stranded conductor | 0.08 … 2.5 mm² / 28 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 69.8 mm / 2.748 inches |
| Depth from upper-edge of DIN-rail | 62.6 mm / 2.465 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Pluggable connector | fixed |
Material data
| Color | light gray |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 0.737 MJ |
| Weight | 47.7 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | 0 … +55 °C |
|---|---|
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | 0 … 2000 m / 0 … 6562 ft |
| Mounting position | Horizontal left, horizontal right, horizontal top, horizontal bottom, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Vibration resistance | 4g per IEC 60068-2-6 |
| Shock resistance | 15g per IEC 60068-2-27 |
| EMC immunity to interference | per EN 61000-6-2, marine applications |
| EMC emission of interference | per EN 61000-6-4, marine applications |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| Product Group | 15 (I/O System) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454393564 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32101513 |
|---|---|
| eCl@ss 10.0 | 27-24-26-01 |
| eCl@ss 9.0 | 27-24-26-01 |
| ETIM 9.0 | EC001596 |
| ETIM 10.0 | EC001596 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | e60824b2-8c52-49ac-aa2f-a3e0a200fb20 |
| SCIP notification number (Belgium) | 9430cdf5-e214-44fb-a3d1-a5594adfe3f4 |
| SCIP notification number (Bulgaria) | 35457802-9409-4307-8d3c-2376d900ce91 |
| SCIP notification number (Czech Republic) | d16fdf22-440e-492f-9321-d1193755447b |
| SCIP notification number (Denmark) | db1b6d3f-a223-4068-aa9f-79542550b594 |
| SCIP notification number (Finland) | cc27bf94-eb5c-4d5e-b46e-5a6976327ccc |
| SCIP notification number (France) | 2571ae6c-99ec-4242-933f-0525da3fae93 |
| SCIP notification number (Germany) | 3ecabe4d-2861-4c8e-9c5a-603e29d8ffa4 |
| SCIP notification number (Hungary) | 81cf4c79-a122-4236-95e8-1f834804b311 |
| SCIP notification number (Italy) | 540765f1-b20f-45a2-8571-6f416fe8510a |
| SCIP notification number (Netherlands) | 46a419c9-54a4-48a7-bea3-11724859f38e |
| SCIP notification number (Poland) | 0f931342-1a20-488f-a723-65eaa2a1a590 |
| SCIP notification number (Romania) | cc1be706-cfd4-49a6-a429-5cada42a9578 |
| SCIP notification number (Sweden) | c94d5d41-460d-4136-a291-b2fe2a371567 |
