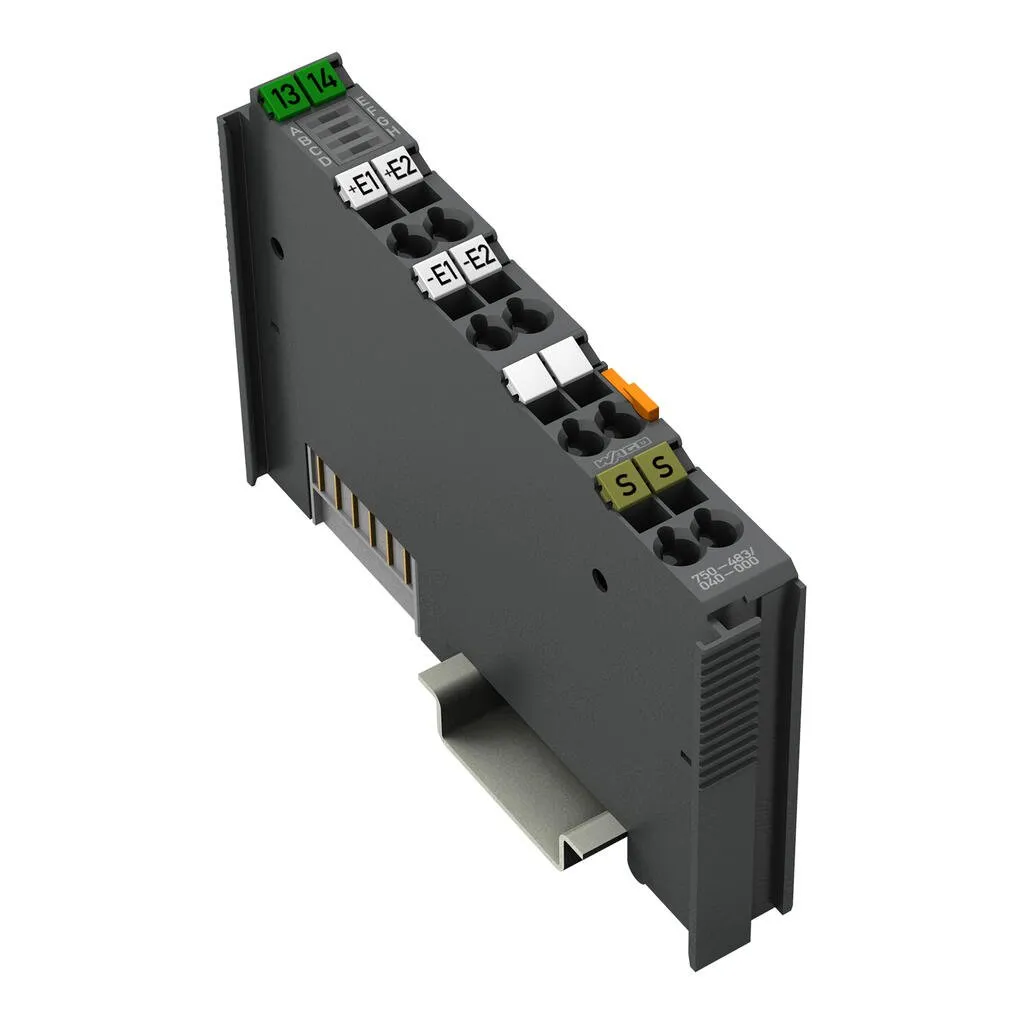

Wago 750-483/040-000
This analog input module processes differential signals ranging from 0 to 30 VDC.The input signal of each channel is electrically isolated and is transmitted with a resolution of 14 bits.The system su…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

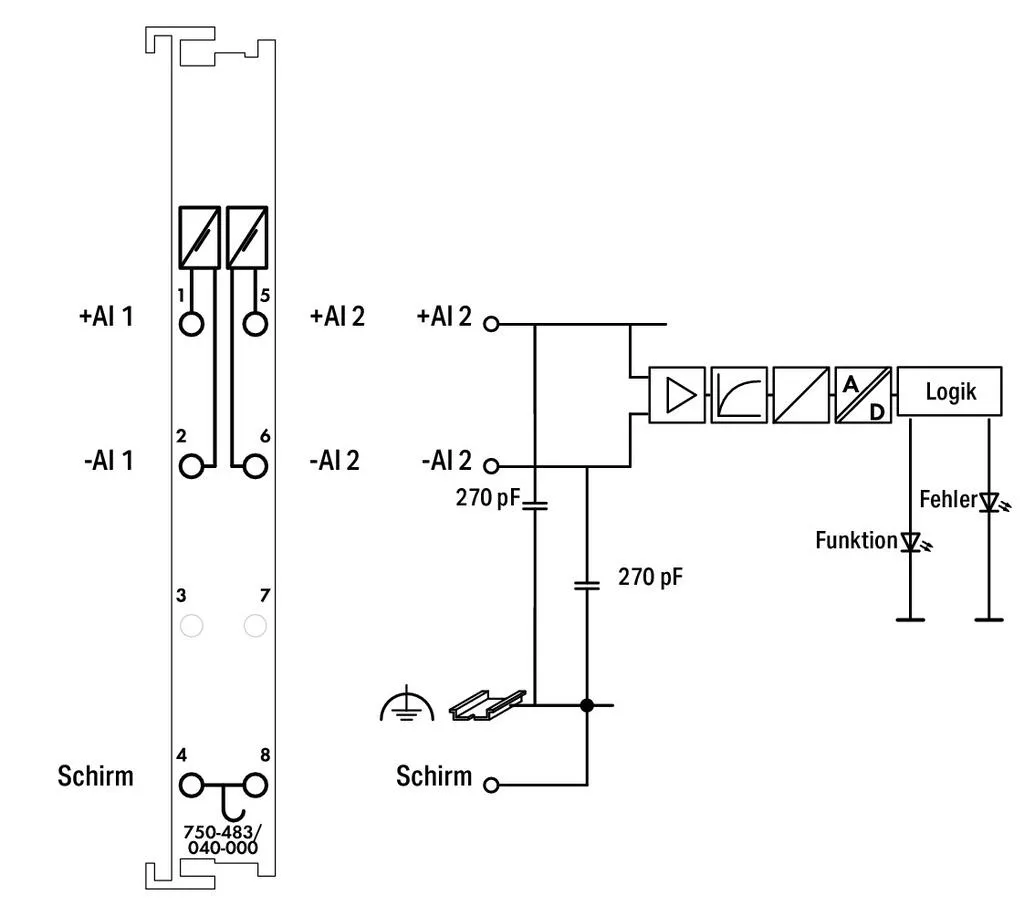

This analog input module processes differential signals ranging from 0 to 30 VDC.The input signal of each channel is electrically isolated and is transmitted with a resolution of 14 bits.The system supply powers the module. The shield directly connects to the DIN-rail.Measured value acquisition: Time synchronous within the moduleMeasurement range overflow/underflow: Status byte and LEDConversion method: SAR (Successive Approximation Register)Operating mode: Continuously sampling (default)Protection: RC circuitThe device is ideal for operation in extreme environments thanks to:An extended temperature rangeGreater immunity to impulse voltages and electromagnetic interferenceHigher vibration and shock resistance
Specification
Technical data
| Number of analog inputs | 2 |
|---|---|
| Total number of channels (module) | 2 |
| Signal type | Voltage |
| Signal type (voltage) | 0 … 30 VDC |

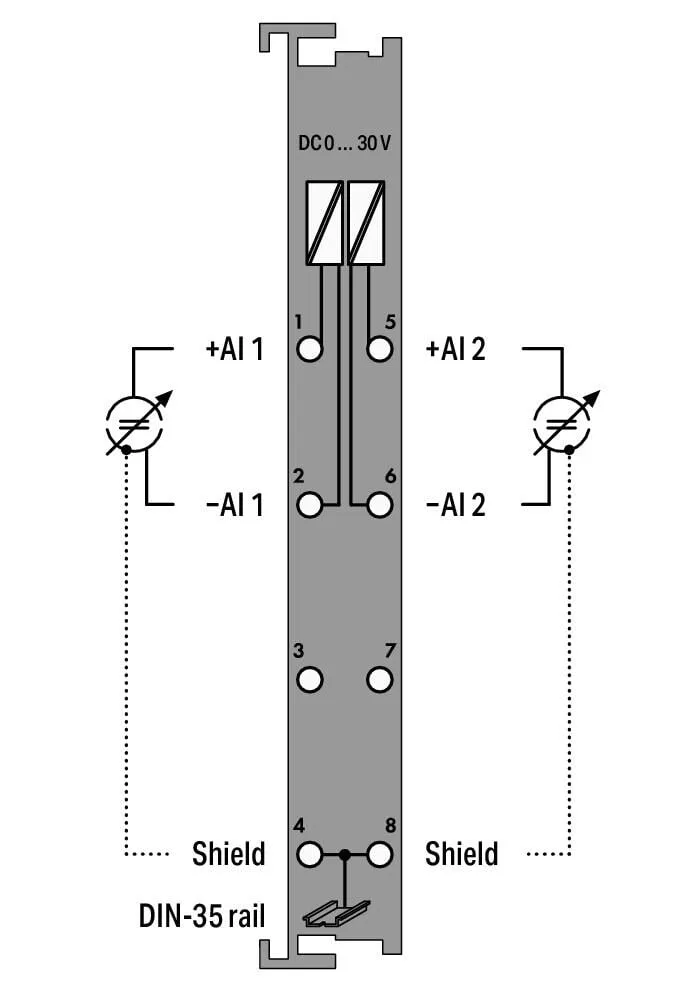

| Sensor connection | 2 x (2-wire) |
| Input filter | Low pass (1st order), fG = 5 kHz |
| Signal characteristics | Differential |
| Resolution [bit] | 14 Bit |
| Data width | 2 x 16-bit data; 2 x 8-bit control/status (optional) |
| Admissible continuous overload | 60 V |
| Crosstalk attenuation | 80 dB |
| Monotonicity without error code | yes |
| Internal resistance | 1000 kΩ |
| Conversion time (typ.) | 1 ms |
| Measurement error (reference temperature) | 25 °C |
| Measurement error, deviation (max.) from the upper-range value | 0.1 % |
| Measurement error over entire temperature range | ≤ 0.4 % |
| Temperature error (max.) of the upper-range value | 0.01 %/K |
| Sampling duration | 5 µs |
| Sampling delay (channel/channel) | 1 µs |
| Sampling delay (module) | 1 ms |
| Sampling repetition time | 1 ms |
| Value of the least significant bit (LSB) | 1.8 mV |
| Supply voltage (system) | 5 VDC; via data contacts |
| Current consumption (5 V system supply) | 80 mA |
| Dielectric strength | 510 VAC / 775 VDC; per EN 60870-2-1 |
| Rated impulse withstand voltage | 1 kV |

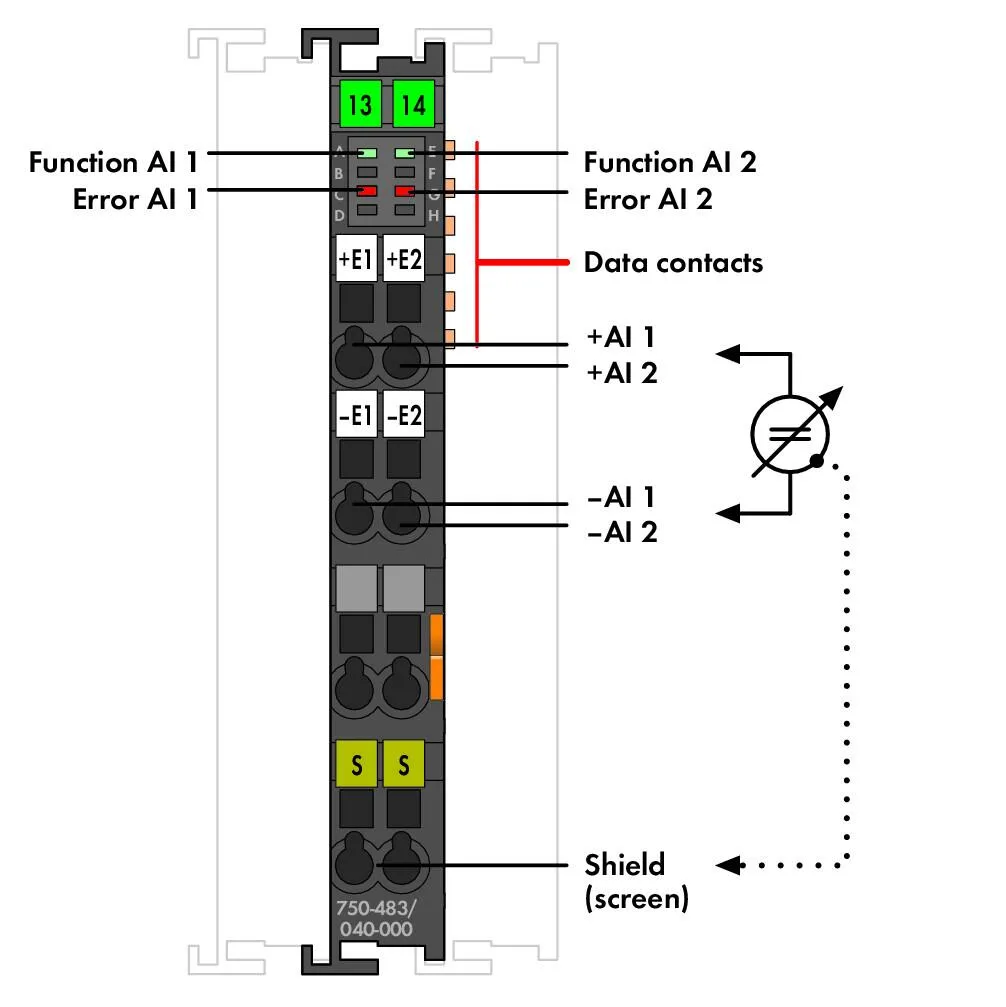

| Indicators | LED (A, E) green: Function AI 1, AI 2; LED (C, G) red: Error AI 1, AI 2 |
Connection data
| Connection technology: I/O | 6 x CAGE CLAMP® |
|---|---|
| Connectable conductor materials | Copper |
| Connection type | Inputs/Outputs |
| Solid conductor | 0.25 … 2.5 mm² / 24 … 14 AWG |
| Fine-stranded conductor | 0.25 … 2.5 mm² / 24 … 14 AWG |
| Strip length | 8 … 9 mm / 0.31 … 0.35 inches |
Physical data
| Width | 12 mm / 0.472 inches |
|---|---|
| Height | 100 mm / 3.937 inches |
| Depth | 67.8 mm / 2.669 inches |
| Depth from upper-edge of DIN-rail | 60.6 mm / 2.386 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|
Material data
| Color | dark gray |
|---|---|
| Housing material | Polycarbonate; polyamide 6.6 |
| Fire load | 0.94 MJ |
| Weight | 47.2 g |
| Conformity marking | CE |
Environmental requirements
| Ambient temperature (operation) | -40 … +70 °C |
|---|---|
| Ambient temperature (installation) | -20 … +70 °C |
| Ambient temperature (storage) | -40 … +85 °C |
| Protection type | IP20 |
| Pollution degree | 2 per IEC 61131-2 |
| Operating altitude | without temperature derating: 0 … 2000 m; with temperature derating: 2000 … 5000 m (0.5 K/100 m); 5000 m (max.) |
| Mounting position | Horizontal left, horizontal up, vertical top and vertical bottom |
| Relative humidity (without condensation) | 95 % |
| Relative humidity (with condensation) | Short-term condensation per Class 3K7/IEC EN 60721-3-3 and E-DIN 40046-721-3 (except for wind-driven precipitation, water and ice formation) |
| Vibration resistance | According to type test for marine classification (ABS, BV, DNV, IACS, LR): acceleration: 5g, IEC 60068-2-6, EN 60870-2-2, IEC 60721-3-1, -3, EN 50155, EN 61373 |
| Shock resistance | per IEC 60068-2-27 (10g/16 ms/half-sine/1,000 shocks; 25g/6 ms/half-sine/1,000 shocks), EN 50155, EN 61373 |
| EMC immunity to interference | per EN 61000-6-1, -2; EN 61131-2; marine applications; EN 50121-3-2; EN 50121-4, -5; EN 60255-26; EN 60870-2-1; EN 61850-3; IEC 61000-6-5; IEEE 1613; VDEW: 1994 |
| EMC emission of interference | per EN 61000-6-3, -4, EN 61131-2, EN 60255-26, marine applications, EN 60870-2-1, EN 61850-3, EN 50121-3-2, EN 50121-4, -5 |
| Exposure to pollutants | Per IEC 60068-2-42 and IEC 60068-2-43 |
| Permissible H<sub>2</sub>S contaminant concentration at a relative humidity <lt/> 75 % | 10 ppm |
| Permissible SO<sub>2</sub> contaminant concentration at a relative humidity <lt/> 75 % | 25 ppm |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4055143673105 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 32101502 |
|---|---|
| eCl@ss 10.0 | 27-24-26-01 |
| eCl@ss 9.0 | 27-24-26-01 |
| ETIM 9.0 | EC001596 |
| ETIM 10.0 | EC001596 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Diboron trioxide, Lead, Lead monoxide, Perfluorobutane sulfonic acid (PFBS) and its salts |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Austria) | 88c29144-d1fc-49b2-8e68-bc055d945552 |
| SCIP notification number (Belgium) | 898d25f6-cd94-403e-9fcc-ef51e7817aa3 |
| SCIP notification number (Bulgaria) | 7a92a64f-05df-4616-b841-0155becfd1a2 |
| SCIP notification number (Czech Republic) | 5dd17aab-2422-4151-ae51-1339481a3dd3 |
| SCIP notification number (Denmark) | 07454096-a8da-4ae0-8da9-e7daafeef134 |
| SCIP notification number (Finland) | 0545084d-97c4-4589-984b-9639d755fafa |
| SCIP notification number (France) | dd6bc72b-0bbc-486e-9432-f2b275b45f7b |
| SCIP notification number (Germany) | 6ebf8f20-f7af-4c94-b2d0-898c1764c386 |
| SCIP notification number (Hungary) | 8a361b79-0c54-4132-acc4-000b26910056 |
| SCIP notification number (Italy) | 624f50ee-08ea-4990-9953-2826db409939 |
| SCIP notification number (Netherlands) | 171d12aa-7759-4576-a076-3878440baf80 |
| SCIP notification number (Poland) | 3915c769-dabf-4715-bbf4-57b43c0a5b4a |
| SCIP notification number (Romania) | abf9a16e-6e88-4a20-ad6b-a33a8dc30610 |
| SCIP notification number (Sweden) | 8839f224-8496-4558-8e17-400be469ac5f |
