Wago 706-3057/300-300
Short description:WAGO’s Interface Cables provide fast and easy connection of WAGO I/O Modules equipped with a 20-pole pluggable connector (750‐1400, ‐1402, ‐1500, ‐1501, ‐1502) to the appropriate int…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

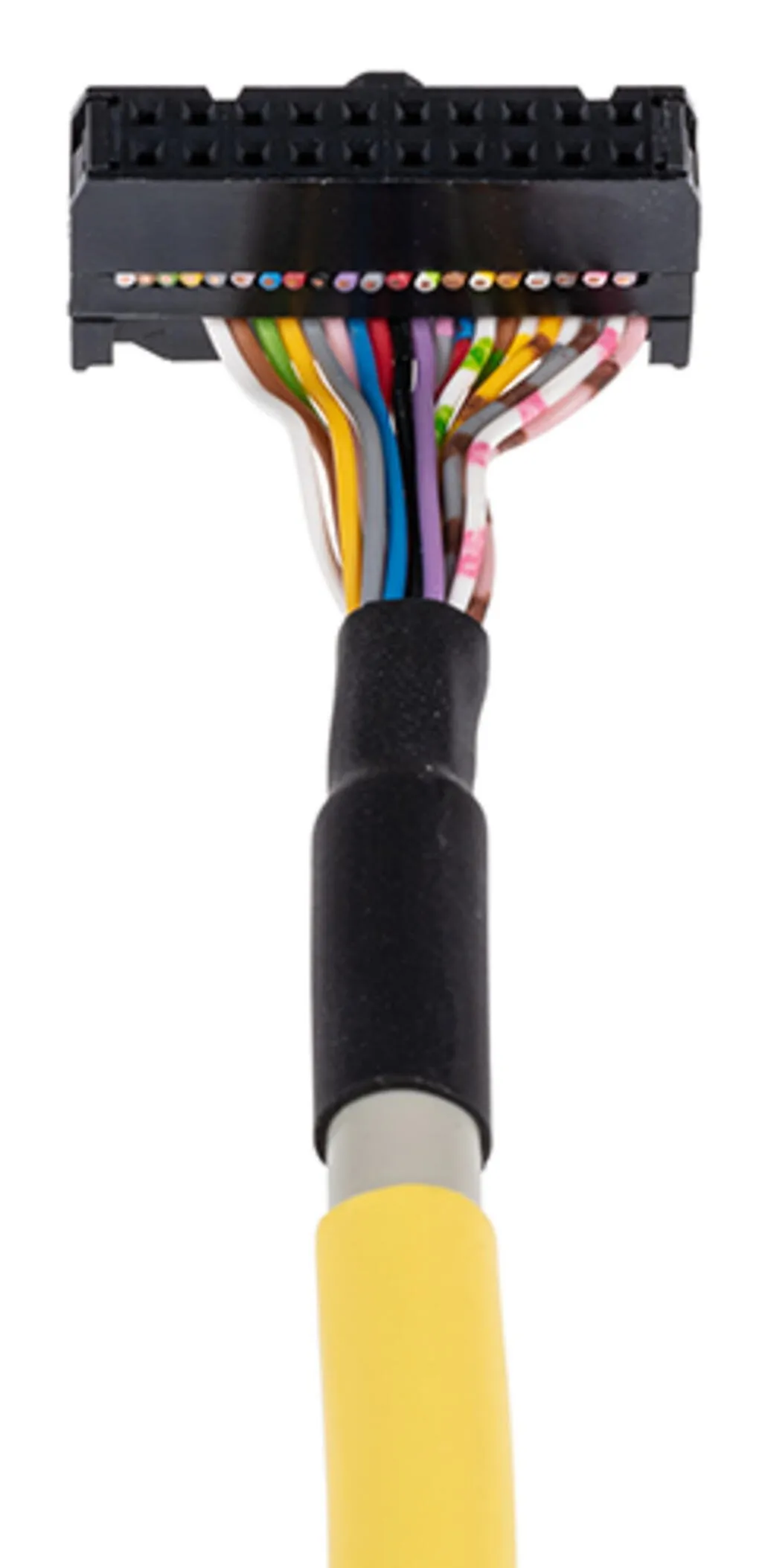

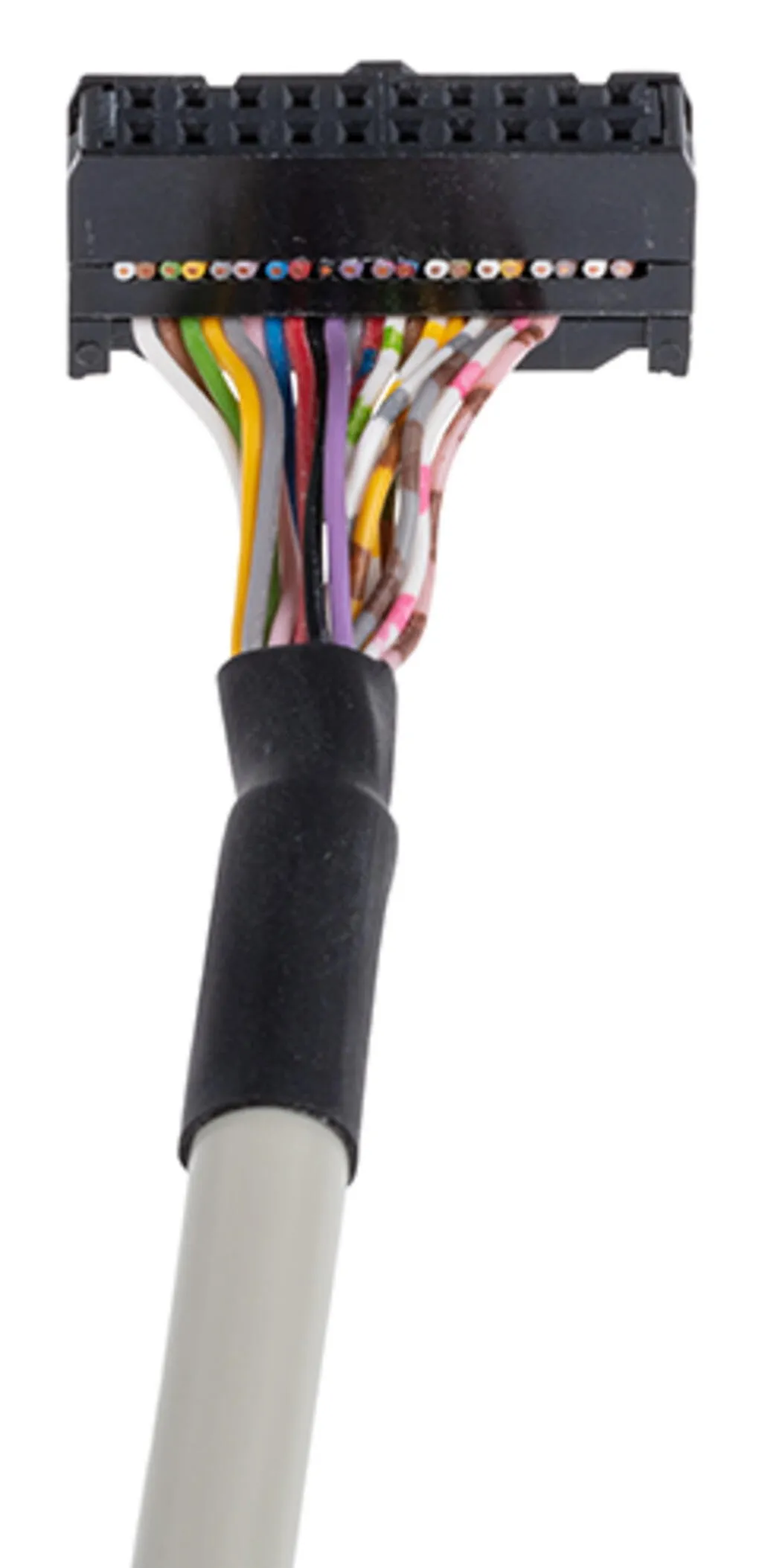

Short description:WAGO’s Interface Cables provide fast and easy connection of WAGO I/O Modules equipped with a 20-pole pluggable connector (750‐1400, ‐1402, ‐1500, ‐1501, ‐1502) to the appropriate interface or relay modules (16‐channel) featuring a 20-pole pluggable connector.The cables are available in 1-, 2- and 3-meter lengths; each has one 20-pole pluggable connector at both ends.
Specification
Notes
| Note | When using more than 10 wires, the maximum current per wire must be reduced to 0.7 A. |
|---|
Electrical data
| Inputs/outputs | 16 digital inputs or outputs |
|---|---|
| Operating voltage | ≤ 35 VAC/VDC |
| Current per wire (max.) | 1 A |
Compatibility - Schneider
| Schneider Modicon Quantum | 140 DDI 364 00, 140 DDO 364 00 |
|---|---|
| Schneider TSX | TSX DEY 16FK, TSX DEY 32D2K, TSX DEY 64D2K, TSX DEZ 12D2K, TSX DMY 28FK, TSX DMY 28RFK, TSX DMZ 28DTK, TSX DMZ 64DTK, TSX DSY 32T2K, TSX DSY 64T2K |
Compatibility - WAGO
| WAGO I/O System 750 | 750-1400, 750-1500, 750-1502 |
|---|
Connection data
| Cable type | LiYY |
|---|---|

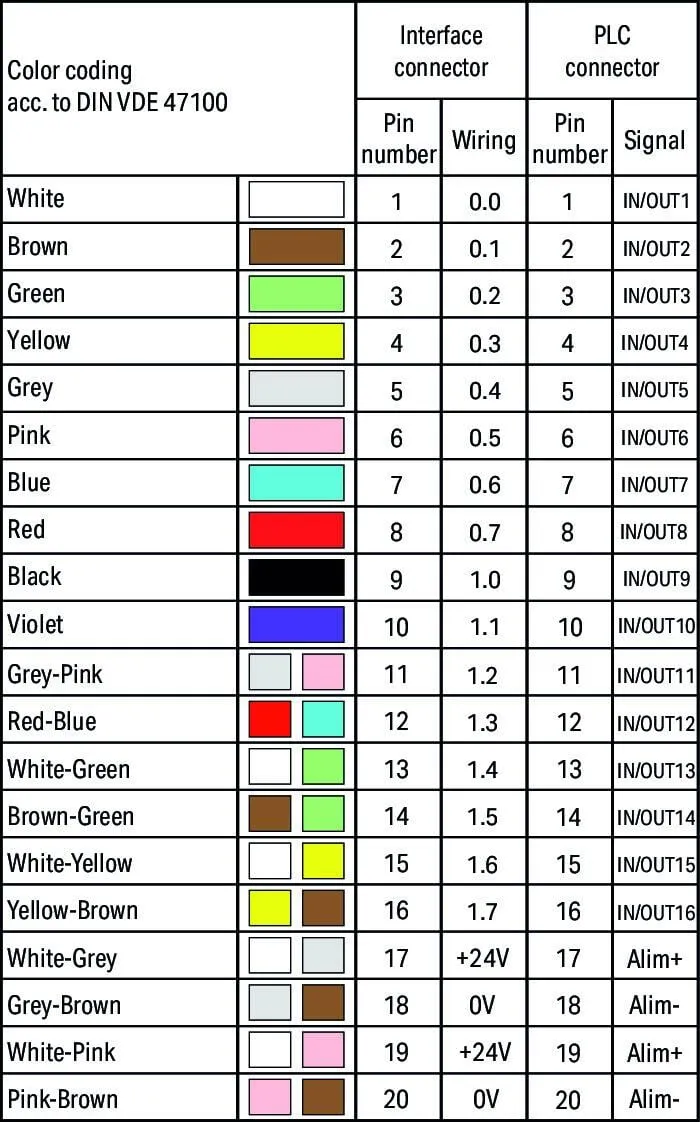

| Color code | per DIN VDE 47100 |
Connection data - Connection 1

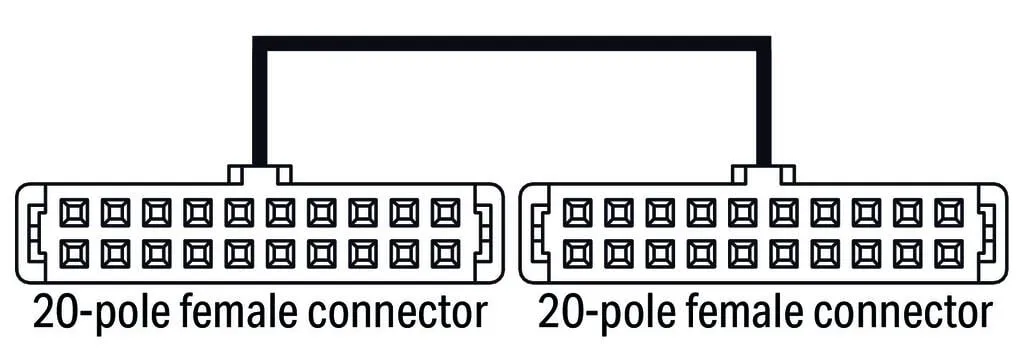

| Pluggable connector | Pluggable connector per DIN 41651; female connector |
|---|---|
| Pole number 1 | 20 |
| Connection type | System |
| Wire cross-section | 0.14 mm² |
Connection data - Connection 2
| Connector | Pluggable connector per DIN 41651; female connector |
|---|---|
| Pole number | 20 |
| Connection type | System |
| Wire cross-section | 0.14 mm² |
Physical data
| Cable length | 3 m |
|---|
Material data
| Weight | 231.3 g |
|---|
Environmental requirements
| Ambient temperature (operation) | -20 … +50 °C |
|---|
Commercial data
| Product Group | 30 (WAGO France) |
|---|---|
| PU (SPU) | 1 pcs |
| Packaging type | not specified |
| Country of origin | FR |
| GTIN | 4045454873783 |
| Customs tariff number | 85444290900 |
Product Classification
| UNSPSC | 26121629 |
|---|---|
| eCl@ss 10.0 | 27-06-03-11 |
| eCl@ss 9.0 | 27-06-03-11 |
| ETIM 9.0 | EC000237 |
| ETIM 10.0 | EC000237 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
