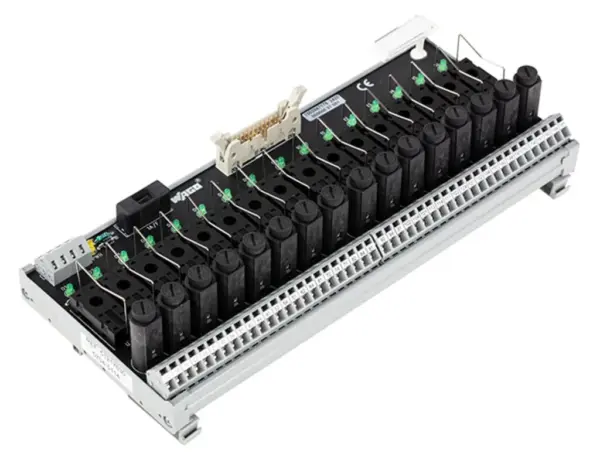

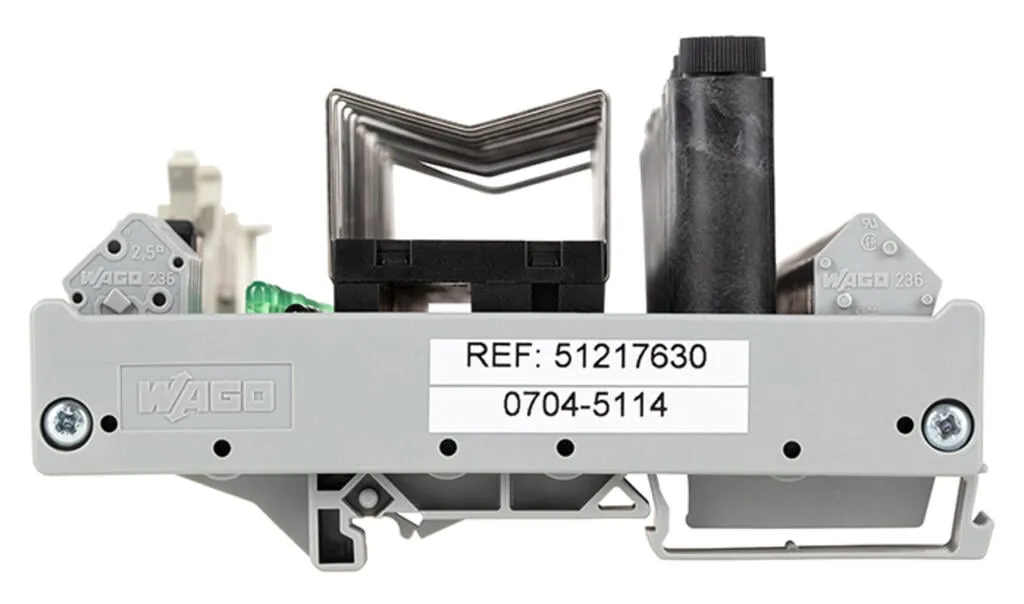

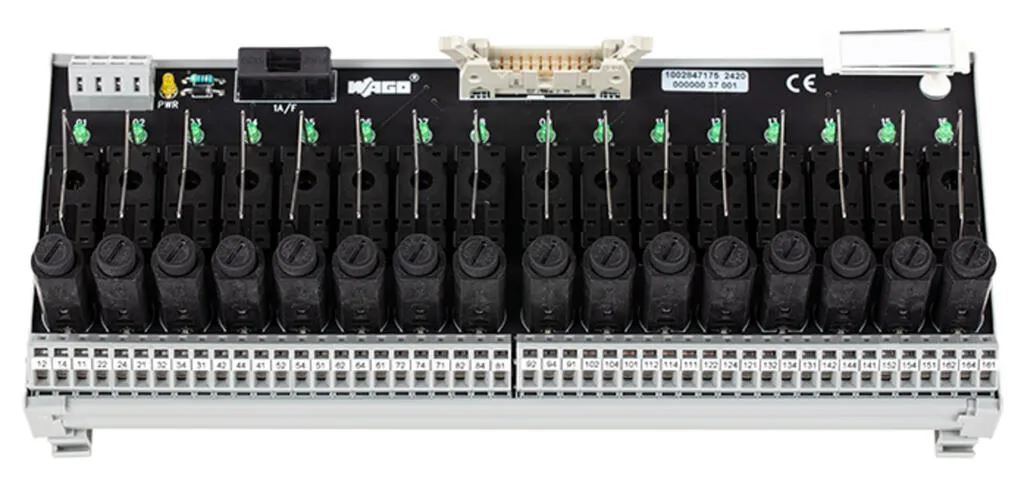

Wago 704-5114

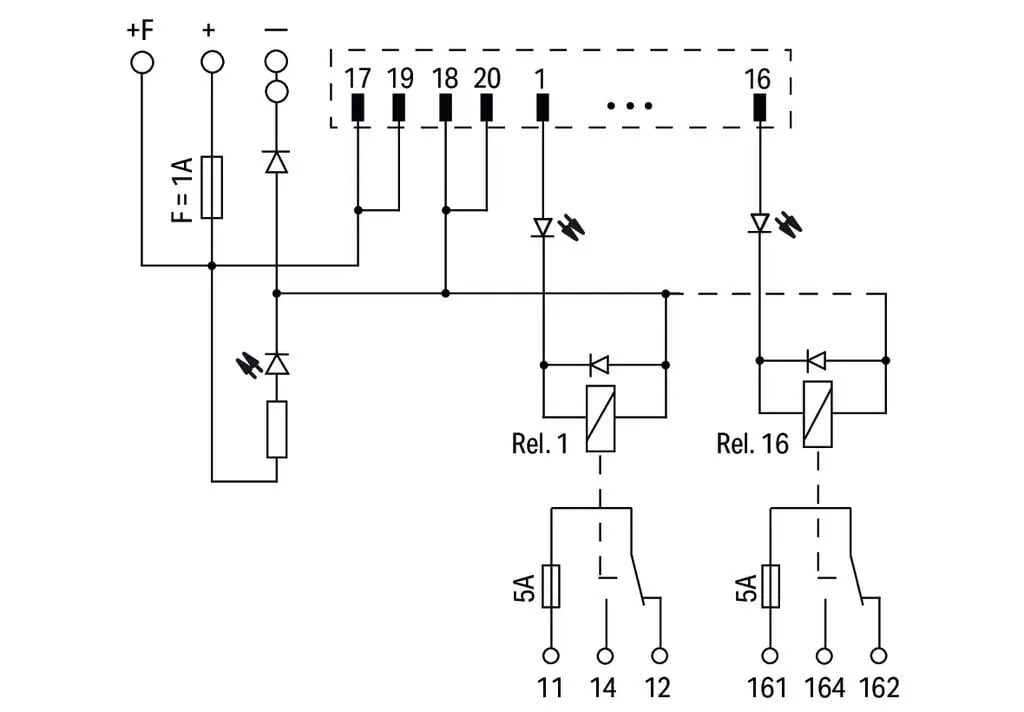

Interface module for system wiring; Pluggable connector per DIN 41651; 20-pole; 16-channel relay output; 1 changeover contact; PCB terminal blocks; in mounting carrier 704-5114

Request for Quote

Compare
Add to wishlist

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year

More details

  • Free 30-Day returns

More details

Description

Interface module for system wiring; Pluggable connector per DIN 41651; 20-pole; 16-channel relay output; 1 changeover contact; PCB terminal blocks; in mounting carrier 704-5114

Specification

Notes

NoteIndependent of the relay used, the maximum continuous current is 5 A per channel.

Electrical data

Inputs/outputs16-channel relay output
Nominal operating voltage24 VDC
Operating voltage range±10 %
Number of changeover/switchover contacts1
Limiting continuous current5 A
Switching Voltage, Max.250 VAC; 48 VDC
Switching power (resistive) max.AC 1250 VA; DC 50 W
Mechanical life30 x 10⁶ switching operations
Status indicatorGreen LED (channel), Yellow LED (power supply)
Internal fuseSupply: 1 A; Relay output: 5 A
WAGO Basic Relay788-154
Specialty functionsWith output fuse

Safety and protection

Rated voltage50 V
Rated impulse withstand voltage0.8 kV
Pollution degree2
Dielectric strength (control/load circuit) (AC, 1 min)4 kVrms
Dielectric strength (load/load circuit) (AC, 1 min)1 kVrms

Compatibility - Siemens

Siemens S7-3006ES7 313-5BE01-0AB0, 6ES7 313-5BG04-0AB0, 6ES7 313-6BE01-0AB0, 6ES7 313-6BF03-0AB0, 6ES7 313-6CE01-0AB0, 6ES7 313-6CF03-0AB0, 6ES7 314-6BF01-0AB0, 6ES7 314-6BG03-0AB0, 6ES7 314-6CF01-0AB0, 6ES7 314-6CG03-0AB0, 6ES7 322-1BH01-0AA0, 6ES7 322-1BH10-0AA0, 6ES7 322-1BH80-0AA0, 6ES7 322-1BL00-0AA0, 6ES7 322-1BP00-0AA0, 6ES7 322-1EH01-0AA0, 6ES7 322-8BH01/8BH10-0AB0, 6ES7 323-1BL00-0AA0
Siemens S7-4006ES7 422-1BL00-0AA0
Siemens S7-15006ES7 511-1CK00-0AB0, 6ES7 512-1CK00-0AB0, 6ES7 522-1BH00-0AB0, 6ES7 522-1BH01-0AB0, 6ES7 522-1BH10-0AA0, 6ES7 522-1BL00-0AB0, 6ES7 522-1BL01-0AB0, 6ES7 522-1BL10-0AA0, 6ES7 522-1BP00-0AA0, 6ES7 523-1BL00-0AA0
Siemens ET200SP6ES7 132-6BH00-0AA0, 6ES7 132-6BH00-2AA0, 6ES7 132-6BH01-0BA0, 6ES7 132-6BH01-2BA0

Compatibility - GE Fanuc

GE Fanuc 9030IC693 MDL740, IC693 MDL742, IC693 MDL753
GE Fanuc RX3iIC694 MDL753

Compatibility - Schneider

Schneider Modicon TM3TM3 DQ16T(G), TM3 DQ16TK, TM3 DQ32TK
Schneider Modicon M340BMX DDO 1602, BMX DDO 3202K, BMX DDO 6402K, BMX DDM 3202K
Schneider Modicon Quantum140 DDO 353 00, 140 DDO 353 01, 140 DDO 364 00, 140 DVO 853 00
Schneider TSXTSX DSY 16T2, TSX DSY 32T2K, TSX DSY 64T2K, TSX DMY 28FK, TSX DMY 28RFK
Schneider TwidoTM2 DDO 16TK, TM2 DDO 32TK

Compatibility - Rockwell

Rockwell Compact Logix1769 - OB16, 1769 - OB16P, 1769 - OB32, 1769 - OB32T
Rockwell Control Logix1756 - OB16E, 1756 - OB32

Compatibility - Omron

Omron CJ1WCJ1W-MD232, CJ1W-OD212, CJ1W-OD232, CJ1W-OD262

Compatibility - WAGO

WAGO I/O System 750750-1500
WAGO I/O System 753753-530 (x2)

Connection data - Connection 1

Pluggable connectorPluggable connector per DIN 41651; male connector
Pole number 120
Connection typeSystem
Mating directionvertical

Connection data - Connection 2

DesignPCB terminal blocks
Pole number48
Connection typeField
WAGO connectorWAGO 236 Series
Solid conductor0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded conductor0.08 … 2.5 mm² / 28 … 12 AWG
Strip length5 … 6 mm / 0.2 … 0.24 inches

Connection data - Connection 3

DesignPCB terminal blocks
Pole number4
Connection typePower supply
WAGO connectorWAGO 236 Series
Solid conductor0.08 … 2.5 mm² / 28 … 12 AWG
Fine-stranded conductor0.08 … 2.5 mm² / 28 … 12 AWG
Strip length5 … 6 mm / 0.2 … 0.24 inches

Physical data

Width247 mm / 9.724 inches
Height105 mm / 4.134 inches
Depth from upper-edge of DIN-rail55 mm / 2.165 inches

Mechanical data

Mounting typeDIN-35 rail

Material data

Fire load1.316 MJ
Weight326 g

Environmental requirements

Ambient temperature (operation)-25 … +50 °C
Ambient temperature (storage)-40 … +70 °C
Relative humidity≤ 85 % (non-condensing)

Commercial data

PU (SPU)1 pcs
Packaging typebox
Country of originDE
GTIN4066966078992
Customs tariff number85389091890

Product Classification

UNSPSC39122334
ETIM 9.0EC002780
ETIM 10.0EC002780
ECCNNO US CLASSIFICATION

Environmental Product Compliance

CAS-No.7439-92-1, 79-94-7
REACH Candidate List Substance2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Lead
RoHS Compliance StatusCompliant,No Exemption
SCIP notification number (Austria)75328790-e397-4528-b154-591fe9881603
SCIP notification number (Belgium)1f65341d-cf4f-484b-a46b-e6af68094065
SCIP notification number (Bulgaria)429076fc-ddda-43ec-b072-402ae39f1366
SCIP notification number (Czech Republic)a0cb895c-bb20-4152-bf58-7da833e053fc
SCIP notification number (Denmark)7b22e245-d0e2-4e40-91fd-ff60e3534573
SCIP notification number (Finland)f672f95a-a420-4f25-9feb-0bbf325b6a34
SCIP notification number (France)d1925395-d57e-44de-a1ac-6baeca1e32f2
SCIP notification number (Germany)e6acb908-2365-4ee1-ac1f-256b7478c211
SCIP notification number (Hungary)c0983941-cb14-485c-86c8-8a94b35ecbbd
SCIP notification number (Italy)71bc25f4-2d13-4712-8434-aebb670e852b
SCIP notification number (Netherlands)809e00fa-ab30-4839-8eb0-9d8398afbff6
SCIP notification number (Poland)0e5e5cb9-0303-4317-a482-e893588b913e
SCIP notification number (Romania)83a40cbb-bbcf-45b7-9dd8-5e1851353c45
SCIP notification number (Sweden)9e39565f-3950-4aaa-a4c7-260597cb1a04
