Wago 294-8115

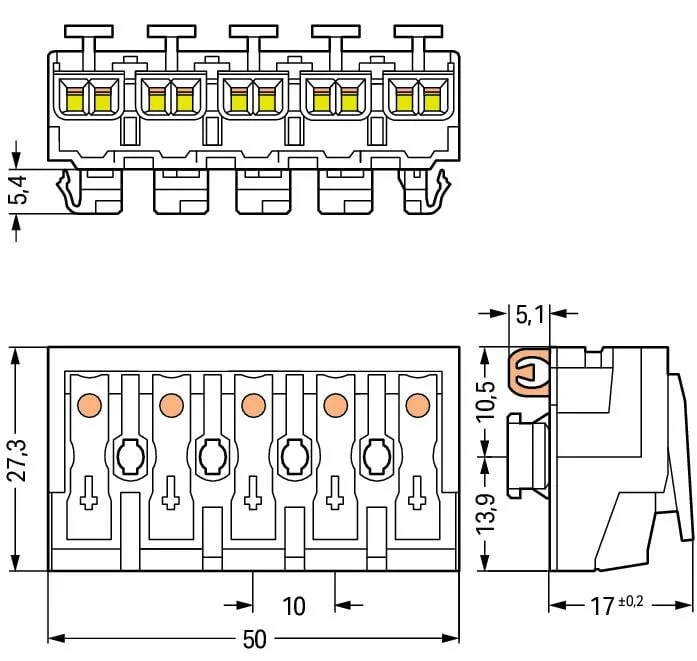

Field-wiring terminal block with linect^®, 294 Series, Push-inEnjoy seamless electrical installations with field-wiring terminal block with linect^® (item number 294-8115). Strip lengths must be between 8 and 9 mm  when connecting conductors to field-wiring terminal block with linect^®. This product features four conductor terminals and utilizes Push-in CAGE CLAMP® as well as PUSH WIRE®. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. Both solid and fine-stranded conductors with ferrules can be pushed in without the need for tools—all thanks to its pluggable design. Our reliable PUSH WIRE® connection offers the fastest method for clamping conductors. It utilizes the conductor’s stiffness to overcome the clamping spring’s contact force. The item’s dimensions are (50 x 22.4 x 27.3) mm (width x height x depth). Field-wiring terminal block with linect^® is suitable for conductor cross sections ranging from 0.5 mm² to 2.5 mm² on one side and for conductor cross sections ranging from 0.5 mm² to 2.5 mm² on the other side as well as conductor cross sections from 0.5 mm² to 2.5 mm² and from 0.5 mm² to 0.75 mm² depending on the conductor type.The contact surface is coated with tin.
