Wago 289-198

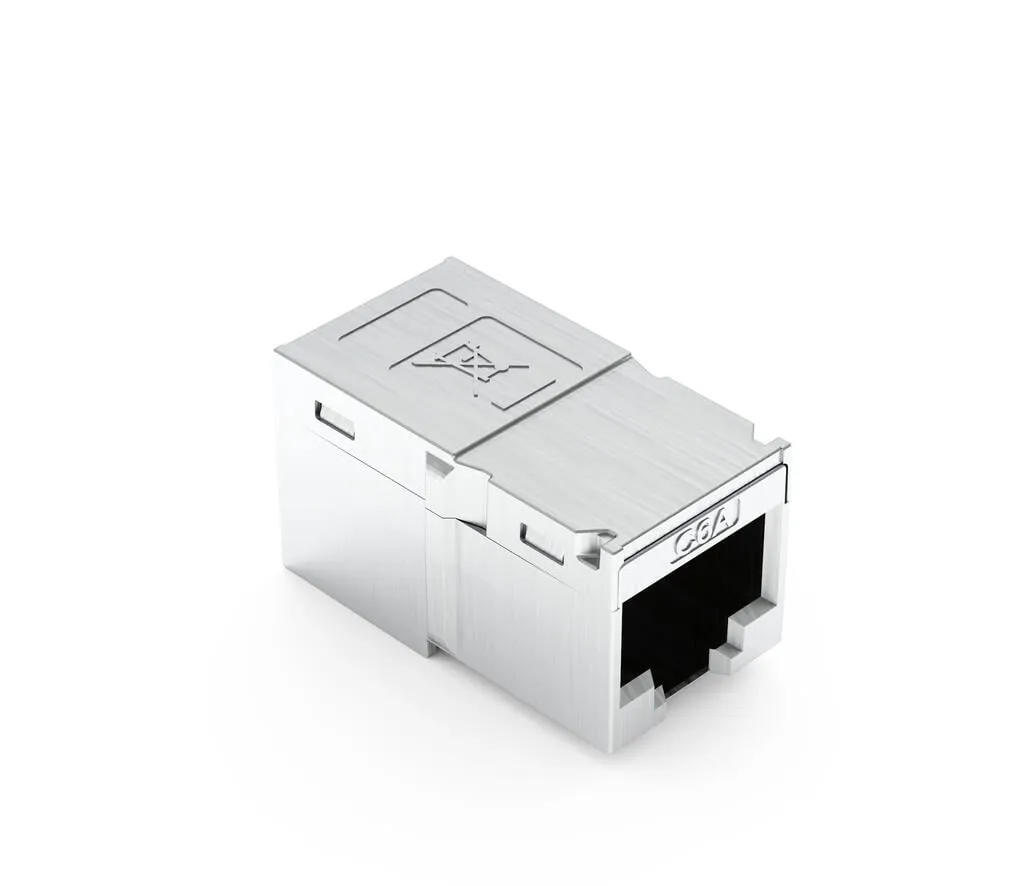

Coupler module; 2xRJ-45; Cat. 6A; in mounting carrier; with shield connection 289-198
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Coupler module; 2xRJ-45; Cat. 6A; in mounting carrier; with shield connection 289-198
Specification
Electrical data
| Specialty functions | with shield connection |
|---|
Safety and protection
| Protection type | IP20 |
|---|
Connection data
| Mating cycles | 750 |
|---|---|
| Connection cable | Cat. 6A (min.) |
Connection data - Connection 1
| Pluggable connector | RJ-45 (shielded) |
|---|---|
| Pole number 1 | 8 |
| Connection type | System |
Connection data - Connection 2
| Connector | RJ-45 (shielded) |
|---|---|
| Pole number | 8 |
| Connection type | System |
Physical data
| Width | 18 mm / 0.709 inches |
|---|---|
| Height | 90 mm / 3.543 inches |
| Depth from upper-edge of DIN-rail | 59 mm / 2.323 inches |
Mechanical data
| Mounting type | DIN-35 rail |
|---|---|
| Housing design | Mounting carrier |
| Mating cycles | 750 |
Material data
| Contact material (connector) | Spring steel |
|---|---|
| Weight | 34 g |
Environmental requirements
| Ambient temperature (operation) | -10 … +60 °C |
|---|---|
| Ambient temperature (storage) | -40 … +70 °C |
| Relative humidity | ≤ 95 % (non-condensing) |
Commercial data
| PU (SPU) | 1 pcs |
|---|---|
| Packaging type | bag |
| Country of origin | PL |
| GTIN | 4066966083491 |
| Customs tariff number | 85369010000 |
Product Classification
| UNSPSC | 39121421 |
|---|---|
| ETIM 9.0 | EC002780 |
| ETIM 10.0 | EC002780 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
