Wago 286-394/004-000
Relay module; Nominal input voltage: 24 VDC; 1 changeover contact; Limiting continuous current: 1 A; with gold contacts; Railway; Red status indicator; Module width: 15 mm; light gray 286-394/004-000
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Relay module; Nominal input voltage: 24 VDC; 1 changeover contact; Limiting continuous current: 1 A; with gold contacts; Railway; Red status indicator; Module width: 15 mm; light gray 286-394/004-000
Specification
Notes

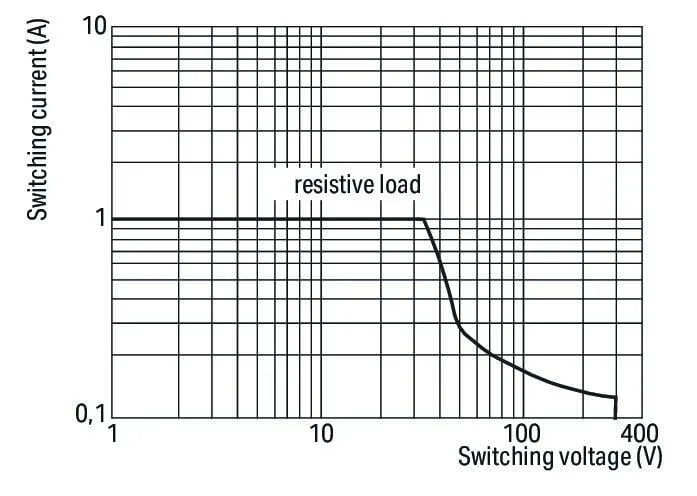

| Note | To prevent damaging the gold layer, 30 V switching voltages and 50 mA currents must not be exceeded. Higher switching power eventually evaporates the gold layer. The resulting deposits in the housing may reduce service life., This relay is designed for use in signal processing networks, which are not supplied by the low-voltage power supply networks. |
|---|
Technical data - Control circuit
| Nominal input voltage U<sub>N</sub> | 24 VDC |
|---|---|
| Input voltage range | -30 … +25 % |
| Nominal input current at U<sub>N</sub> | 8 mA |
Technical data - Load circuit
| Number of changeover/switchover contacts | 1 |
|---|---|
| Contact material (relay) | AgNi + Au |
| Limiting continuous current | 1 A |
| Switching Voltage, Max. | 250 VAC |
| Pull-in time (typ.) | 8 ms |
| Drop-out time (typ.) | 4 ms |
| Bounce time (typ.) | 2 ms |
Safety and protection
| Rated voltage | 300 V |
|---|---|
| Overvoltage category | II |
| Pollution degree | 2 |
| Dielectric strength (control/load circuit) (AC, 1 min) | 3 kVrms |
| Dielectric strength (open contact) (AC, 1 min) | 1 kVrms |
| Insulation type (control/load circuit) | Reinforced insulation (safe isolation) |
| Insulation type (open contact) | Functional insulation |
| Insulation type (adjacent devices) | Reinforced insulation (safe isolation) |
| Protection type | IP20 |
Physical data

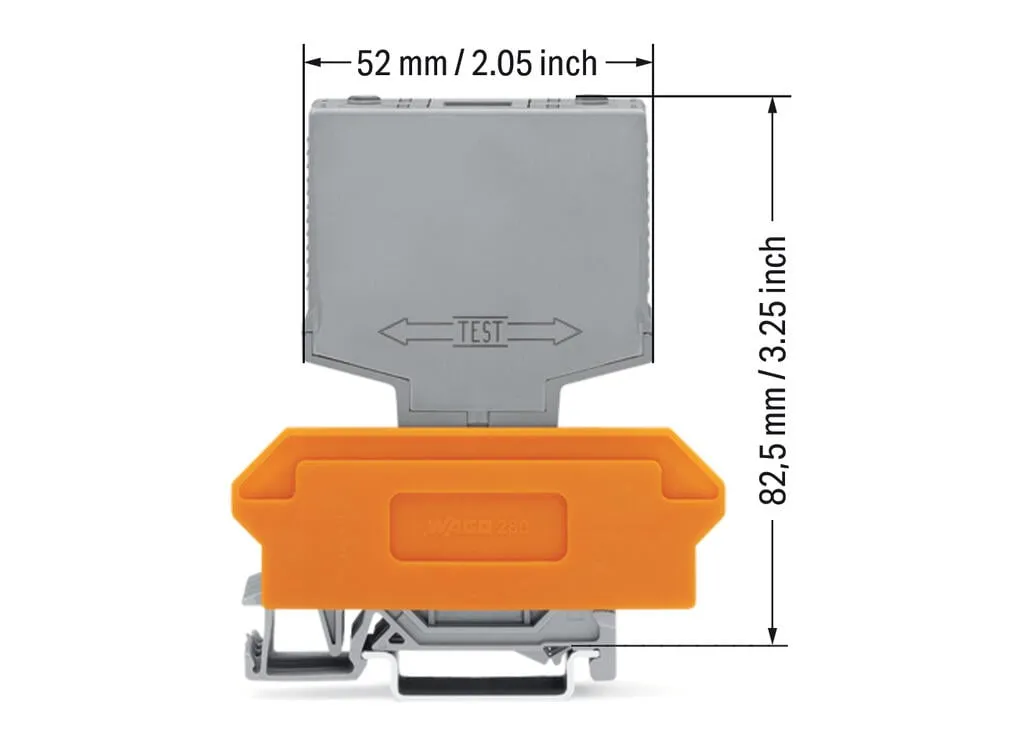

| Width | 15 mm / 0.591 inches |
|---|---|
| Height | 52 mm / 2.047 inches |
| Depth from upper-edge of DIN-rail | 82.5 mm / 3.248 inches |
| Note (dimensions) | Depth including carrier terminal block |
Mechanical data
| Mounting type | Pluggable module for receptacle terminal blocks |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | light gray |
| Fire load | 0.324 MJ |
| Weight | 26.1 g |
Environmental requirements
| Ambient temperature (operation at U<sub>N</sub>) | -25 … +70 °C |
|---|---|
| Ambient temperature (storage) | -25 … +70 °C |
| Processing temperature | -25 … +50 °C |
| Relative humidity | 5 … 85 % (no condensation permissible) |
| Operating altitude (max.) | 2000 m |
Standards and specifications
| Standards/specifications | EN 50121-3-2 |
|---|
Commercial data
| Product Group | 6 (INTERFACE ELECTRONIC) |
|---|---|
| PU (SPU) | 15 (1) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454496388 |
| Customs tariff number | 85364900990 |
Product Classification
| UNSPSC | 39122334 |
|---|---|
| eCl@ss 10.0 | 27-37-16-01 |
| eCl@ss 9.0 | 27-37-16-01 |
| ETIM 9.0 | EC001437 |
| ETIM 10.0 | EC001437 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 1303-86-2, 1317-36-8, 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Diboron trioxide, Lead, Lead monoxide |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a), 7(c)-I, 7(c)-II |
| SCIP notification number (Bulgaria) | 4691f89f-dd42-4bc7-b92b-2a39e223c2a1 |
