Wago 282-140
Disconnect terminal block, 282 Series, CAGE CLAMP®Our disconnect terminal block (item number 282-140) simplifies electrical installations. Ensure that the strip lengths are between 12 and 13 mm when…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

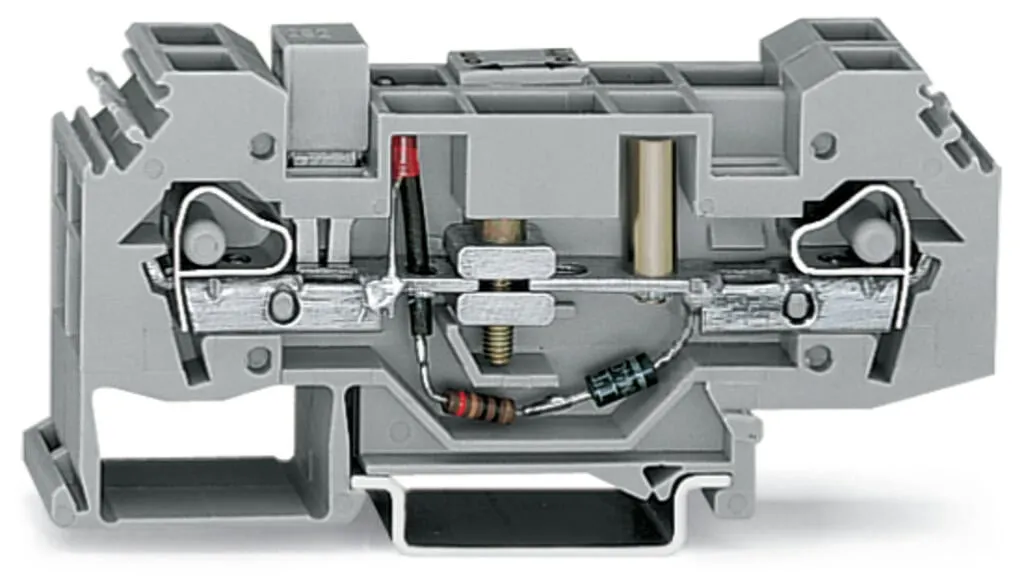

Disconnect terminal block, 282 Series, CAGE CLAMP®Our disconnect terminal block (item number 282-140) simplifies electrical installations. Ensure that the strip lengths are between 12 and 13 mm when connecting conductors to this disconnect terminal block. This product features conductor terminals and utilizes CAGE CLAMP®. Our renowned universal connection known as CAGE CLAMP® leads the way when it comes to connection technology and electrical interconnections. Depending on the conductor type, this disconnect terminal block is designed for conductor cross sections ranging from 0.2 mm² to 6 mm².
Specification
Electrical data - Ratings per IEC/EN
| Operation status indicator | 24 V |
|---|
Electrical data - Power Loss
| Power loss, per pole (potential) | 1.311 W |
|---|---|
| Rated current I<sub>N</sub> for power loss specification | 41 A |
| Resistance value for specified, current-dependent power loss | 0.001 Ω |
Electrical data - General information
| Wiring direction | Side-entry wiring |
|---|
Connection data
| Clamping units | 4 |
|---|---|
| Total number of potentials | 2 |
| Number of levels | 1 |
Connection data - Connection 1
| Connection technology | CAGE CLAMP® |
|---|---|
| Actuation type | Operating tool |
| Connectable conductor materials | Copper |
| Solid conductor | 0.2 … 6 mm² / 24 … 10 AWG |
| Fine-stranded conductor | 0.2 … 6 mm² / 24 … 10 AWG |
| Strip length | 12 … 13 mm / 0.47 … 0.51 inches |
| Wiring direction | Side-entry wiring |

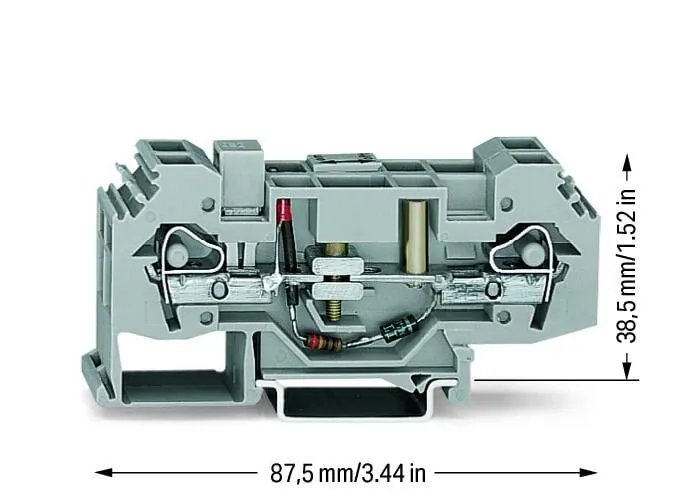

Physical data
| Width | 16 mm / 0.63 inches |
|---|---|
| Height | 87.5 mm / 3.445 inches |
| Depth from upper-edge of DIN-rail | 38.5 mm / 1.516 inches |
Mechanical data
| Design | horizontal type |
|---|---|
| Mounting type | DIN-35 rail |
| Marking level | Side marking |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.676 MJ |
| Weight | 45.4 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 1 (Rail Mounted Terminal Blocks) |
|---|---|
| PU (SPU) | 12 (1) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454448516 |
| Customs tariff number | 85365080000 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-26 |
| eCl@ss 9.0 | 27-14-11-26 |
| ETIM 9.0 | EC000902 |
| ETIM 10.0 | EC000902 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1, 79-94-7 |
|---|---|
| REACH Candidate List Substance | 2,2',6,6'-tetrabromo-4,4'-isopropylidenediphenol, Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c), 7(a) |
| SCIP notification number (Austria) | 22d255f1-d343-4259-813e-14a042973862 |
| SCIP notification number (Belgium) | b5621a69-6d87-45cc-939e-7e09395b3ffe |
| SCIP notification number (Bulgaria) | 64cac712-6013-4db5-8e86-273f4ebaa4a6 |
| SCIP notification number (Czech Republic) | fde50743-ab4d-485a-b44d-ea98a7b814e9 |
| SCIP notification number (Denmark) | abfef7a0-b4ef-4a1a-bc06-9944de5f1361 |
| SCIP notification number (Finland) | 2ded0421-3286-498c-8f44-b6f828665456 |
| SCIP notification number (France) | f603a968-a2cb-408a-9be0-173b1816a14f |
| SCIP notification number (Germany) | 01706c92-2b0f-43fd-b160-d03f6ce2cc7c |
| SCIP notification number (Hungary) | 947b3590-ada8-4c5c-aa39-bbe05780f030 |
| SCIP notification number (Italy) | fd2d3a16-d24b-4785-94dc-fd3e6d1a7217 |
| SCIP notification number (Netherlands) | 3963dc56-bd55-4e03-a59b-3a68edfa34f8 |
| SCIP notification number (Poland) | bf2f6ff1-e4b9-4a8f-9261-b76d0fbe2be4 |
| SCIP notification number (Romania) | 147514f7-b3b6-439f-9ccf-d153ca7eac88 |
| SCIP notification number (Sweden) | 89e80cdd-b8c2-4def-b2ff-22833d8b6e36 |
