Wago 2616-1103/010-000

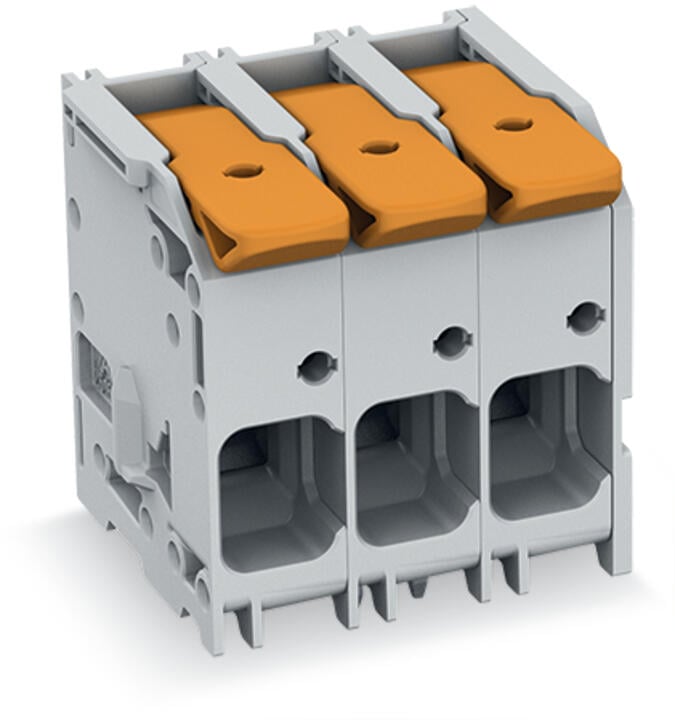

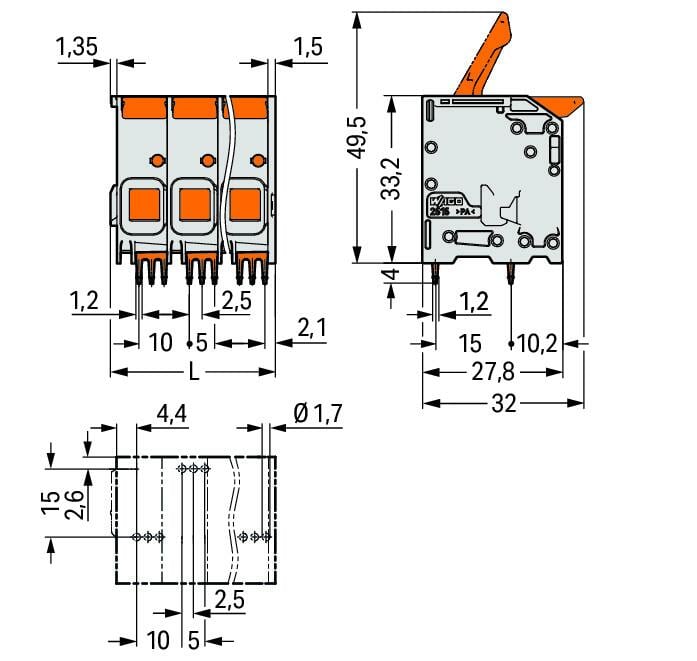

PCB terminal block, 2616 Series, grayConnect conductors quickly and securely with this PCB terminal block (item number 2616-1103/010-000). You can count on proven safety with these PCB terminal blocks, perfect for a wide range of applications when designing your devices. This PCB terminal block has a rated voltage of 1000 V and can handle currents up to 76 A, making it ideal for high-load applications. Conductors should only be connected to this PCB terminal block if their strip length is between 18 mm and 20 mm. This product features one conductor terminal and utilizes Push-in CAGE CLAMP®. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, boasting a key feature: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. The dimensions are 32.8 x 37.2 x 32 mm (width x height x depth). Depending on the type of conductor, this PCB terminal block is designed for conductor cross sections ranging from 0.75 mm² to 16 mm². It features one level and three clamping points that you can use to connect three potentials / 3 poles. The clamping spring is made of chrome-nickel spring steel (CrNi), the contacts are made of electrolytic copper (ECu), and the gray housing is made of polyamide (PA66) for insulation. Tin is used for coating the contact surfaces. A lever is used to operate this PCB terminal block. THT is used to solder the PCB terminal block. The conductor is designed to be inserted into the board at a 0° angle.. The solder pins, which are 1.2 x 1.2 mm in cross-section and 4 mm long, are set out over the entire terminal strip (staggered). There are three solder pins per potential.
