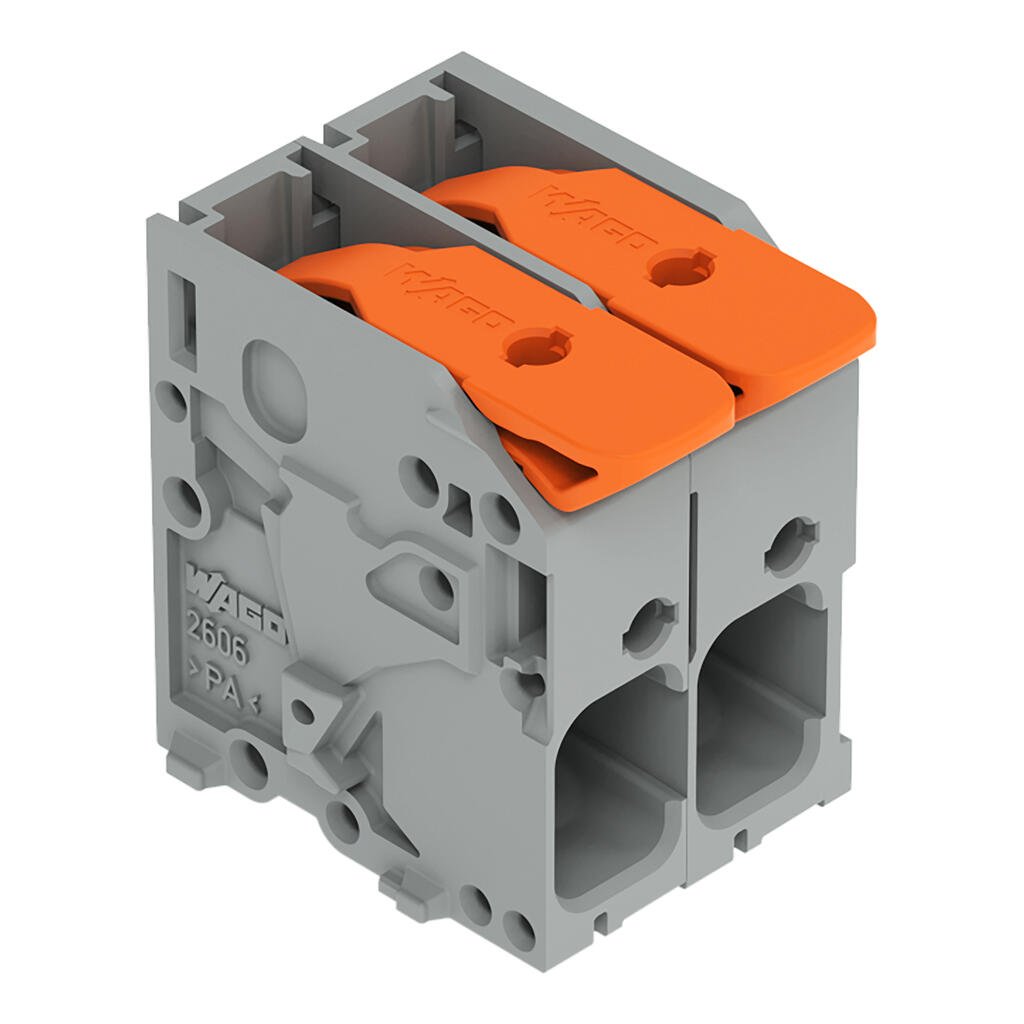

Wago 2606-1102

PCB terminal block, 2606 Series, solder pin dimensions 1.5 x 1.2 mmThis PCB terminal block (item number 2606-1102) is designed for quick and simple connections. It is a universal connector that can be…

Request for Quote

Shipping & Delivery

  • Courier delivery

Our courier will deliver to the specified address

5-6 Days

From €20

  • DHL Courier delivery

DHL courier will deliver to the specified address

2-3 Days

From €40

  • Warranty 1 year
  • Free 30-Day returns

Description

PCB terminal block, 2606 Series, solder pin dimensions 1.5 x 1.2 mmThis PCB terminal block (item number 2606-1102) is designed for quick and simple connections. It is a universal connector that can be used practically anywhere, for example, as a pluggable PCB connector, panel feedthrough header, connector for rail-mount terminal blocks, or a floating connector for different mounting methods. This PCB terminal block has a rated voltage of 630 V and can handle currents up to 41 A, making it ideal for high-load applications. Strip lengths must be between 11 mm and 13 mm when connecting conductors to this PCB terminal block. This product features one conductor terminal and utilizes Push-in CAGE CLAMP®. Push-in CAGE CLAMP® connection technology is ideal for connecting all conductor types. It allows direct insertion of both solid and fine-stranded conductors with ferrules without needing to use any tools—all thanks to its pluggable design. The item’s dimensions are 17.85 x 28 x 24.3 mm (width x height x depth). This PCB terminal block is suitable for conductor cross sections ranging from 0.2 mm² to 10 mm². Up to two potentials / two poles can be connected to this terminal strip using two clamping points on one level. The contacts are made of electrolytic copper (ECu), the clamping spring is made of chrome-nickel spring steel (CrNi), and the gray housing is made of polyamide (PA66) for insulation. The contact surface is coated with tin. This PCB terminal block is operated with a lever. THT is used to assemble the PCB terminal block. The conductor is designed to be inserted into the board at an angle of 0°.. The solder pins are organized over the entire terminal strip (in-line) and are 1.5 x 1.2 mm and 4 mm in length. Each potential has two solder pins.

Specification

Notes

Variants:Other pole numbers, Direct marking, Other colors, Other versions (or variants) can be requested from WAGO Sales or configured at https://configurator.wago.com/.

Electrical data - Ratings per IEC/EN

Ratings perIEC/EN 60664-1
Nominal voltage (III/3)500 V
Rated impulse withstand voltage (III / 3)6 kV
Rated voltage (III/2)630 V
Rated impulse withstand voltage (III/2)6 kV
Nominal voltage (II/2)1000 V
Rated impulse withstand voltage (II/2)6 kV

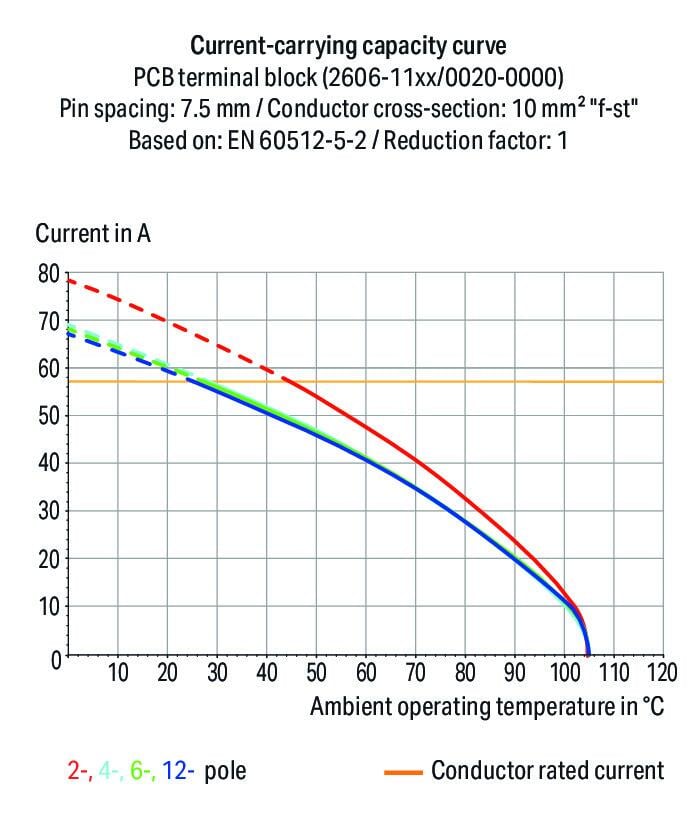

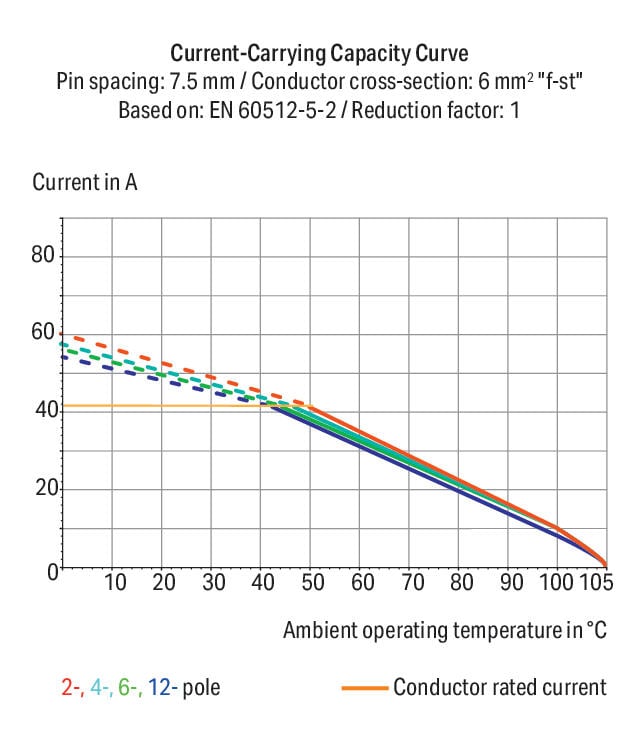

Rated current41 A
Legend (ratings)(III / 2) ≙ Overvoltage category III / Pollution degree 2
Ratings perIEC/EN 60664-1 / IEC/EN 60664-1 / IEC/EN 60664-1
Overvoltage categoryIII / III / II
Pollution degree3 / 2 / 2
Nominal voltage500 V / 630 V / 1000 V
Rated impulse withstand voltage6 kV / 6 kV / 6 kV
Rated current41 A / 41 A / 41 A

Electrical data - Ratings per UL

Approvals perUL 1059
Rated voltage UL (Use Group B)300 V
Rated current UL (Use Group B)31 A
Rated voltage UL (Use Group C)150 V
Rated current UL (Use Group C)31 A
Rated voltage UL (Use Group D)300 V
Rated current UL (Use Group D)31 A
Approvals perUL 1059 / UL 1059 / UL 1059
Use groupB / C / D
Rated voltage300 V / 150 V / 300 V
Rated current31 A / 31 A / 31 A

Electrical data - Ratings per CSA

Approvals perCSA
Rated voltage CSA (Use Group B)300 V
Rated current CSA (Use Group B)31 A
Rated voltage CSA (Use Group C)150 V
Rated current CSA (Use Group C)31 A
Rated voltage CSA (Use Group D)600 V
Rated current CSA (Use Group D)31 A
Approvals perCSA / CSA / CSA
Use groupB / C / D
Rated voltage300 V / 150 V / 600 V
Rated current31 A / 31 A / 31 A

Connection data

Clamping units2
Total number of potentials2
Number of connection types1
Number of levels1

Connection data - Connection 1

Connection technologyPush-in CAGE CLAMP®
Actuation typeLever
Solid conductor0.2 … 10 mm² / 24 … 8 AWG
Fine-stranded conductor0.2 … 10 mm² / 24 … 8 AWG
Fine-stranded conductor; with insulated ferrule0.2 … 6 mm²
Fine-stranded conductor; with uninsulated ferrule0.5 … 6 mm²
Fine-stranded conductor; with twin ferrule0.25 … 2.5 mm²
Strip length11 … 13 mm / 0.43 … 0.51 inches
Conductor connection direction to PCB0 °
Pole number2

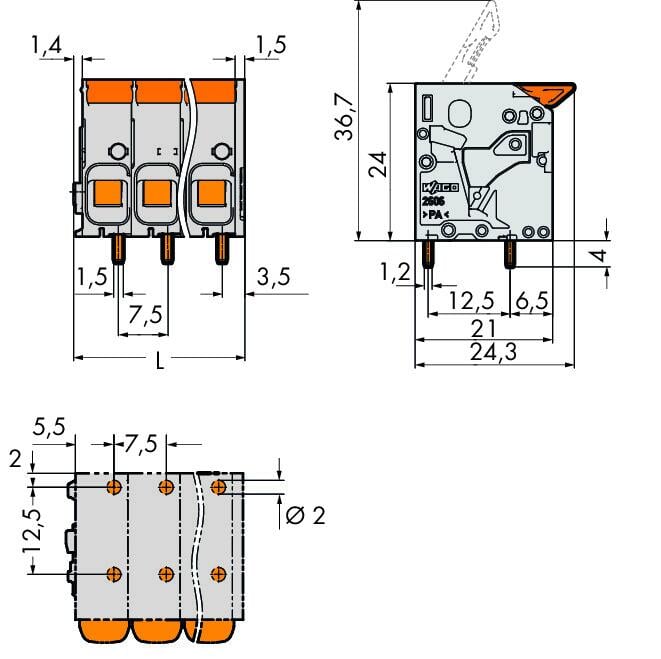

Physical data

Pin spacing7.5 mm / 0.295 inches
Width17.85 mm / 0.703 inches
Height28 mm / 1.102 inches
Height from the surface24 mm / 0.945 inches
Depth24.3 mm / 0.957 inches
Solder pin length4 mm
Solder pin dimensions1.5 x 1.2 mm
Drilled hole diameter with tolerance2 (+0.1) mm

PCB contact

PCB contactTHT
Solder pin arrangementOver the entire terminal strip (in-line)
Number of solder pins per potential1

Material data

Note (material data)Information on material specifications can be found here
Colorgray
Material groupI
Insulation material (main housing)Polyamide (PA66)
Flammability class per UL94V0
Clamping spring materialChrome-nickel spring steel (CrNi)
Contact materialElectrolytic copper (ECu)
Contact platingTin
Fire load0.172 MJ
Actuator colororange
Weight8.4 g

Environmental requirements

Limit temperature range-60 … +105 °C
Processing temperature-35 … +60 °C
Continuous operating temperature-60 … +105 °C

Environmental requirements - Environmental Testing

Test specification: <br/>Railway applications –<br/>Rolling stock –<br/>Electronic equipmentDIN EN 50155 (VDE 0115-200):2022-06
Test procedure: <br/>Railway applications – <br/>Rolling stock equipment – <br/>Vibration and shock testsDIN EN 61373 (VDE 0115-0106):2011-04
Spectrum/Mounting locationService life test, Category 1, Class A/B
Functional test with noise-like oscillationsTest passed according to Section 8 of the standard
Frequencyf1 = 5 Hz to f2 = 150 Hz
Acceleration0.101g (highest test level used for all axes)
Test duration per axis10 min.
Test directionsX, Y and Z axes
Monitoring of contact faults and interruptionsPassed
Voltage drop measurement before and after each axisPassed
Simulated service life test through increased levels of noise-like oscillationsTest passed according to Section 9 of the standard
Frequencyf1 = 5 Hz to f2 = 150 Hz
Acceleration0.572g (highest test level used for all axes)
Test duration per axis5 h
Test directionsX, Y and Z axes
Extended testing: Monitoring of contact faults and interruptionsPassed
Extended testing: Voltage drop measurement before and after each axisPassed
Shock testTest passed according to Section 10 of the standard
Shock pulse formHalf sine
Acceleration5g (highest test level used for all axes)
Shock duration30 ms
Number of shocks (per axis)3 pos. und 3 neg.
Test directionsX, Y and Z axes
Extended testing: Monitoring of contact faults and interruptionsPassed
Extended testing: Voltage drop measurement before and after each axisPassed
Vibration and shock stress for rolling stock equipmentPassed

Commercial data

PU (SPU)99 pcs
Packaging typebox
Country of originPL
GTIN4066966395013
Customs tariff number85369010000

Product Classification

UNSPSC39121409
eCl@ss 10.027-44-04-01
eCl@ss 9.027-44-04-01
ETIM 9.0EC002643
ETIM 10.0EC002643
ECCNNO US CLASSIFICATION

Environmental Product Compliance

RoHS Compliance StatusCompliant,No Exemption
