Wago 235-452/331-004

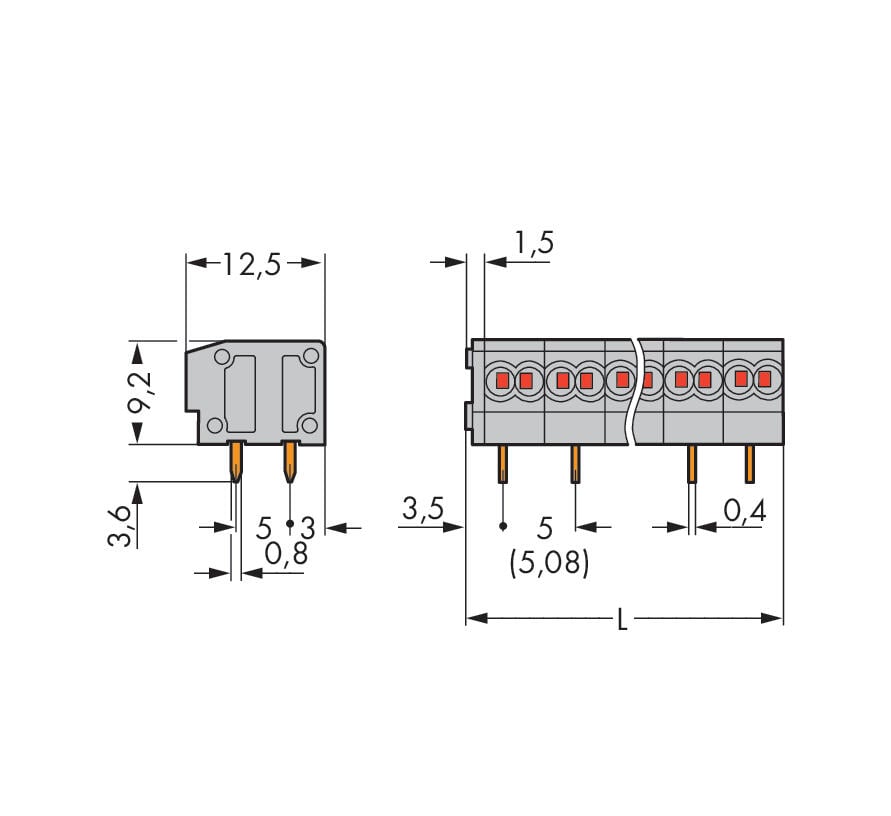

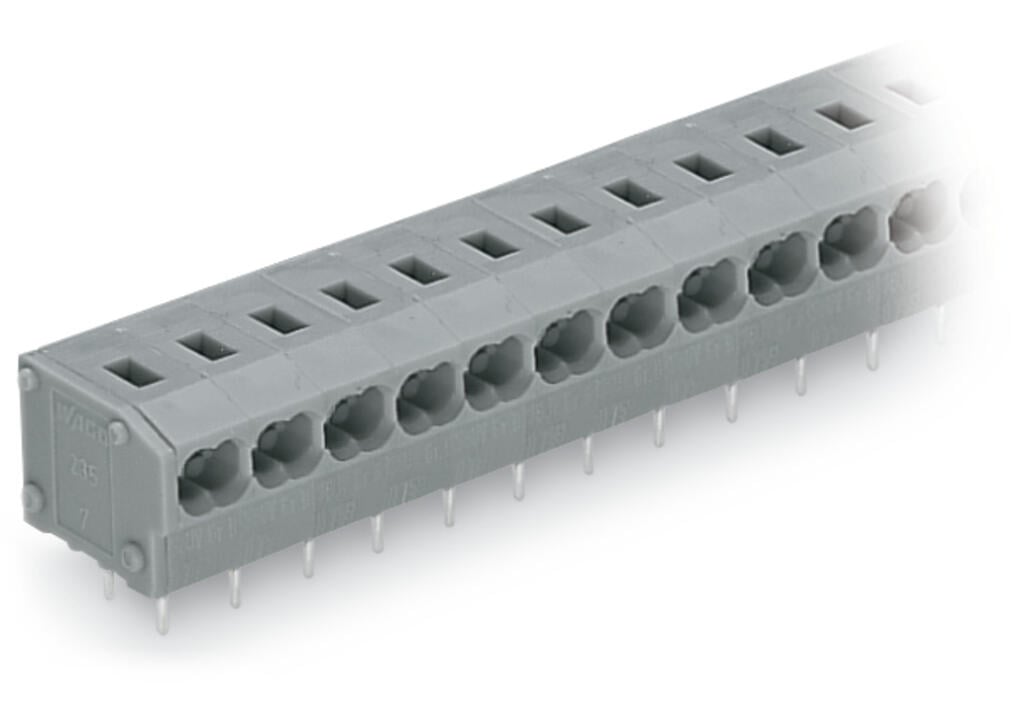

PCB terminal block, 235 Series, blackThis PCB terminal block (item number 235-452/331-004) is designed to connect conductors quickly and easily. You can count on tried and tested safety with these PCB terminal blocks, perfect for a wide variety of applications when designing your devices. Our PCB terminal block is rated for 320 V and is designed to handle a rated current of up to 10 A. Ensure that the strip lengths are between 9 mm and 10 mm when connecting conductors to this PCB terminal block. This product features one conductor terminal and utilizes PUSH WIRE®. Our reliable PUSH WIRE® connection offers the fastest method for clamping conductors. It utilizes the conductor’s stiffness to overcome the clamping spring’s contact force. The item’s dimensions are 11.5 x 12.8 x 12.5 mm (width x height x depth). Depending on the conductor type, this PCB terminal block is designed for conductor cross sections ranging from 0.25 mm² to 0.75 mm². Up to two potentials / two poles can be connected to this terminal strip using four clamping points on one level. The black housing is made of polyamide (PA66) for insulation, the clamping spring is made of chrome-nickel spring steel (CrNi), and the contacts are made of electrolytic copper (ECu). Tin is used for coating the contact surfaces. This PCB terminal block is operated with an operating tool. The PCB terminal block is designed for THT soldering. The conductor is designed to be inserted at a 0° angle.. The solder pins, which are 0.8 x 0.4 mm in cross-section and 3.6 mm long, are laid out over the entire terminal strip (in-line). There are two solder pins per potential.
