Wago 235-452/331-000

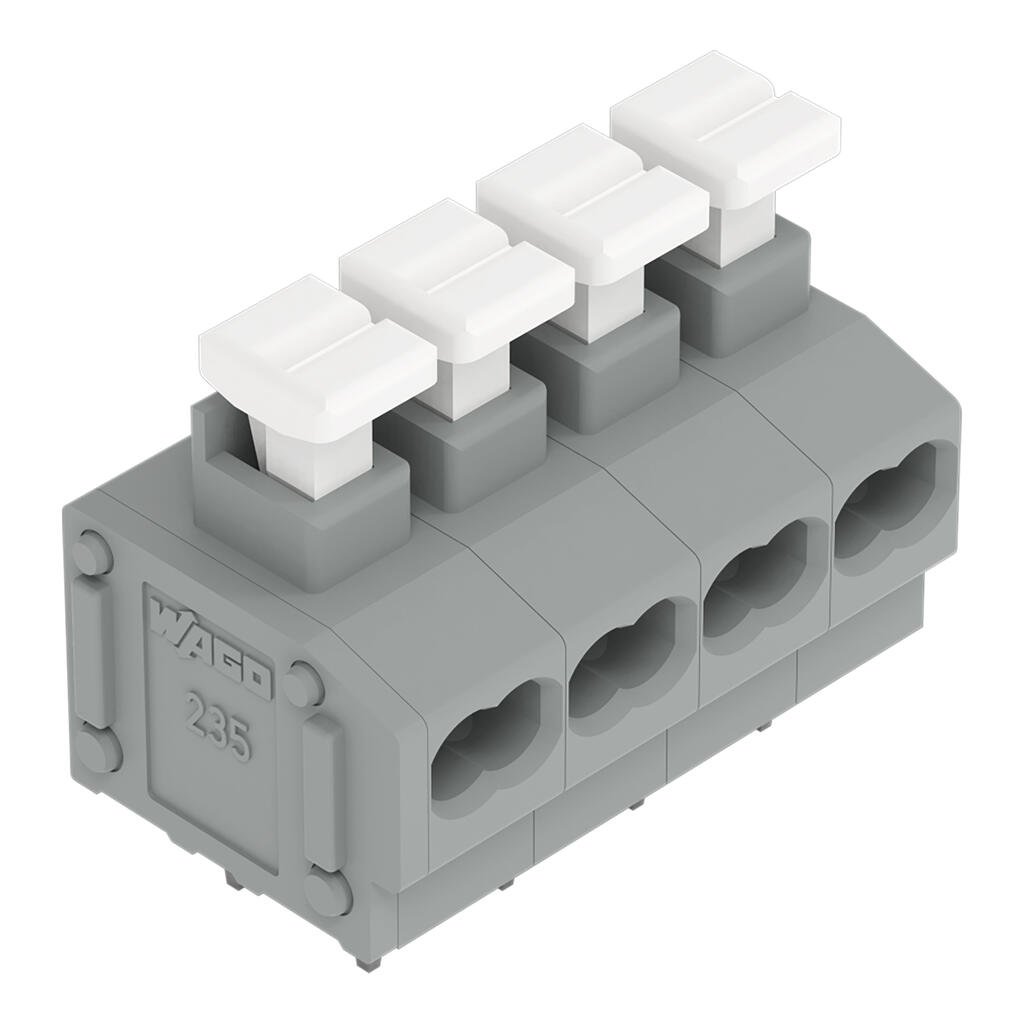

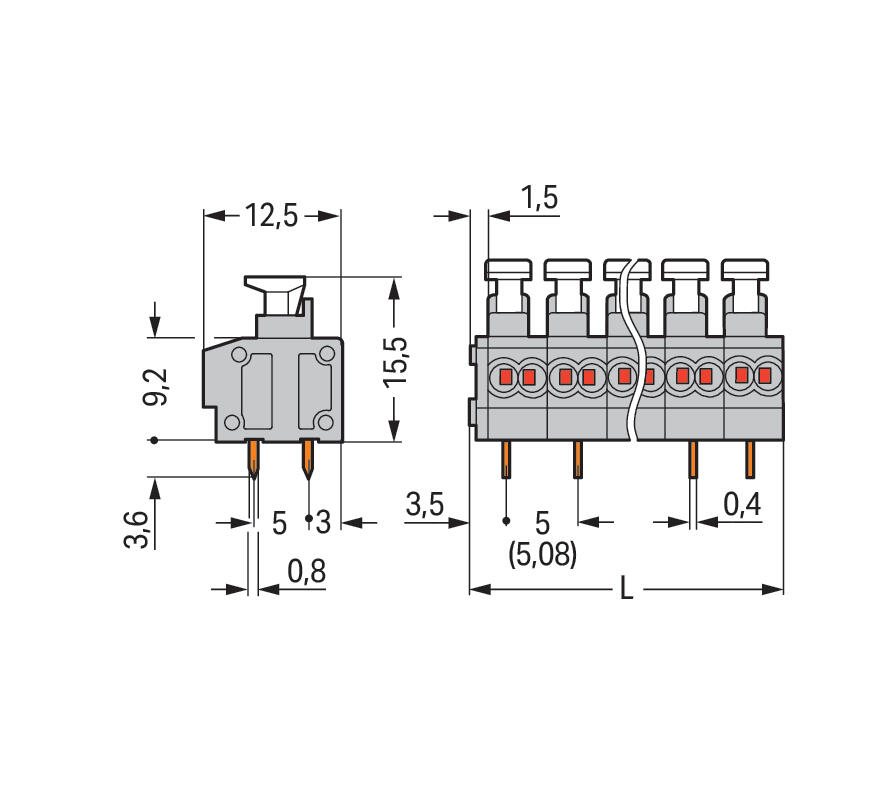

PCB terminal block, 235 Series, grayConnecting conductors is quick and easy with this PCB terminal block (item number 235-452/331-000). It is perfect for custom installations with different mounting types. Rated current and voltage are important parameters when selecting a PCB terminal block, as they indicate how the product can be used. This product has a rated voltage of 320 V and a rated current of 10 A. Strip lengths must be between 9 mm and 10 mm when connecting conductors to this PCB terminal block. This product incorporates one conductor terminal and utilizes PUSH WIRE®. Our PUSH WIRE® connection uses the stiffness of the conductor to overcome the clamping spring’s contact force, allowing faster and easier conductor clamping. The dimensions are 11.5 x 19.1 x 12.5 mm (width x height x depth). Depending on the type of conductor, this PCB terminal block is suitable for conductor cross sections ranging from 0.2 mm² to 0.75 mm². It has one level. You can connect two potentials / two poles using the four clamping points. The clamping spring is made of chrome-nickel spring steel (CrNi), the contacts are made of electrolytic copper (ECu), and the gray housing is made of polyamide (PA66) for insulation. Tin is used for coating the contact surfaces. This PCB terminal block is operated with a push-button. THT is used to solder the PCB terminal block. The conductor is designed to be inserted into the board at a 0° angle.. The solder pins are organized over the entire terminal strip (in-line). They are 0.8 x 0.4 mm and 3.6 mm in length. Each potential has two solder pins.
