Wago 235-401/332-000

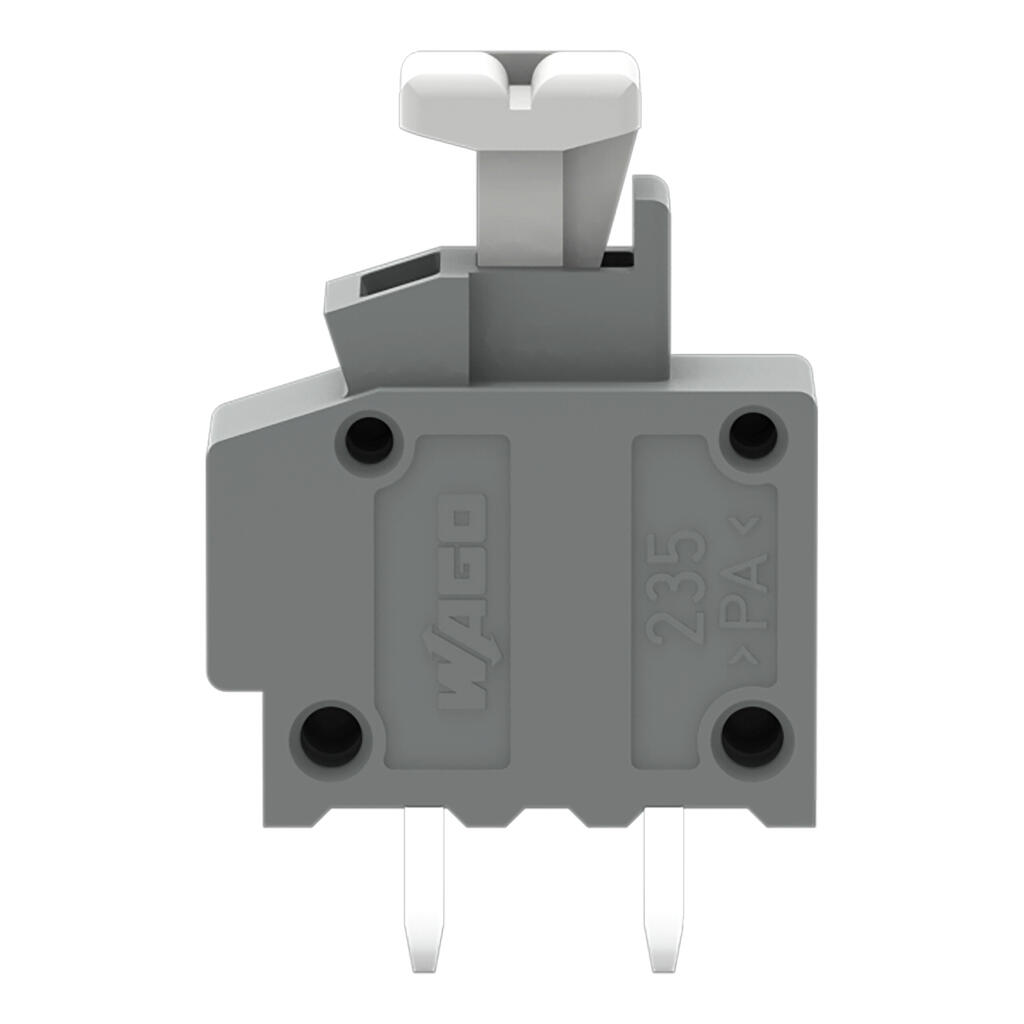

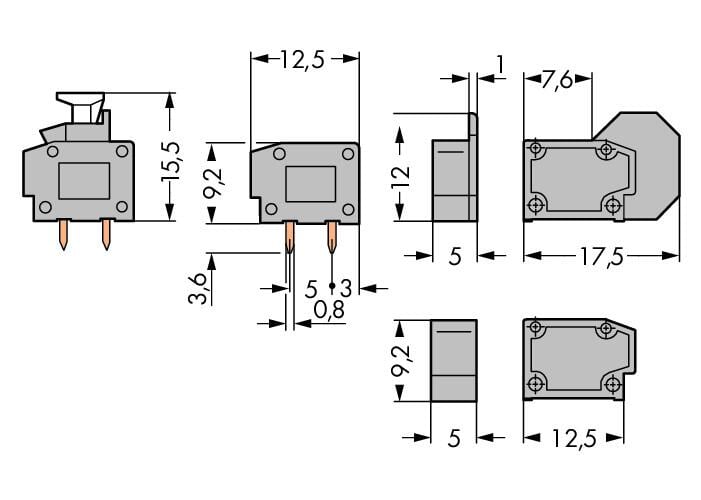

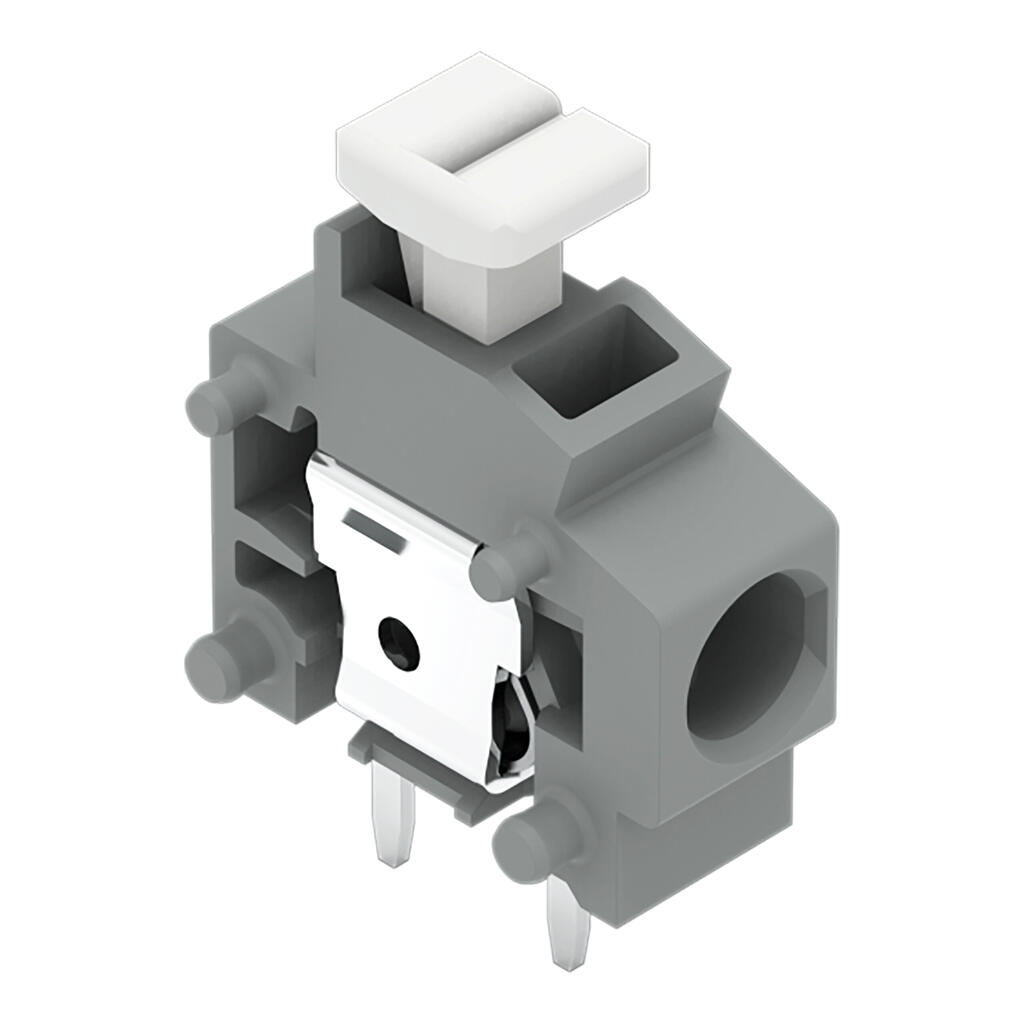

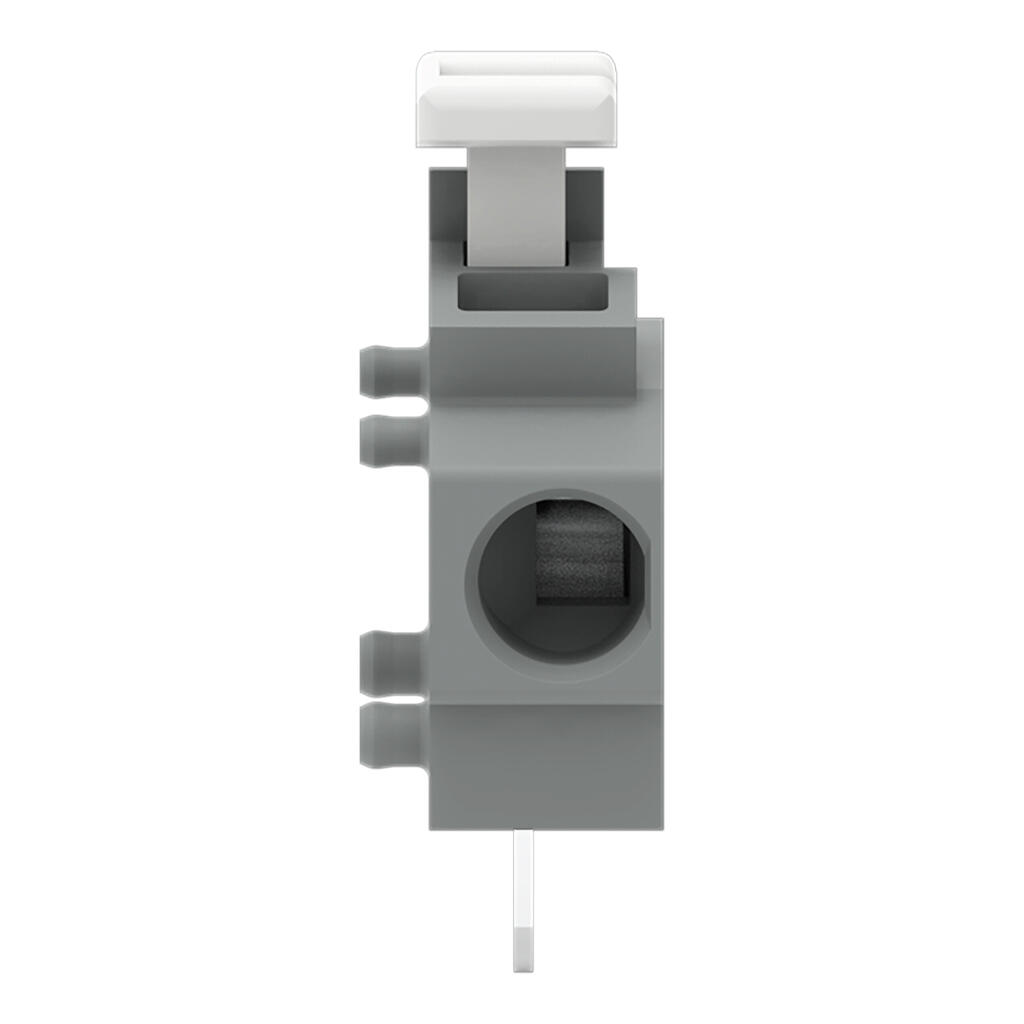

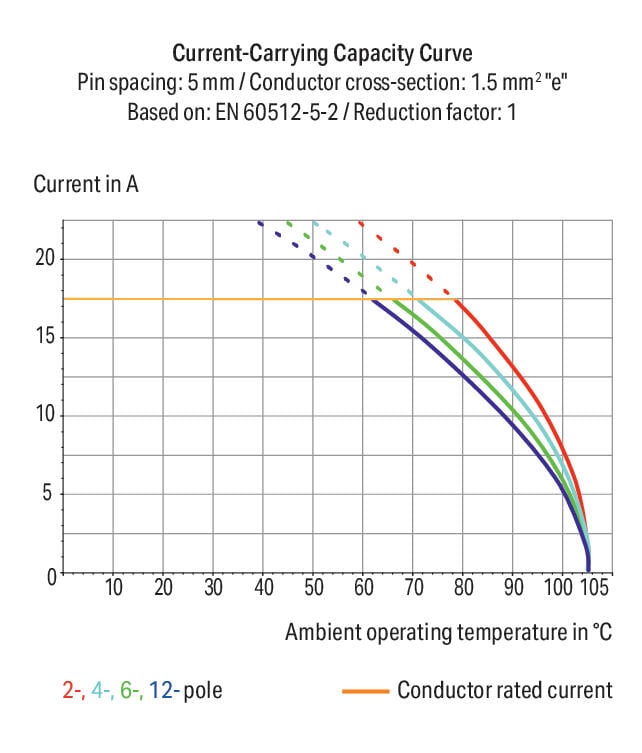

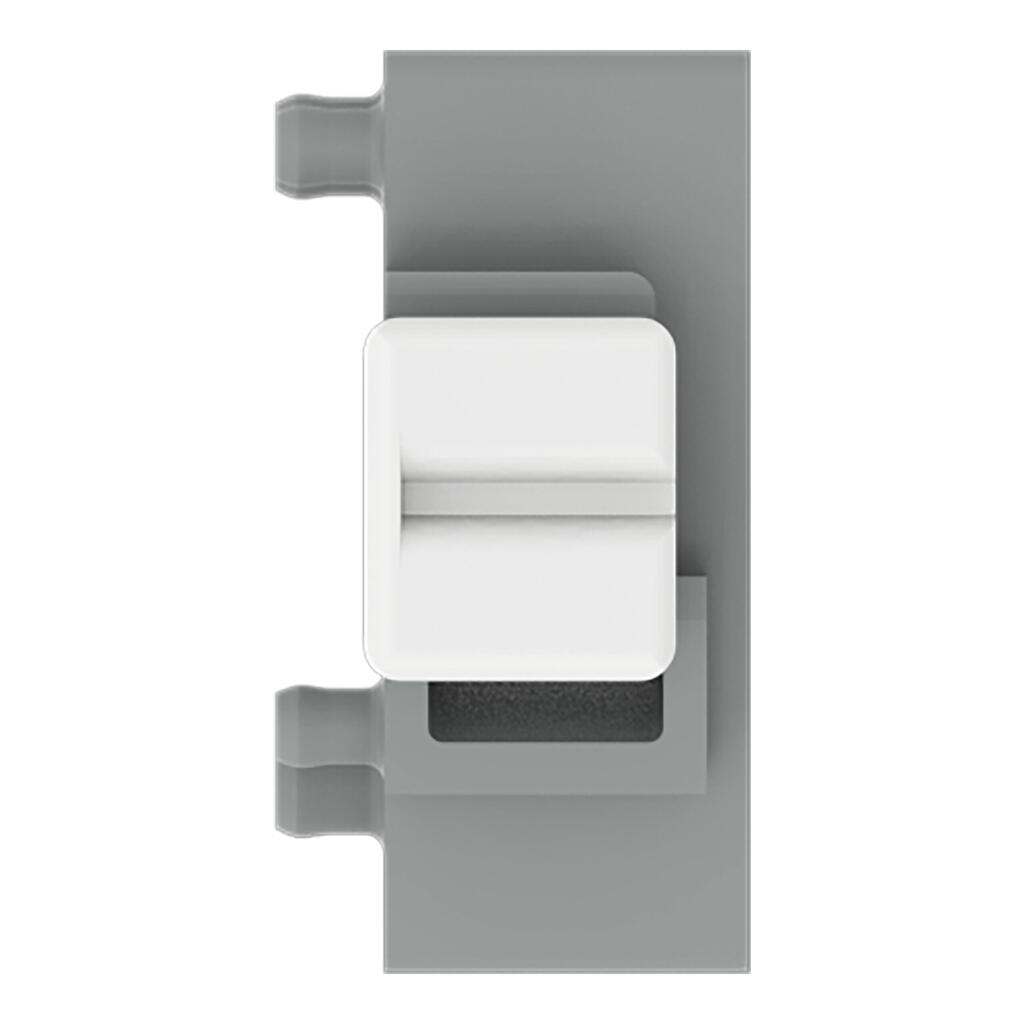

PCB terminal block, 235 Series, grayThis PCB terminal block (item number 235-401/332-000) is designed to connect conductors quickly and easily. It offers the flexibility needed for different mounting types. Our PCB terminal block is rated for 250 V and is designed for use with a rated current of up to 17.5 A. It can therefore be used in high-load applications. Strip lengths must be between 9 mm and 10 mm when connecting conductors to this PCB terminal block. This product features one conductor terminal and utilizes Push-in CAGE CLAMP®. Our Push-in CAGE CLAMP® is a universal, maintenance-free connection solution for all conductor types, boasting a key feature: both solid and fine-stranded conductors with ferrules can be directly inserted without the need for tools or any preparation, such as crimping the ferrule. Dimensions: 6.5 x 19.1 x 12.5 mm (width x height x depth). This PCB terminal block is suitable for conductor cross sections ranging from 0.2 mm² to 1.5 mm². It has one level. The single potential can connect one pole using one clamping point The contacts are made of electrolytic copper (ECu), the gray housing is made of polyamide (PA66) for insulation, and the clamping spring is made of chrome-nickel spring steel (CrNi). The contact surface is coated with tin. A push-button is used to operate this PCB terminal block. The PCB terminal block is designed for THT soldering. The conductor is designed to be inserted into the board at a 0° angle.. The solder pins, which are 0.4 x 0.8 mm in cross-section and 3.6 mm long, are laid out within the terminal block (in-line). There are two solder pins per potential.
