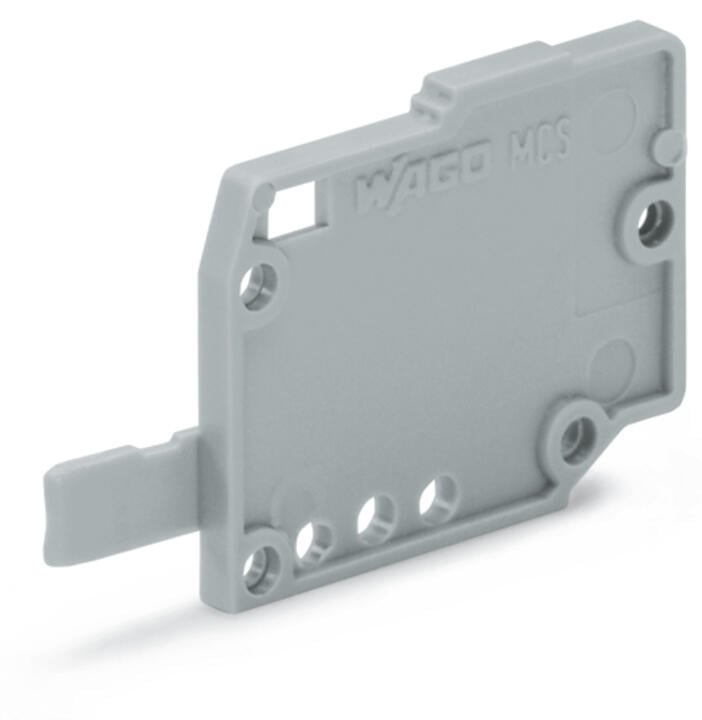

Wago 231-100
End plate; 1.5 mm thick; gray 231-100
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
End plate; 1.5 mm thick; gray 231-100
Specification
Physical data
| Width | 1.5 mm / 0.059 inches |
|---|---|
| Height | 14.3 mm / 0.563 inches |
| Depth | 26.45 mm / 1.041 inches |
Mechanical data
| Mounting type | snap-on type |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.009 MJ |
| Weight | 0.3 g |
Environmental requirements
| Processing temperature | -35 … +60 °C |
|---|
Commercial data
| Product Group | 3 (Multi Conn. System) |
|---|---|
| PU (SPU) | 200 (100) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4017332117081 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 39121702 |
|---|---|
| eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 |
| ETIM 9.0 | EC000886 |
| ETIM 10.0 | EC000886 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
