Wago 2273-500

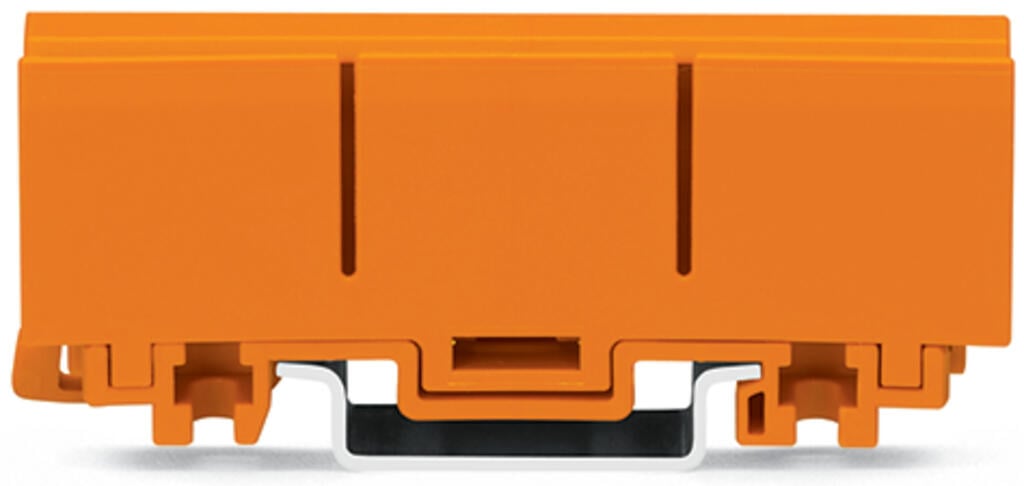

Mounting carrier; for single- and double-row con.; 2273 Series; for DIN-35 rail mounting/screw mounting; orange 2273-500
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Mounting carrier; for single- and double-row con.; 2273 Series; for DIN-35 rail mounting/screw mounting; orange 2273-500
Specification
Notes
| Note | One single carrier can hold up to 24 clamping units in a very narrow space. Previously, this was only possible using rail-mount terminal blocks.Additional benefits:Mount carrier onto DIN-35 rail or via screws – easily and quicklyAccommodate three 2.5 mm² (12 AWG) 2273 Series Connectors in a single carrierEasily exchange connectorsLarge marking area for self-adhesive marking strips or for direct marking with permanent felt-tip pen |
|---|

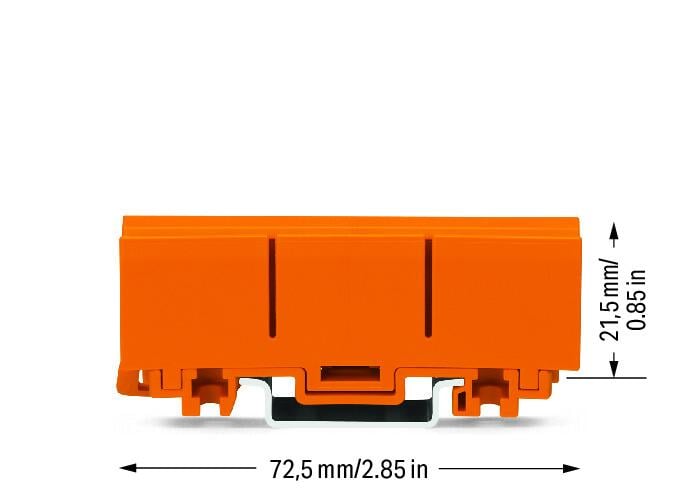

Physical data
| Width | 17.2 mm / 0.677 inches |
|---|---|
| Height | 71 mm / 2.795 inches |
| Depth from upper-edge of DIN-rail | 21.5 mm / 0.846 inches |
| Depth | 27 mm / 1.063 inches |
Mechanical data
| Mounting type | DIN-35 rail, Screw mount |
|---|---|
| Suitable | for single- and double-row connectors (2273 Series) |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | orange |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.31 MJ |
| Weight | 10.7 g |
Commercial data
| Product Group | 7 (Push Wire Conn.) |
|---|---|
| PU (SPU) | 50 (10) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4050821101871 |
| Customs tariff number | 39269097900 |
Product Classification
| UNSPSC | 39121410 |
|---|---|
| eCl@ss 10.0 | 27-14-11-92 |
| eCl@ss 9.0 | 27-14-11-92 |
| ETIM 9.0 | EC002848 |
| ETIM 10.0 | EC002848 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
