Wago 2009-174

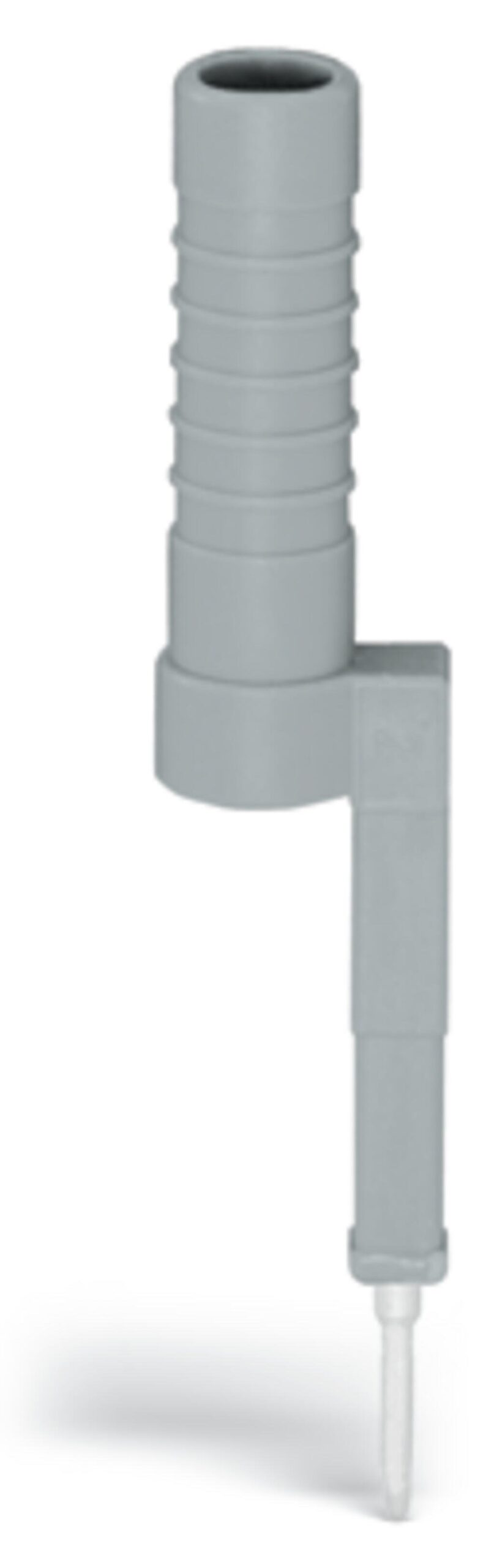

Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks; gray 2009-174
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Test plug adapter; for 4 mm Ø test plugs; for testing TOPJOB®S rail-mounted terminal blocks; gray 2009-174
Specification
Notes
| Safety Information | Power must be switched off when installing the test plug adapter. The safety guidelines for working on live installations must be observed. |
|---|
Electrical data - Ratings per IEC/EN
| Rated current | 10 A |
|---|
Physical data
| Width | 10.15 mm / 0.4 inches |
|---|---|
| Height | 48.6 mm / 1.913 inches |
| Depth | 7.2 mm / 0.283 inches |
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Fire load | 0.024 MJ |
| Weight | 2.5 g |
Environmental requirements - Environmental Testing
| Test specification: <br/>Railway applications –<br/>Rolling stock –<br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
|---|---|
| Test procedure: <br/>Railway applications – <br/>Rolling stock equipment – <br/>Vibration and shock tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
| Spectrum/Mounting location | Service life test, Category 1, Class A/B |
| Functional test with noise-like oscillations | Test passed according to Section 8 of the standard |
| Frequency | f1 = 5 Hz to f2 = 150 Hz |
| Acceleration | 0.101g (highest test level used for all axes) |
| Test duration per axis | 10 min. |
| Test directions | X, Y and Z axes |
| Monitoring of contact faults and interruptions | Passed |
| Voltage drop measurement before and after each axis | Passed |
| Simulated service life test through increased levels of noise-like oscillations | Test passed according to Section 9 of the standard |
| Frequency | f1 = 5 Hz to f2 = 150 Hz |
| Acceleration | 0.572g (highest test level used for all axes) |
| Test duration per axis | 5 h |
| Test directions | X, Y and Z axes |
| Extended testing: Monitoring of contact faults and interruptions | Passed |
| Extended testing: Voltage drop measurement before and after each axis | Passed |
| Shock test | Test passed according to Section 10 of the standard |
| Shock pulse form | Half sine |
| Acceleration | 5g (highest test level used for all axes) |
| Shock duration | 30 ms |
| Number of shocks (per axis) | 3 pos. und 3 neg. |
| Test directions | X, Y and Z axes |
| Extended testing: Monitoring of contact faults and interruptions | Passed |
| Extended testing: Voltage drop measurement before and after each axis | Passed |
| Vibration and shock stress for rolling stock equipment | Passed |
Commercial data
| Product Group | 2 (Terminal Block Accessories) |
|---|---|
| PU (SPU) | 100 (25) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4017332074988 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121409 |
|---|---|
| eCl@ss 10.0 | 27-14-11-48 |
| eCl@ss 9.0 | 27-14-11-48 |
| ETIM 9.0 | EC002555 |
| ETIM 10.0 | EC002555 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| CAS-No. | 7439-92-1 |
|---|---|
| REACH Candidate List Substance | Lead |
| RoHS Compliance Status | Compliant,With Exemption |
| RoHS Exemption | 6(c) |
| SCIP notification number (Austria) | 1bfe9d8d-c4e0-4a6d-83c7-cf06dc9eadad |
| SCIP notification number (Belgium) | a3edd670-1365-4ee8-a93b-d1a159ff4e85 |
| SCIP notification number (Bulgaria) | 7a1dfd17-054a-4a77-9814-bfeaddfaffbd |
| SCIP notification number (Czech Republic) | f6ba8076-4b3e-4554-bada-9257290cdabb |
| SCIP notification number (Denmark) | cdfc2ba4-20f3-4859-95b5-95ce6982cad9 |
| SCIP notification number (Finland) | 8f57db27-6d24-4acd-9ffe-bbe0235eb83c |
| SCIP notification number (France) | d051844b-e912-4d8f-b1de-970af13d61b5 |
| SCIP notification number (Germany) | aedda25b-65bf-4057-99e2-5773fe464019 |
| SCIP notification number (Hungary) | fb448482-0d52-42b7-b903-113f4c0590ec |
| SCIP notification number (Italy) | 41463d2b-01cc-487a-b815-be66de537a8a |
| SCIP notification number (Netherlands) | ffd6a813-8826-402e-ae0c-0ecc31f5d6ca |
| SCIP notification number (Poland) | b375c51f-dfab-45af-9b76-2fe6547e2f46 |
| SCIP notification number (Romania) | bb60bde0-4755-4d68-bed3-89a3817c43e8 |
| SCIP notification number (Sweden) | d1d53a18-fac1-4eec-b726-d8e185c6abed |
