Wago 2009-163

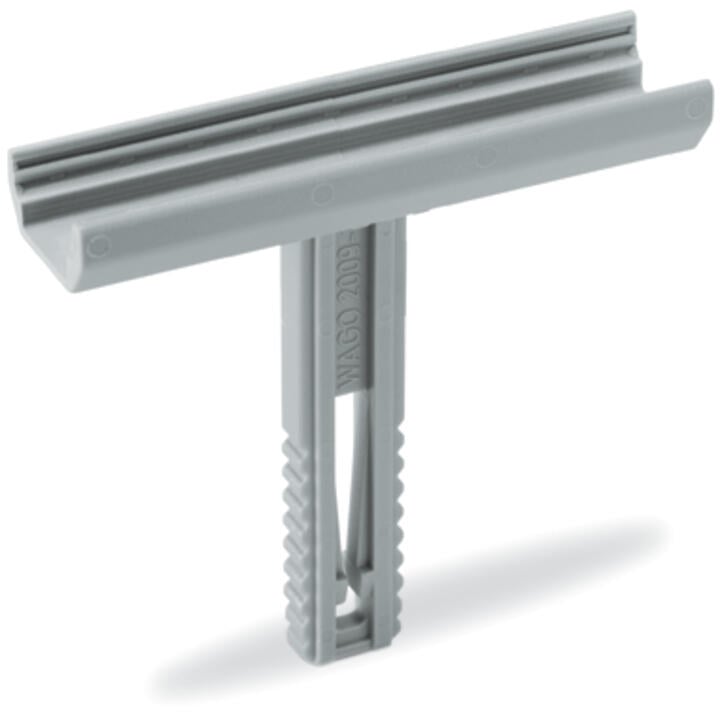

Group marker carrier; gray 2009-163
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Group marker carrier; gray 2009-163
Specification
Technical data
| Suitable | for end stops (249‑116 and 249‑117); for 9 WMB markers or 1 TOPJOB® S marking strip |
|---|---|
| Properties | Snap-on type and adjustable in height from 45 mm to 61 mm |
Physical data
| Height | 45 mm / 1.772 inches |
|---|---|
| Width | 12.2 mm / 0.48 inches |
| Depth | 46.2 mm / 1.819 inches |
Material data
| Color | gray |
|---|---|
| Weight | 2 g |
| Fire load | 0.061 MJ |
Environmental requirements - Environmental Testing
| Test specification: <br/>Railway applications –<br/>Rolling stock –<br/>Electronic equipment | DIN EN 50155 (VDE 0115-200):2022-06 |
|---|---|
| Test procedure: <br/>Railway applications – <br/>Rolling stock equipment – <br/>Vibration and shock tests | DIN EN 61373 (VDE 0115-0106):2011-04 |
| Spectrum/Mounting location | Service life test, Category 1, Class A/B |
| Functional test with noise-like oscillations | Test passed according to Section 8 of the standard |
| Frequency | f1 = 5 Hz to f2 = 150 Hz |
| Acceleration | 0.101g (highest test level used for all axes) |
| Test duration per axis | 10 min. |
| Test directions | X, Y and Z axes |
| Monitoring of contact faults and interruptions | Passed |
| Voltage drop measurement before and after each axis | Passed |
| Simulated service life test through increased levels of noise-like oscillations | Test passed according to Section 9 of the standard |
| Frequency | f1 = 5 Hz to f2 = 150 Hz |
| Acceleration | 0.572g (highest test level used for all axes) |
| Test duration per axis | 5 h |
| Test directions | X, Y and Z axes |
| Extended testing: Monitoring of contact faults and interruptions | Passed |
| Extended testing: Voltage drop measurement before and after each axis | Passed |
| Shock test | Test passed according to Section 10 of the standard |
| Shock pulse form | Half sine |
| Acceleration | 5g (highest test level used for all axes) |
| Shock duration | 30 ms |
| Number of shocks (per axis) | 3 pos. und 3 neg. |
| Test directions | X, Y and Z axes |
| Extended testing: Monitoring of contact faults and interruptions | Passed |
| Extended testing: Voltage drop measurement before and after each axis | Passed |
| Vibration and shock stress for rolling stock equipment | Passed |
Commercial data
| Product Group | 2 (Terminal Block Accessories) |
|---|---|
| PU (SPU) | 50 (25) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4050821388937 |
| Customs tariff number | 39269097900 |
Product Classification
| UNSPSC | 39121703 |
|---|---|
| eCl@ss 10.0 | 27-14-40-75 |
| eCl@ss 9.0 | 27-14-40-75 |
| ETIM 9.0 | EC002248 |
| ETIM 10.0 | EC002248 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
