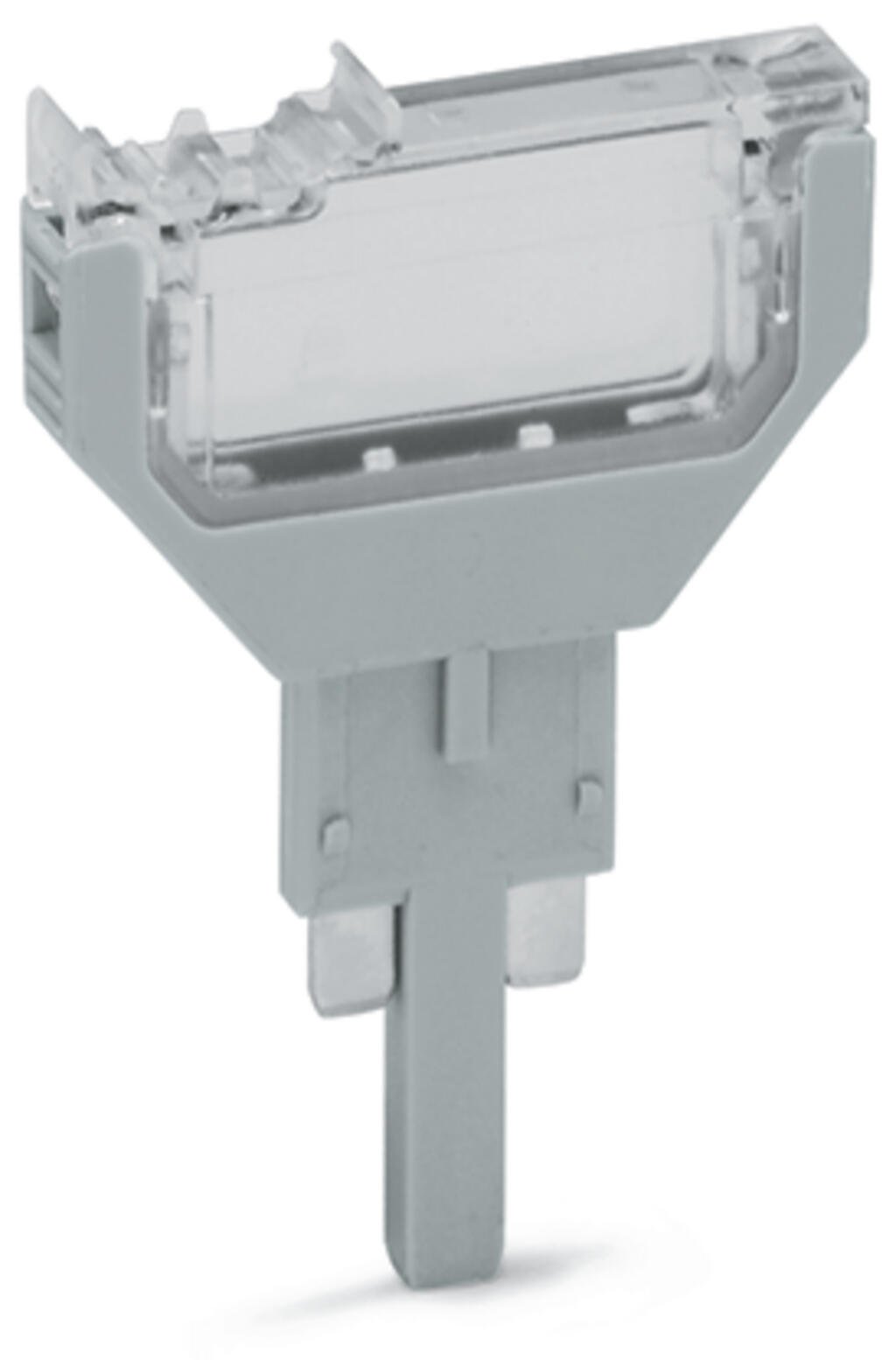

Wago 2002-800
Empty component plug housing, 2002 Series, grayEnjoy effortless electrical installations with this empty component plug housing (item number 2002-800). The item’s dimensions are (5.2 x 29.6 x 41.8) mm…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Empty component plug housing, 2002 Series, grayEnjoy effortless electrical installations with this empty component plug housing (item number 2002-800). The item’s dimensions are (5.2 x 29.6 x 41.8) mm (width x height x depth).
Specification
Physical data
| Width | 5.2 mm / 0.205 inches |
|---|---|
| Height | 29.6 mm / 1.165 inches |
| Depth | 41.8 mm / 1.646 inches |
Mechanical data
| Marking level | Center marking |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | gray |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.069 MJ |
| Weight | 2.9 g |
Environmental requirements
| Processing temperature | -35 … +85 °C |
|---|---|
| Continuous operating temperature | -60 … +105 °C |
Commercial data
| Product Group | 22 (TOPJOB S) |
|---|---|
| PU (SPU) | 100 pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454857769 |
| Customs tariff number | 85366990990 |
Product Classification
| UNSPSC | 39121421 |
|---|---|
| eCl@ss 10.0 | 27-14-11-49 |
| eCl@ss 9.0 | 27-18-27-02 |
| ETIM 9.0 | EC002018 |
| ETIM 10.0 | EC002018 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
