Wago 2002-7292
End and intermediate plate; 0.8 mm thick; orange 2002-7292
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

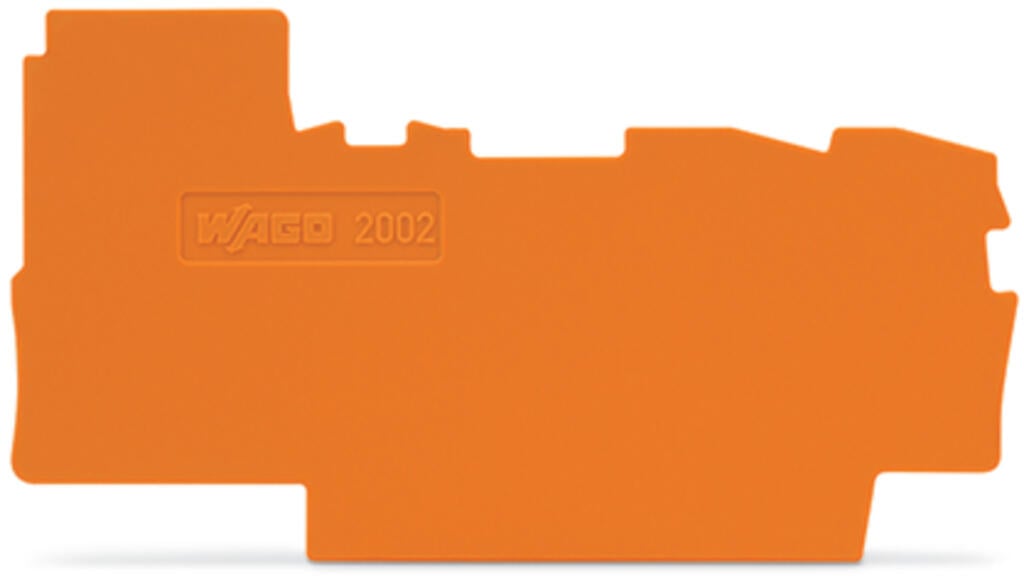

End and intermediate plate; 0.8 mm thick; orange 2002-7292
Specification
Physical data
| Width | 0.8 mm / 0.031 inches |
|---|---|
| Height | 67 mm / 2.638 inches |
| Depth | 38.1 mm / 1.5 inches |
Mechanical data
| Mounting type | snap-on type |
|---|
Material data
| Note (material data) | Information on material specifications can be found here |
|---|---|
| Color | orange |
| Material group | I |
| Insulation material (main housing) | Polyamide (PA66) |
| Flammability class per UL94 | V0 |
| Fire load | 0.049 MJ |
| Weight | 1.6 g |
Commercial data
| Product Group | 22 (TOPJOB S) |
|---|---|
| PU (SPU) | 100 (25) pcs |
| Packaging type | box |
| Country of origin | DE |
| GTIN | 4045454837372 |
| Customs tariff number | 85389099990 |
Product Classification
| UNSPSC | 39121702 |
|---|---|
| eCl@ss 10.0 | 27-14-11-33 |
| eCl@ss 9.0 | 27-14-11-33 |
| ETIM 9.0 | EC000886 |
| ETIM 10.0 | EC000886 |
| ECCN | NO US CLASSIFICATION |
Environmental Product Compliance
| RoHS Compliance Status | Compliant,No Exemption |
|---|
