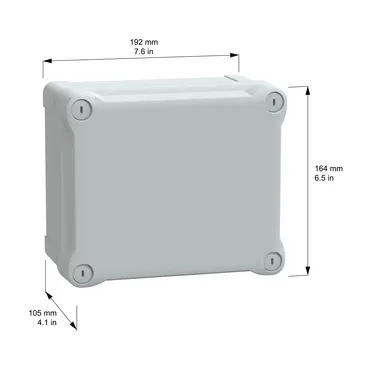

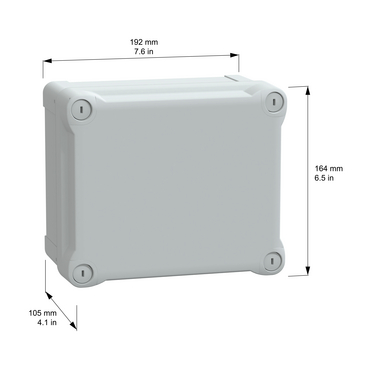

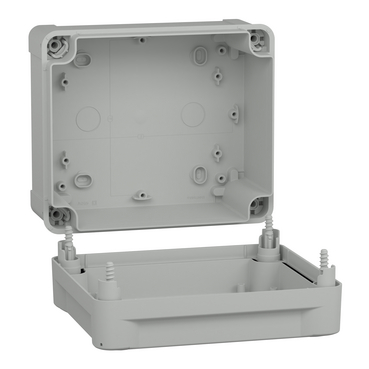

Schneider Electric NSYTBP191610H
PC box IP66 IK08 RAL7035 Int.H175W150D100 Ext.H193W164D105 opaque PC cover H40
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT TBP |
| Device application | Multi-purpose |
| Category | Industrial box |
| Height | 192 mm |
| Width | 164 mm |
| Depth | 105 mm |
| Internal height | 175 mm |
| Internal width | 150 mm |
| Internal depth | 100 mm |
| Enclosure mounting | Wall mounted |
| Device composition | 1 body, 1 cover, 4 cover screw |
| Body type | One piece moulded |
| Type of front cover | High plain cover |
| Cover fixing | Plastic screws |
| Lock type | Captive screw flat outside sealed area |
| Removable parts | Cover by captive screws |
| Material | Polycarbonate |
| Colour | Grey (RAL 7035) |
| Standards | UL 508 A, IEC 62208 |
| Product certifications | TÃœV, UL |
| Electrical insulation class | Class II |
| Mounting location | Outdoor (with canopy or shelter and anticondensation valve) |
| Net weight | 0.62 kg |
| IP degree of protection | IP66 conforming to NEMA 4.4X |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Fire resistance | 960 °C |
| Ambient air temperature for storage | -15…60 °C |
| Operating temperature | -25…80 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 12.000 cm |
| Package 1 Width | 17.000 cm |
| Package 1 Length | 20.500 cm |
| Package 1 Weight | 597.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 17 |
| Package 2 Height | 40.000 cm |
| Package 2 Width | 41.000 cm |
| Package 2 Length | 61.000 cm |
| Package 2 Weight | 10.149 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 204 |
| Package 3 Height | 134.500 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 133.000 kg |
| Warranty | 18 months |
