Schneider Electric NSYTBP19128T
Thalassa TBP industrial PC box with transparent PC cover H20. Int is 175 x 105 x 80 mm. Ext is 192 x 121 x 87 mm. Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver capt…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

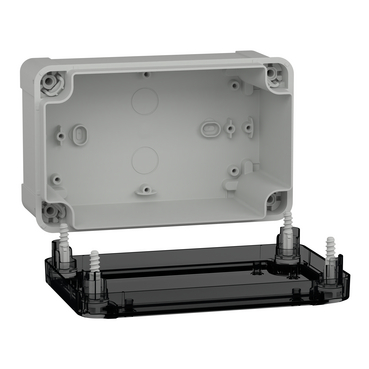

Thalassa TBP industrial PC box with transparent PC cover H20. Int is 175 x 105 x 80 mm. Ext is 192 x 121 x 87 mm. Wall mounted enclosure. Low transparent cover. Outside sealed is flat screwdriver captive screw lock. Certifications is DEMKO, SEMKO, TÜV, UL. UL 508 A Standard. Fire resistance 960°. Polycarbonate made. IP66 (NEMA 4.4X), IK08, Grey RAL 7035, Insulation Class II. Set of 5. Ambient temperature for storage/operation is (-15 to 60 °C)/(-25 to 80 °C).
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT TBP |
| Device application | Multi-purpose |
| Category | Industrial box |

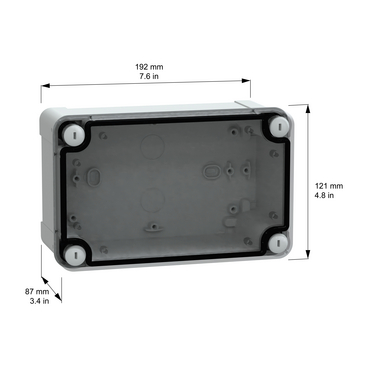

| Height | 192 mm |
| Width | 121 mm |
| Depth | 87 mm |
| Internal height | 175 mm |
| Internal width | 105 mm |
| Internal depth | 80 mm |

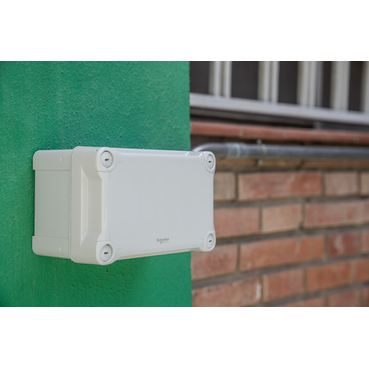

| Enclosure mounting | Wall mounted |
| Device composition | 1 body, 1 cover, 4 cover screw |
| Quantity per set | Set of 2 |
| Body type | One piece moulded |
| Type of front cover | Low transparent cover |
| Cover fixing | Plastic screws |
| Lock type | Captive screw flat outside sealed area |
| Removable parts | Cover by captive screws |
| Material | Polycarbonate |
| Colour | Grey (RAL 7035), Transparent |
| Standards | IEC 62208, UL 508 A |
| Product certifications | TÃœV, UL |
| Electrical insulation class | Class II |
| Mounting location | Outdoor (with canopy or shelter and anticondensation valve) |
| Net weight | 0.38 kg |
| IP degree of protection | IP66 conforming to NEMA 4.4X |
| IK degree of protection | IK08 conforming to IEC 62262 |
| Fire resistance | 960 °C |
| Ambient air temperature for storage | -15…60 °C |
| Operating temperature | -25…80 °C |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 8.700 cm |
| Package 1 Width | 12.100 cm |
| Package 1 Length | 19.200 cm |
| Package 1 Weight | 380.000 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 28 |
| Package 2 Height | 40.000 cm |
| Package 2 Width | 41.000 cm |
| Package 2 Length | 60.000 cm |
| Package 2 Weight | 12.568 kg |
| Unit Type of Package 3 | P12 |
| Number of Units in Package 3 | 336 |
| Package 3 Height | 135.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 120.000 cm |
| Package 3 Weight | 164.000 kg |
| Warranty | 18 months |
