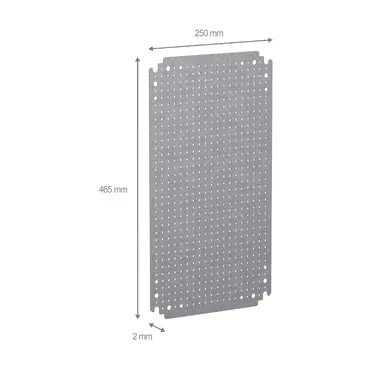

Schneider Electric NSYMF53
Microperforated mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is500 x W is300 mm. With holes diam 3,6mm on 12,5mm pitch. Multi-purpose mounting access. Step slide mounting location o…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
Microperforated mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is500 x W is300 mm. With holes diam 3,6mm on 12,5mm pitch. Multi-purpose mounting access. Step slide mounting location or direct fixing on backstuds (M8 screws). 60 Kg permissible load. Galvanised steel. Reversible dimensions is Can be installed in enclosure with inverted dimensions.
Specification
| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | – H: 500 mm W: 300 mm, – H: 300 mm W: 500 mm |
| Mounting location | Step slide, Direct fixing on backstuds |
| Mounting plate description | Microperforated |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | Screwed on backstuds – screw type M8, By fixing element |
| Permanent permissible load | 60 kg |
| Height | 450 mm |
| Width | 250 mm |
| Depth | 125 mm |
| Thickness | 1.8 mm |
| Net weight | 1.68 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.300 cm |
| Package 1 Width | 25.000 cm |
| Package 1 Length | 46.500 cm |
| Package 1 Weight | 1.644 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 200 |
| Package 2 Height | 45.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 342.000 kg |
| Warranty | 18 months |
