Schneider Electric NSYMF44
Microperforated mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is400 x W is400 mm. With holes diam 3,6mm on 12,5mm pitch. Multi-purpose mounting access. Step slide mounting location o…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

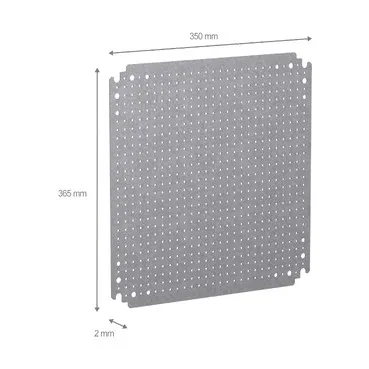

Microperforated mounting plate for Spacial CRN, S3D, S3X, PLM. For enclosures H is400 x W is400 mm. With holes diam 3,6mm on 12,5mm pitch. Multi-purpose mounting access. Step slide mounting location or direct fixing on backstuds (M8 screws). 60 Kg permissible load. Galvanised steel.
Specification
| Range | PanelSeT |
|---|---|
| Accessory / separate part category | Mounting accessory |
| Product or component type | Mounting plate |
| Device application | Multi-purpose |
| Enclosure nominal dimensions | – H: 400 mm W: 400 mm |
| Mounting location | Direct fixing on backstuds, Step slide |
| Mounting plate description | Microperforated |
| Range compatibility | PanelSeT S3D, PanelSeT CRN, PanelSeT PLM |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Fixing mode | Screwed on backstuds – screw type M8, By fixing element |
| Permanent permissible load | 60 kg |
| Height | 365 mm |
| Width | 350 mm |
| Depth | 125 mm |
| Thickness | 1.8 mm |
| Net weight | 1.9 kg |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 0.300 cm |
| Package 1 Width | 35.000 cm |
| Package 1 Length | 37.000 cm |
| Package 1 Weight | 1.870 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 120 |
| Package 2 Height | 45.000 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 237.000 kg |
| Warranty | 18 months |
