Schneider Electric NSYCRN66250P

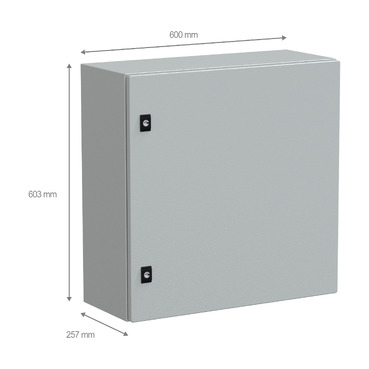

Spacial CRN is a multi-purpose steel wall-mounting enclosure with a nominal height, width, and depth of 600mm, 600mm, and 250mm, respectively It is designed for use in harsh environments, withstanding high impact due to its IK10 (IEC62262) rating and high resistance to dust and water with an IP66 rating (IEC60529) The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish It comes with a cable gland plate, a plain door with a three-point lock and a 3mm double-bar insert as well as a galvanised steel mounting plate The door can be opened up to 120°, allowing easy access to the equipment inside The door, the cable gland plate, and the mounting plate can be removed for maintenance purposes The net weight of the enclosure is 19,54kg It is certified by UL, cUL, and DNV-GL The back is welded with double profile forming a protected sealed area and the sides are made from a single folded section The accessibility for operation is from the front This compact enclosure is c.UL certified.
