Fast delivery within 72 Hours
Schneider Electric NSYCRN66250
TheSpacial CRN steel wall-mounting enclosure is designed for multi-purpose applications and is certified by UL, cUL, and DNV-GL It is designed for use in harsh environments, withstanding high impact d…
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description

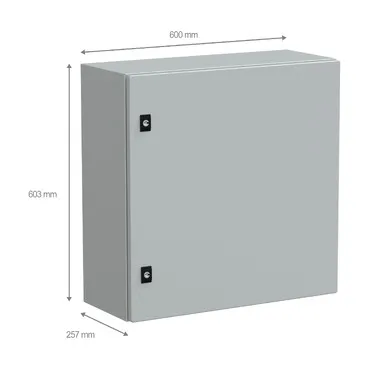

TheSpacial CRN steel wall-mounting enclosure is designed for multi-purpose applications and is certified by UL, cUL, and DNV-GL It is designed for use in harsh environments, withstanding high impact due to its IK10 (IEC62262) rating and high resistance to dust and water with an IP66 rating (IEC60529) This enclosure has a nominal height, width, and depth of 600mm, 600mm, and 250mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, a cable gland plate, a plain door, and a lock The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a three-point lock with a 3mm double-bar insert The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 15,094kg
Specification
| Range | PanelSeT |
|---|---|
| Product name | PanelSeT CRN |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 600 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 250 mm |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 cable gland plate, 1 door, 1 lock |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Body type | Sides made from a single folded section, Back welded with double profile forming a protected sealed area |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Type of gland plate | Standard |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL, cUL, DNV-GL |
| Net weight | 15.094 kg |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 27.000 cm |
| Package 1 Width | 61.500 cm |
| Package 1 Length | 61.500 cm |
| Package 1 Weight | 15.094 kg |
| Unit Type of Package 2 | PAM |
| Number of Units in Package 2 | 18 |
| Package 2 Height | 197.500 cm |
| Package 2 Width | 100.000 cm |
| Package 2 Length | 120.000 cm |
| Package 2 Weight | 285.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
