Danfoss (Drives) 12611A-24-24Z

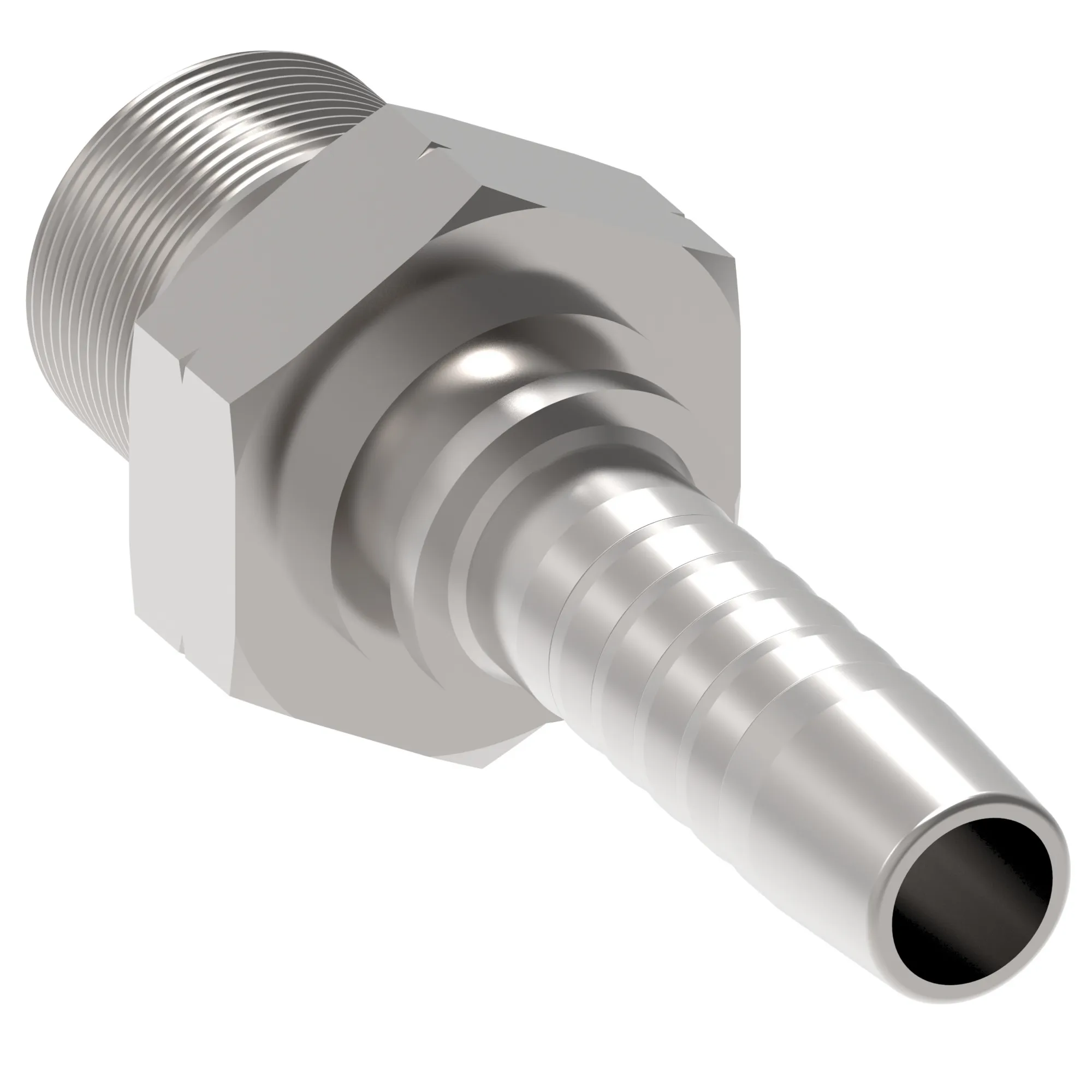

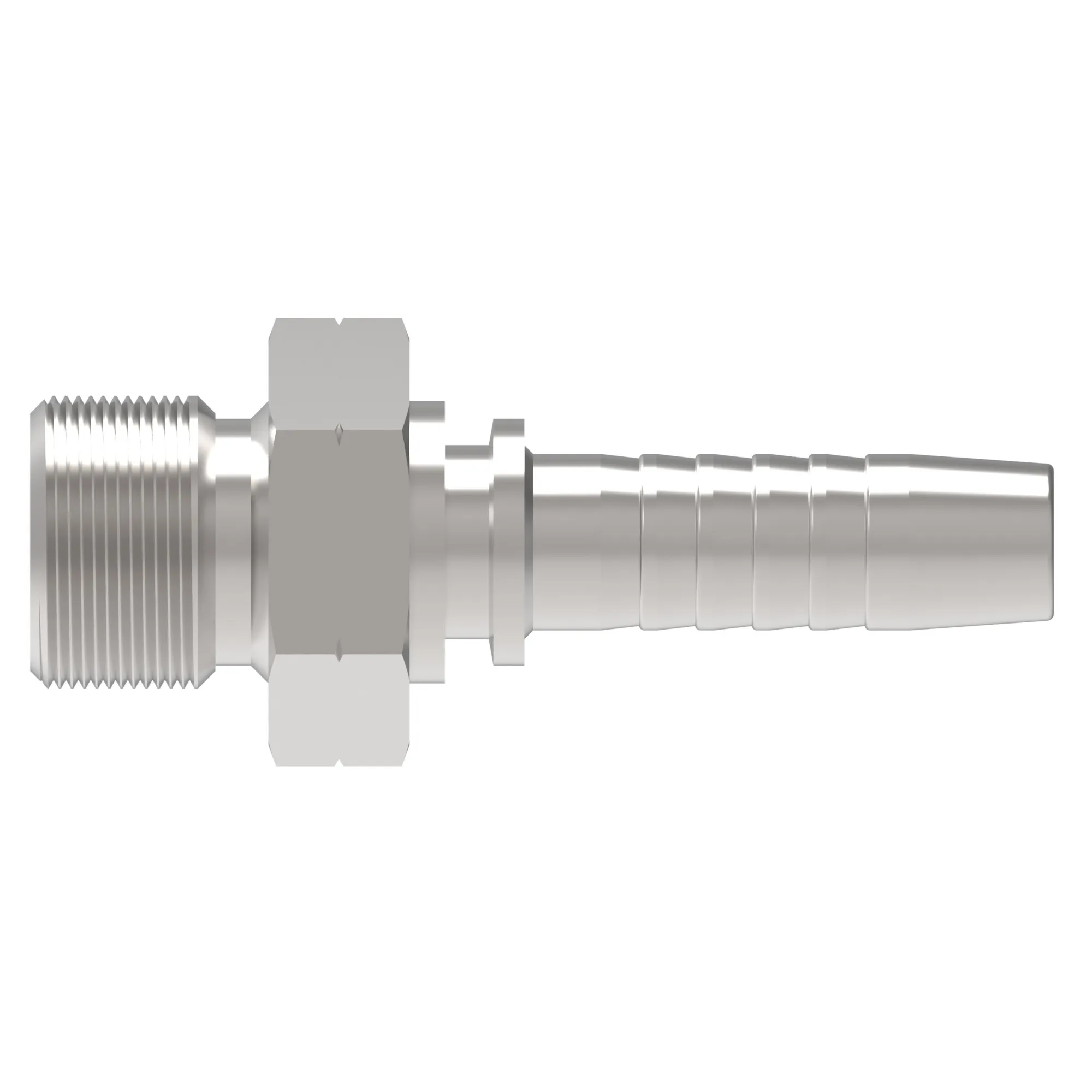

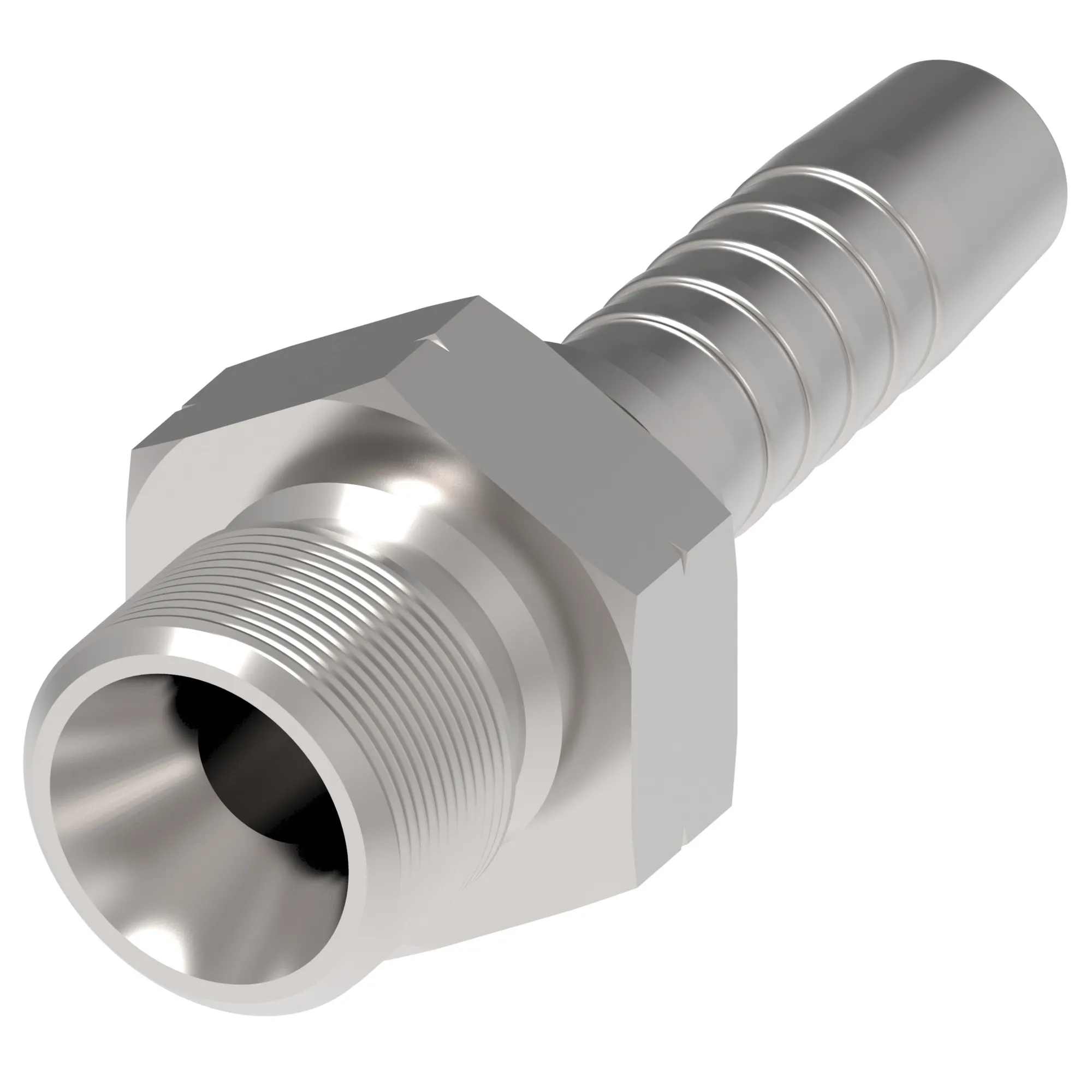

HOSE NIPPLE ASSY,2P/24,BSPJ/24,CS,STR – 12611A-24-24Z
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE ASSY,2P/24,BSPJ/24,CS,STR – 12611A-24-24Z
Specification
| A Dimension In | 4.606 |
|---|---|
| A Dimension Mm | 117.000 |
| Angle Shape | Straight |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 1.500 |
| Compatible Hose Id Mm | 38.100 |
| Construction Style | Crimp |
| End Connection Torque | 258-347 lb-ft(350-470 Nm) |
| End Size 1 | -24 |
| End Size 2 | -24 |
| End Type 1 | Male BSPP 60 degree cone |
| End Type 2 | Line/hose/tube |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 2.165 |
| Hex Size 1 Mm | 55.000 |
| Hose Cut Off Factor In | 1.929 |
| Hose Cut Off Factor Mm | 49.000 |
| Hose Size | -24 |
| Inside Diameter In | 1.259 |
| Inside Diameter Mm | 32.000 |
| Product Height In | 2.500 |
| Product Height Mm | 63.500 |
| Product Length In | 4.606 |
| Product Length Mm | 117.000 |
| Product Material | Carbon steel |
| Product Width In | 2.165 |
| Product Width Mm | 55 |
| Series | Winner 2-Piece |
| Thread Sealant | No |
| Thread Size 1 | G 1 1/2 |
| Working Pressure Max Bar | 138 |
| Working Pressure Max Psi | 2000 |
| Working Temperature Max C | 100 |
| Working Temperature Max F | 212 |
| Working Temperature Min C | -40 |
| Working Temperature Min F | -40 |
