Danfoss (Drives) 12611A-20-20Z

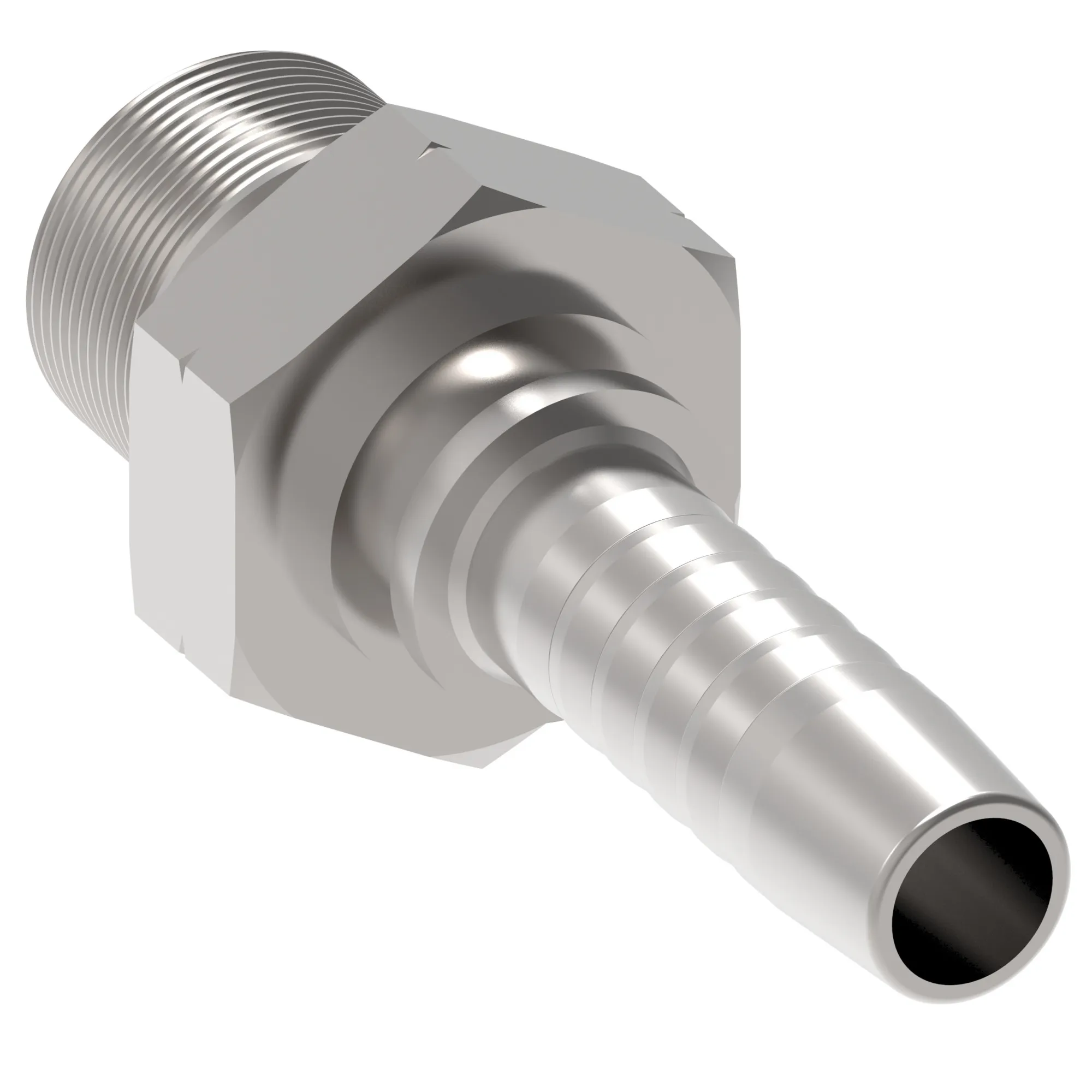

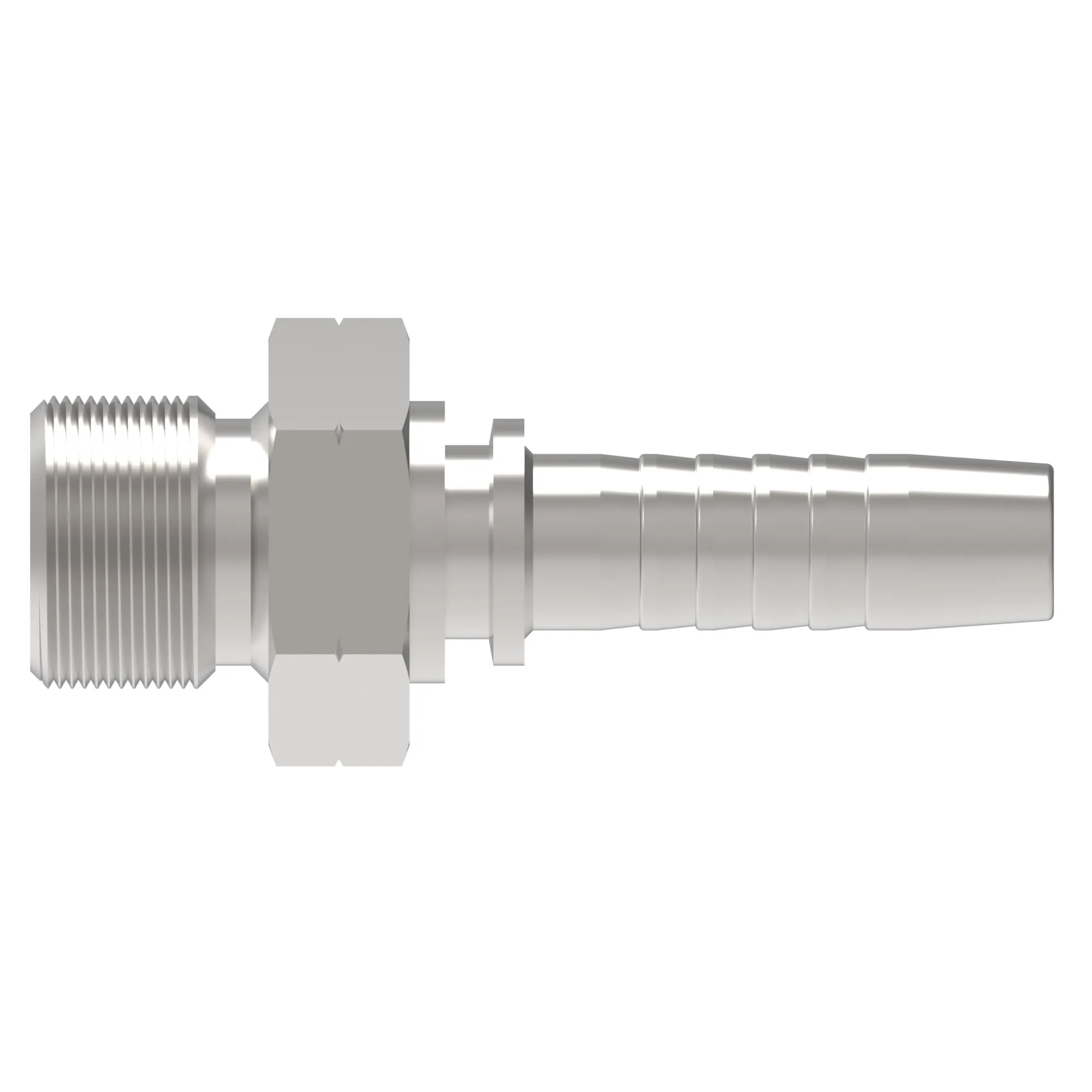

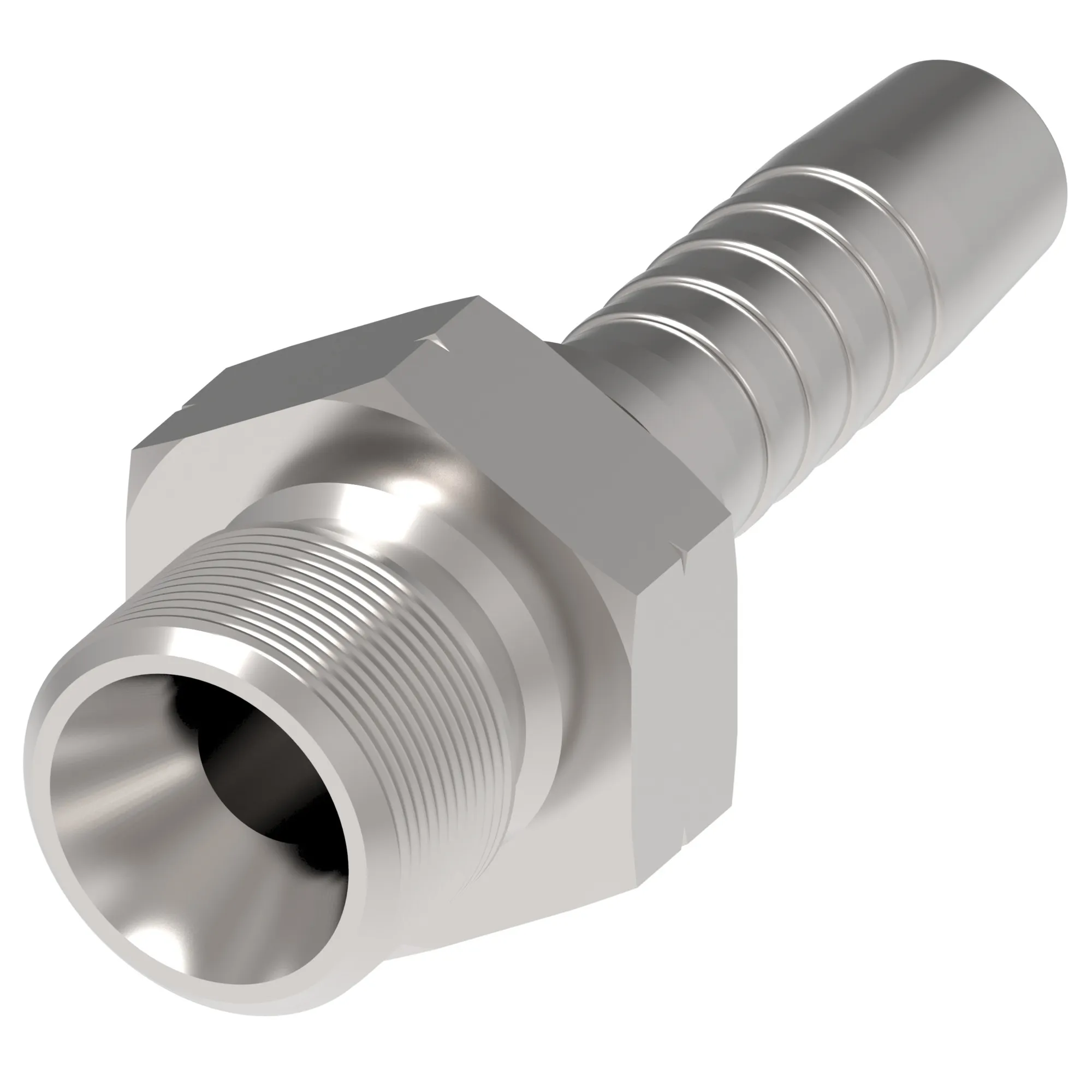

HOSE NIPPLE ASSY,2P/20,BSPJ/20,CS,STR – 12611A-20-20Z
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
HOSE NIPPLE ASSY,2P/20,BSPJ/20,CS,STR – 12611A-20-20Z
Specification
| A Dimension In | 3.956 |
|---|---|
| A Dimension Mm | 100.500 |
| Angle Shape | Straight |
| Brand | Winner by Danfoss |
| Compatible Hose Id In | 1.250 |
| Compatible Hose Id Mm | 31.800 |
| Construction Style | Crimp |
| End Connection Torque | 170-192 lb-ft(230-260 Nm) |
| End Size 1 | -20 |
| End Size 2 | -20 |
| End Type 1 | Male BSPP 60 degree cone |
| End Type 2 | Line/hose/tube |
| Finish Plating | Zinc plating |
| Hex Size 1 In | 1.969 |
| Hex Size 1 Mm | 50.000 |
| Hose Cut Off Factor In | 1.830 |
| Hose Cut Off Factor Mm | 46.500 |
| Hose Size | -20 |
| Inside Diameter In | 1.062 |
| Inside Diameter Mm | 27.000 |
| Product Height In | 2.271 |
| Product Height Mm | 57.700 |
| Product Length In | 3.956 |
| Product Length Mm | 100.500 |
| Product Material | Carbon steel |
| Product Width In | 1.968 |
| Product Width Mm | 50 |
| Series | Winner 2-Piece |
| Thread Sealant | No |
| Thread Size 1 | G 1 1/4 |
| Working Pressure Max Bar | 172 |
| Working Pressure Max Psi | 2500 |
| Working Temperature Max C | 100 |
| Working Temperature Max F | 212 |
| Working Temperature Min C | -40 |
| Working Temperature Min F | -40 |
