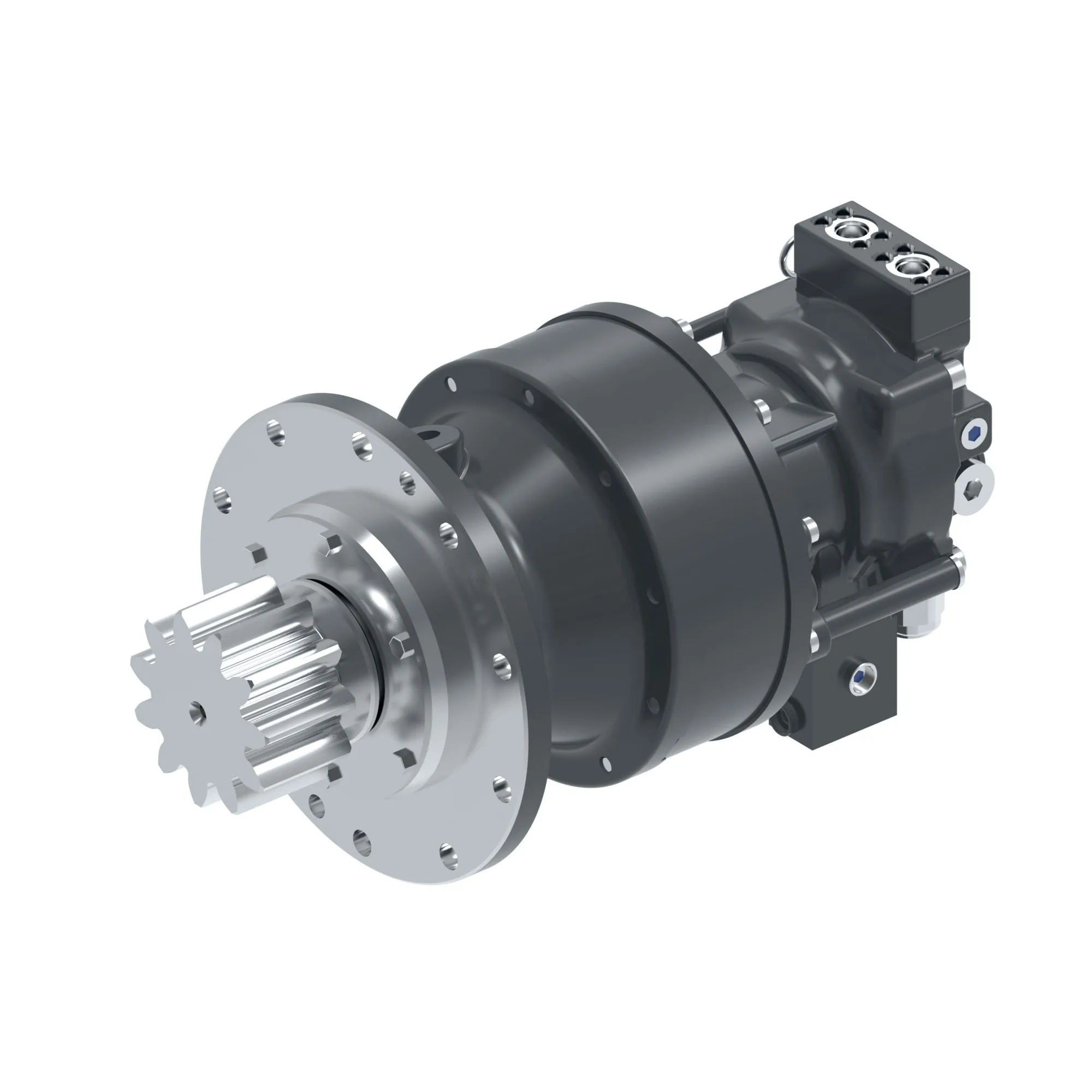

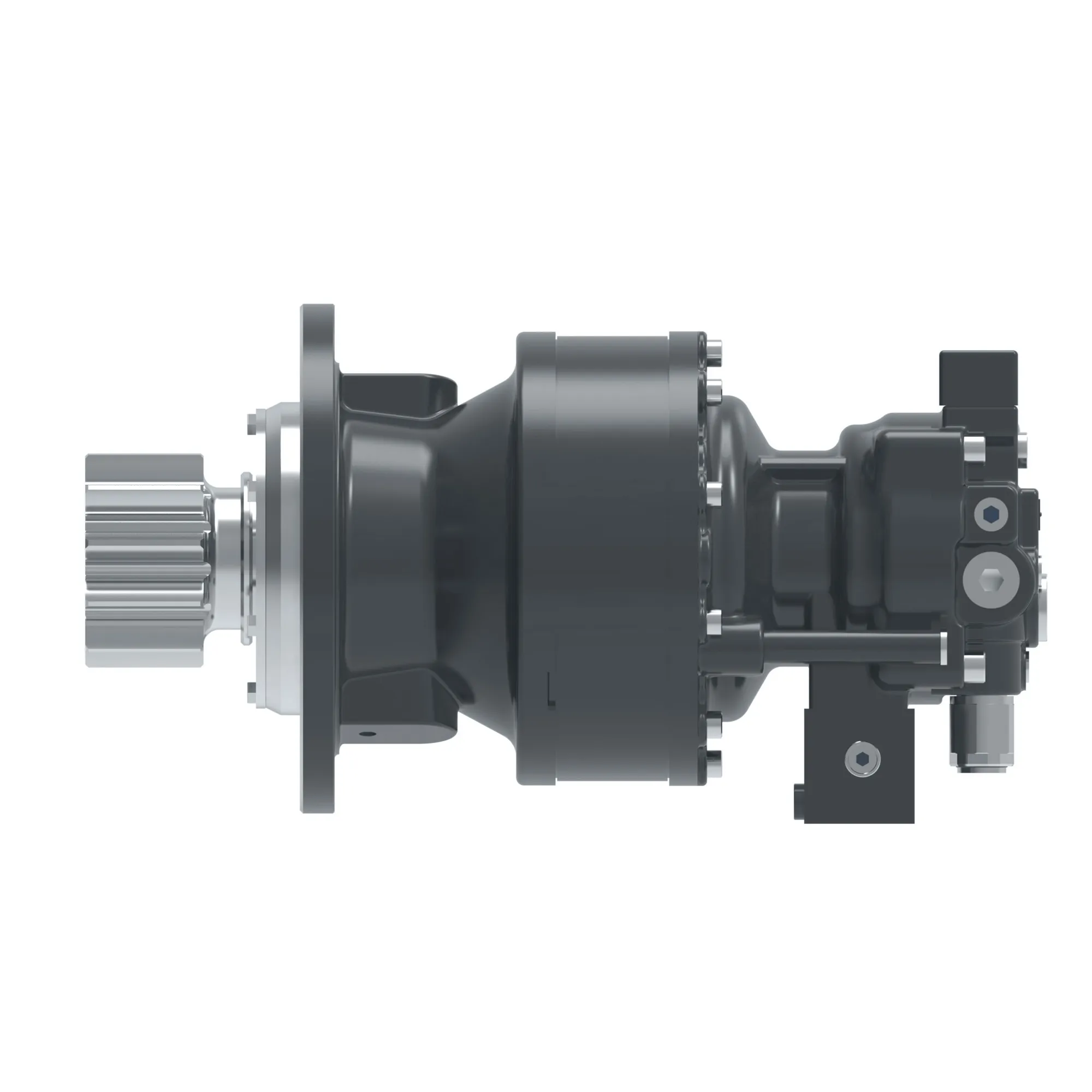

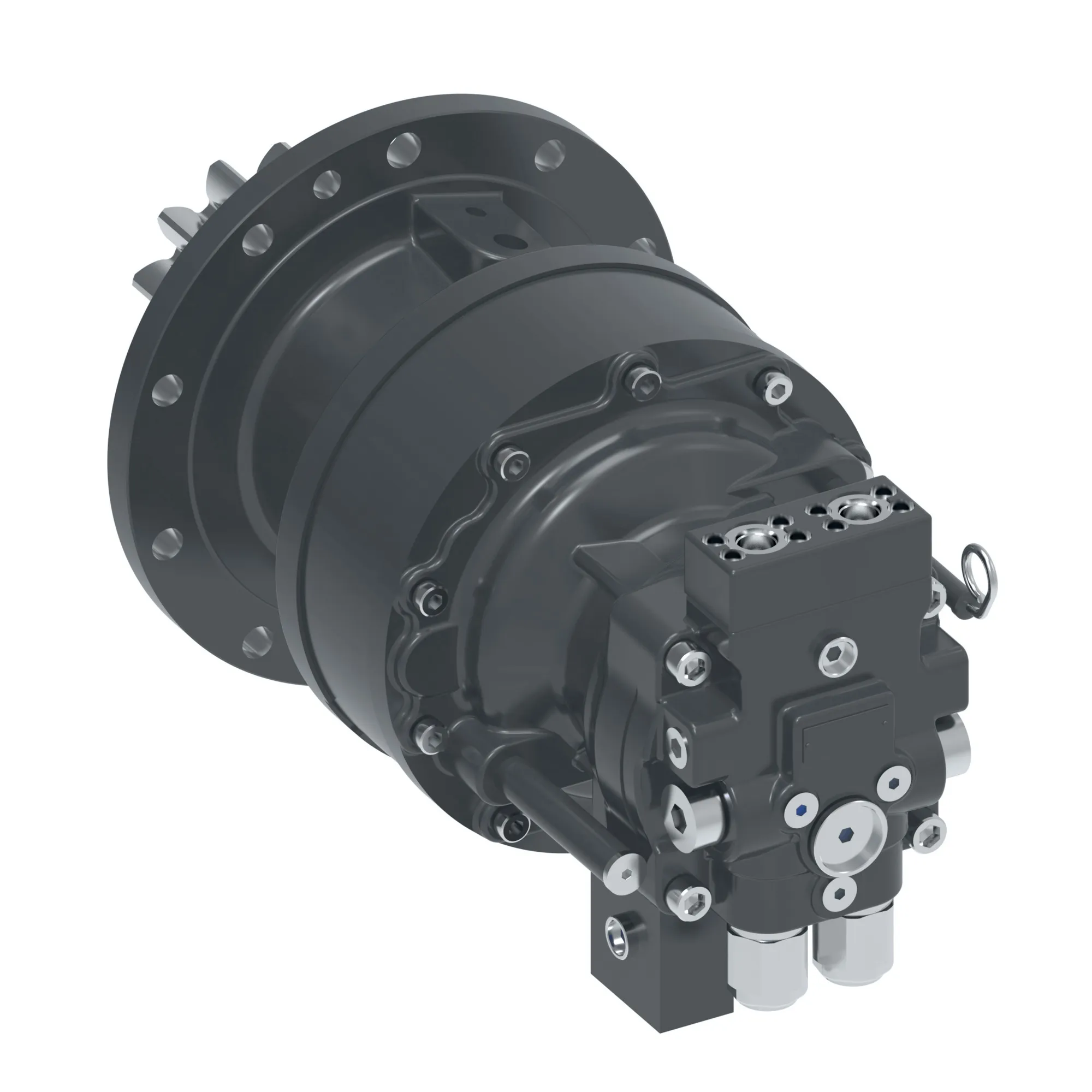

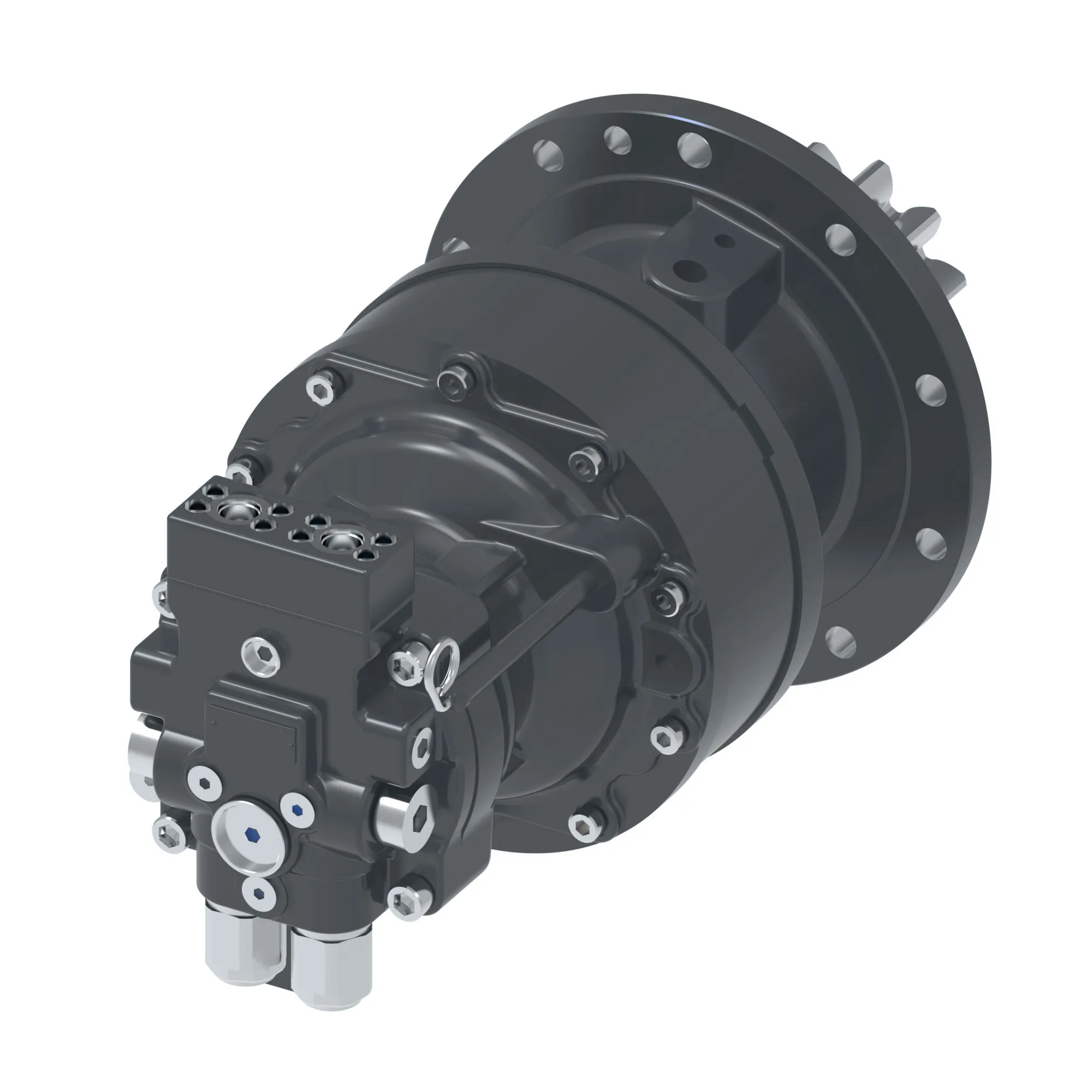

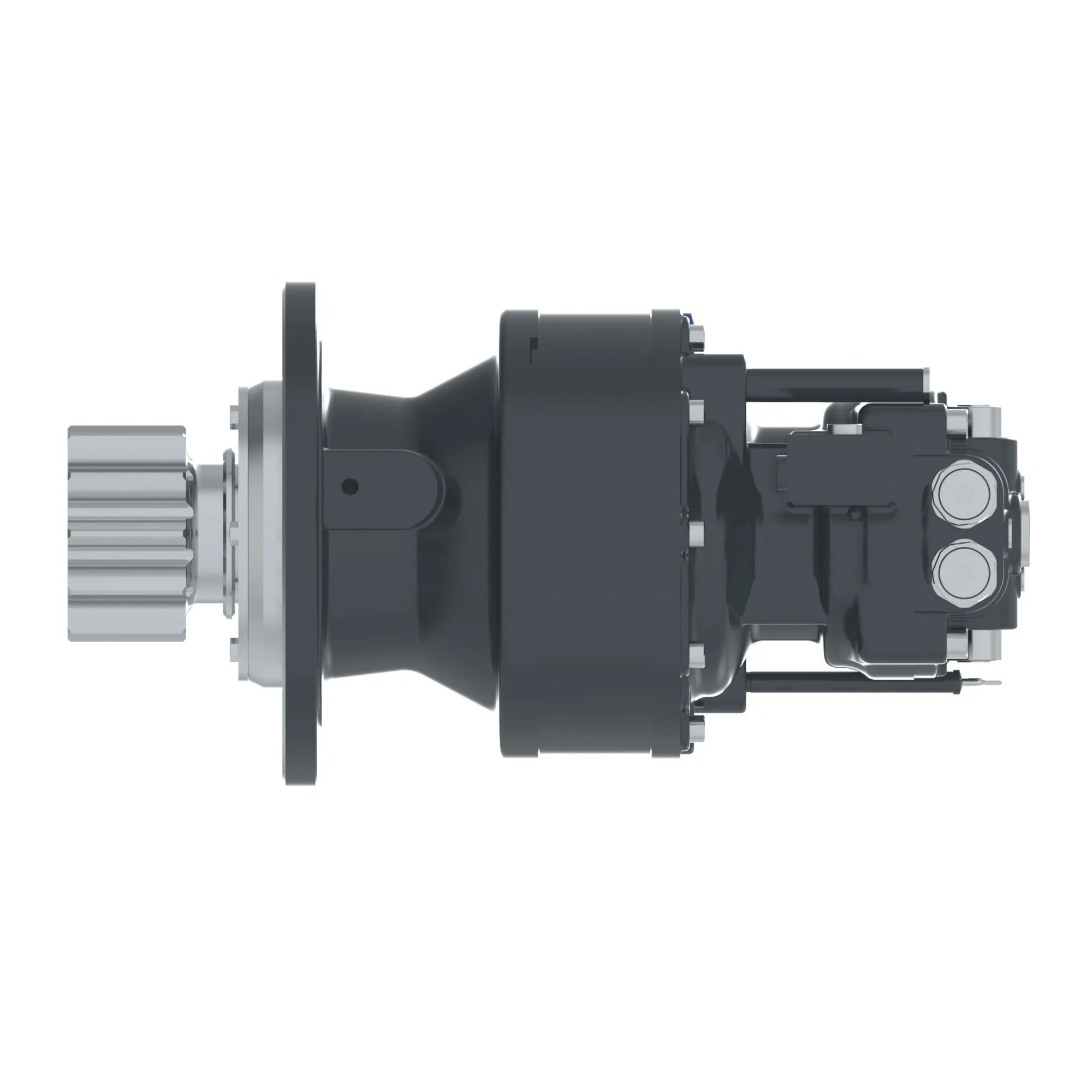

Danfoss (Drives) 11020267101
SM S55VII(401-00307B)(DIST) PRIMER – 11020267101
Request for Quote
Shipping & Delivery
-
Courier delivery
Our courier will deliver to the specified address
5-6 Days
From €20
-
DHL Courier delivery
DHL courier will deliver to the specified address
2-3 Days
From €40
-
Warranty 1 year
-
Free 30-Day returns
Description
SM S55VII(401-00307B)(DIST) PRIMER – 11020267101
Specification
| A B Main Port Size | BSPP 1/2 |
|---|---|
| Anti Reverse Valve And Setting | None |
| Application | Excavator |
| Brand | Danfoss |
| Danfoss Swing Type | Danfoss Swing Motor |
| Design Code | First version |
| Displacement | 29 cm3/r (1.76 in3/r) |
| Flow Rate Gpm | 10.57 |
| Flow Rate Lpm | 40.0 |
| Gear Ratio | None |
| Gearbox Input Shaft Spec | None |
| Gearbox Mounting With Vehicle | None |
| Gearbox Output Shaft Spec | None |
| Identification | Standard namplate |
| Maximum Output Speed Rpm | 139 |
| Motor Mounting | Standard |
| Motor Shaft Spec | Standard |
| Old Model Code | JMF029PS0102010100000B00A |
| Output Torque Lbf In | 876.2 |
| Output Torque Nm | 99.0 |
| Paint | Primer + yellow |
| Parking Brake And Setting | Standard |
| Product Height In | 303.000 |
| Product Height Mm | 7696.200 |
| Product Length In | 503.000 |
| Product Length Mm | 12776.200 |
| Product Width In | 303.000 |
| Product Width Mm | 7696.2 |
| Relief Valve And Setting | 220bar (3190 psi) 40 lpm (10.56 gpm) |
| Special Requirement | None |
| Timedelay And Setting | 4 bar (58 psi) |
| Working Pressure Bar | 216.0 |
| Working Pressure Psi | 3133 |
